EX4300-48T-AFI

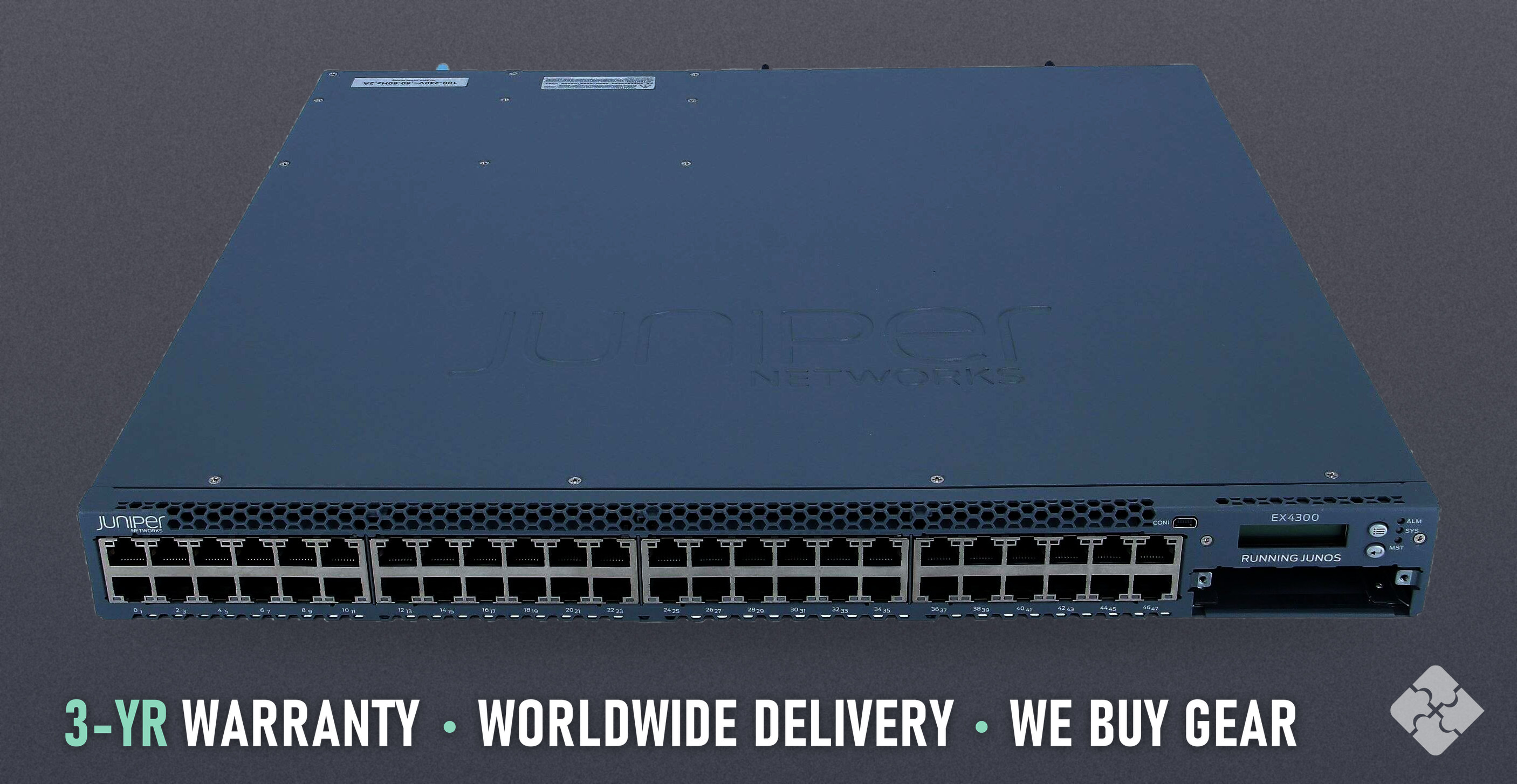

EX4300-48T-AFI Juniper EX4300 switch, 48x 1GbE RJ45 and 4x 40GbE QSFP+
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
EX4300-48T-AFI, in stock, ships worldwide.
$280
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- EX4300-48T-AFI
- Network Ports
- 48 × 1GbE
- Connectors
- RJ45, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper EX4300 (24P, 24T, 48P, 48T) | Juniper notice |
Questions about the Juniper EX4300 family
- What ports does the EX4300-48T-AFI have?
- It has 48 × 1GbE; uplinks: 4x 40GbE QSFP+. 52 data ports in all. Connectors: RJ45, QSFP+.
- What is the throughput of the EX4300-48T-AFI?
- Throughput is 496 Gbps switching capacity, 369 Mpps forwarding.
- Which way does the air flow on the EX4300-48T-AFI?
- Airflow is back-to-front (AFI).
- What power does the EX4300-48T-AFI use?
- It uses AC.
- How much rack space does the EX4300-48T-AFI take?
- It takes 1U of rack space.
- What software does the EX4300-48T-AFI run?
- It runs Junos OS.
- Is the Juniper EX4300 end of life?
- Juniper's EX Series hardware milestones page shows three notices for the models on this page. The 24- and 48-port T and P models, including the AFI, DC and TAA versions: end of life announced 24 June 2022, last order 31 March 2024, end of support 31 March 2029. The EX4300-32F and EX4300-32F-DC (TSB105633): last order 31 March 2026, end of support 31 March 2029. The EX4300-48MP (TSB109284, announced 29 June 2026): last order 29 December 2026, end of support 29 December 2031.
- What do AFI and AFO mean on an EX4300?
- Airflow direction. Juniper labels fans and power supplies AIR IN (AFI) for back-to-front airflow and AIR OUT (AFO) for front-to-back airflow. The EX4300-48T-AFI ships with AFI fan modules and power supply; the standard EX4300-48T ships AFO. Match the airflow to the hot and cold aisles of the rack it goes into.
- Can EX4300 switches be stacked, and with what?
- Up to 10 EX4300 switches form a Virtual Chassis. The built-in QSFP+ ports are set up as Virtual Chassis ports by default and can be reconfigured as network ports. An EX4300 can also be a line card member of a mixed Virtual Chassis with EX4600 switches, where the EX4600 takes the primary and backup roles.
- Which uplink modules fit the EX4300?
- The 24- and 48-port T and P models take the 4-port 10GbE SFP+ module EX-UM-4X4SFP. The EX4300-32F takes the 2-port 40GbE QSFP+ module EX-UM-2QSFP or the 8-port 10GbE SFP+ module EX-UM-8X8SFP. The EX4300-48MP takes the EX-UM-2QSFP-MR (two 40GbE or 100GbE ports) or the EX-UM-4SFPP-MR (four 1GbE or 10GbE ports). A switch listing does not include an uplink module unless it says so.
- What condition and warranty come with a Juniper EX4300 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
The Juniper EX4300-48T-AFI is a switch from the Juniper EX4300 family with 48 ports of 1GbE RJ45 and 4 ports of 40GbE QSFP+. It runs Junos OS, with back-to-front (AFI) airflow. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX4300-48T-AFI / EX4300 Series Switch, 48x 10/100/1000BASE-T Ports (non-PoE) + 4x 40GbE QSFP+ Uplinks, 350W AC PSU, Back-to-Front Airflow (Air In)
HOW IT DIFFERS
EX4300-48T-AFI has back-to-front (AFI) airflow and ships with AFI fan modules and power supply. EX4300-48T is the standard model with front-to-back (AFO) airflow. Both have 48 gigabit copper ports, 4 uplinks of 40GbE QSFP+, no PoE and 496 Gbps switching. Pick this one when the rack needs back-to-front airflow, and the sister when it needs front-to-back.
TECHNICAL DETAILS
Brand: Juniper Family: EX4300 Uplinks: 4x 40GbE QSFP+ Total ports: 52 Fastest port: 40GbE PoE: Non-PoE Operating system: Junos OS Rack units: 1U Airflow: Back-to-front (AFI) Power input: AC Throughput: 496 Gbps switching capacity, 369 Mpps forwarding Warranty: 3 years, Townsend Networks Returns: 30 days
WHAT'S INCLUDED
One (1) Juniper EX4300-48T-AFI. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX4300-48T-AFI was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
EX4300-48T-AFI has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
