EX4300-48T-DC

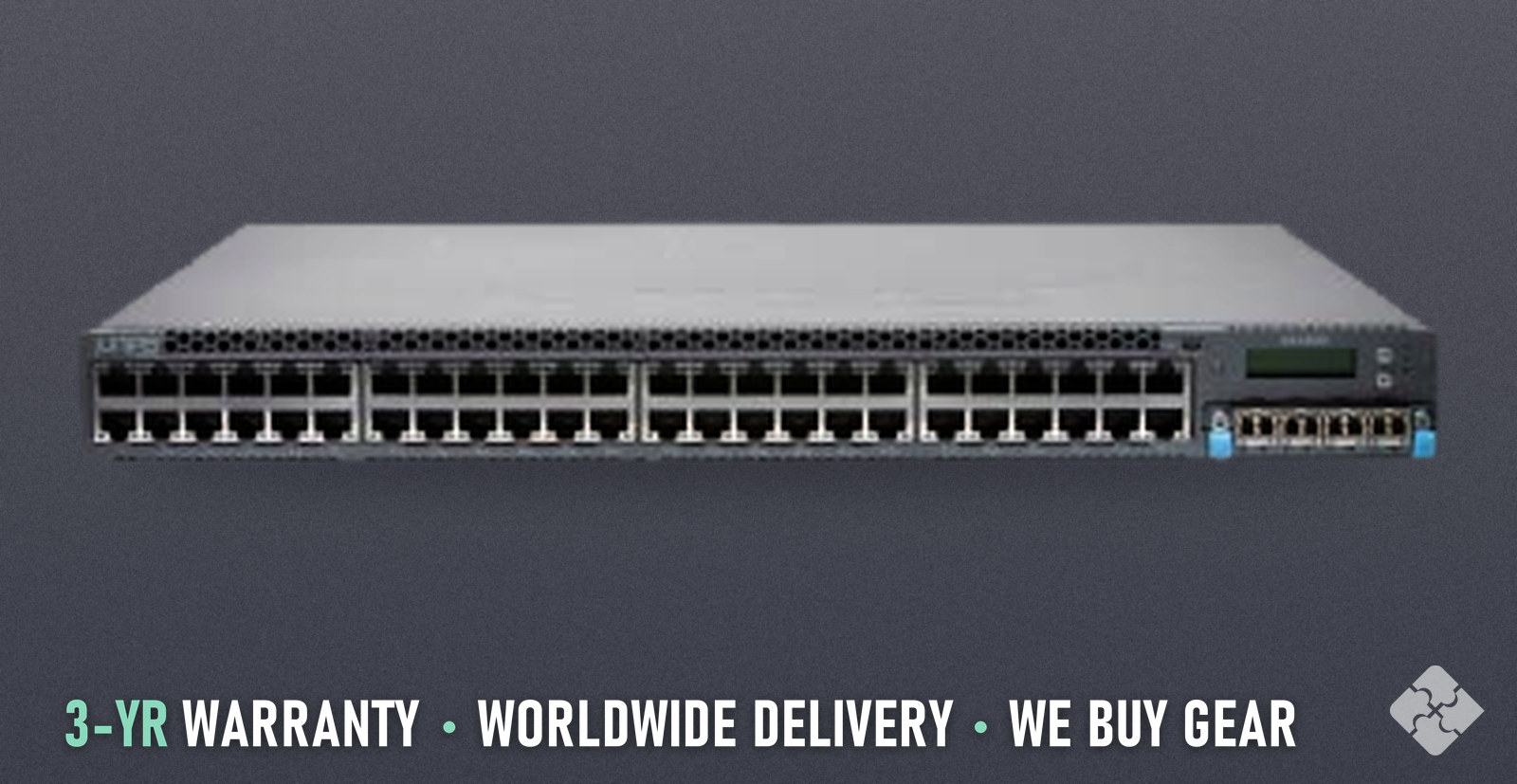

EX4300-48T-DC Juniper EX4300 switch, 48x 1GbE RJ45 and 4x 40GbE QSFP+
Used, tested & guaranteedIn stock
Condition: Used. Tested & Guaranteed
EX4300-48T-DC, in stock, ships worldwide.
$810
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- EX4300-48T-DC
- Network Ports
- 48 × 1GbE
- Connectors
- RJ45, QSFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper EX4300 (24P, 24T, 48P, 48T) | Juniper notice |
Questions about the Juniper EX4300 family
- What ports does the EX4300-48T-DC have?
- It has 48 × 1GbE; uplinks: 4x 40GbE QSFP+. 52 data ports in all. Connectors: RJ45, QSFP+.
- Which way does the air flow on the EX4300-48T-DC?
- Airflow is back-to-front.
- What power does the EX4300-48T-DC use?
- It uses DC.
- What are the size and weight of the EX4300-48T-DC?
- Weight: 13 lb (5.9 kg) with no power supply and no fan module installed.
- How much rack space does the EX4300-48T-DC take?
- It takes 1U of rack space.
- What software does the EX4300-48T-DC run?
- It runs Junos OS.
- Is the Juniper EX4300 end of life?
- Juniper's EX Series hardware milestones page shows three notices for the models on this page. The 24- and 48-port T and P models, including the AFI, DC and TAA versions: end of life announced 24 June 2022, last order 31 March 2024, end of support 31 March 2029. The EX4300-32F and EX4300-32F-DC (TSB105633): last order 31 March 2026, end of support 31 March 2029. The EX4300-48MP (TSB109284, announced 29 June 2026): last order 29 December 2026, end of support 29 December 2031.
- What do AFI and AFO mean on an EX4300?
- Airflow direction. Juniper labels fans and power supplies AIR IN (AFI) for back-to-front airflow and AIR OUT (AFO) for front-to-back airflow. The EX4300-48T-AFI ships with AFI fan modules and power supply; the standard EX4300-48T ships AFO. Match the airflow to the hot and cold aisles of the rack it goes into.
- Can EX4300 switches be stacked, and with what?
- Up to 10 EX4300 switches form a Virtual Chassis. The built-in QSFP+ ports are set up as Virtual Chassis ports by default and can be reconfigured as network ports. An EX4300 can also be a line card member of a mixed Virtual Chassis with EX4600 switches, where the EX4600 takes the primary and backup roles.
- Which uplink modules fit the EX4300?
- The 24- and 48-port T and P models take the 4-port 10GbE SFP+ module EX-UM-4X4SFP. The EX4300-32F takes the 2-port 40GbE QSFP+ module EX-UM-2QSFP or the 8-port 10GbE SFP+ module EX-UM-8X8SFP. The EX4300-48MP takes the EX-UM-2QSFP-MR (two 40GbE or 100GbE ports) or the EX-UM-4SFPP-MR (four 1GbE or 10GbE ports). A switch listing does not include an uplink module unless it says so.
- What condition and warranty come with a Juniper EX4300 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Juniper software licences and support contracts are not part of our warranty.
The Juniper EX4300-48T-DC is a switch from the Juniper EX4300 family with 48 ports of 1GbE RJ45 and 4 ports of 40GbE QSFP+. It runs Junos OS, with back-to-front airflow and DC power. This unit is used: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX4300-48T-DC / 48x 10/100/1000BASE-T + 4x 40GbE QSFP+ switch, 550W DC power supply, back-to-front airflow
HOW IT DIFFERS
EX4300-48T-DC takes DC power with a 550 W supply, and its sister, EX4300-48T, takes AC power with a 350 W supply. This page lists back-to-front airflow and the sister lists front-to-back. This one is used and the sister is refurbished. Pick this one for a rack on DC power.
TECHNICAL DETAILS
Brand: Juniper Family: EX4300 Uplinks: 4x 40GbE QSFP+ Total ports: 52 Fastest port: 40GbE PoE: Non-PoE Operating system: Junos OS Rack units: 1U Airflow: Back-to-front Power input: DC Weight: 13 lb (5.9 kg) with no power supply and no fan module installed Mounting: standard 19-in. two-post or four-post rack, or 19-in. enclosed cabinet Fans: Two fan modules; each with an AIR OUT (AFO) label Power supplies: A 550 W DC power supply with the AIR OUT (AFO) label Stacking: up to 10 EX4300 switches in a Virtual Chassis Warranty: 3 years, Townsend Networks Returns: 30 days
MAKER'S DOCUMENT
WHAT'S INCLUDED
One (1) Juniper EX4300-48T-DC. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed EX4300-48T-DC was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
EX4300-48T-DC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
