What ports does the ICX7750-48F have?

It has 48 × 1/10GbE; uplinks: 6x 40GbE QSFP+. 54 data ports in all. Connectors: SFP+, QSFP+.

What is the throughput of the ICX7750-48F?

Throughput is 1.92 Tbps switching capacity, 1.44 Bpps forwarding.

What software does the ICX7750-48F run?

It runs RUCKUS FastIron, Layer 3 (managed).

ICX7750-48F

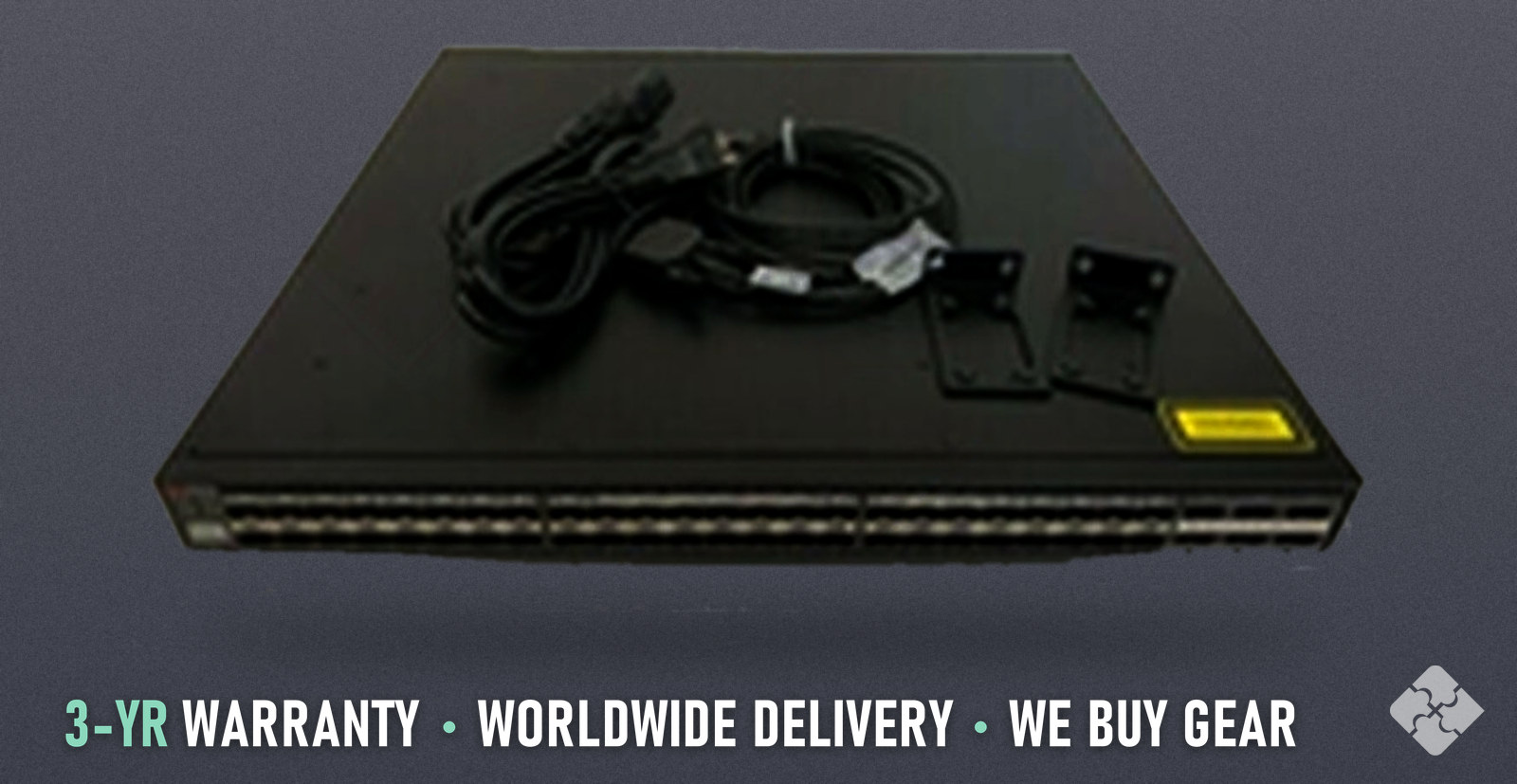

ICX7750-48F Brocade ICX7750 switch, 48x 1/10GbE SFP+ and 6x 10/40GbE QSFP+

Name: ICX7750-48F Brocade ICX7750 switch, 48x 1/10GbE SFP+ and 6x 10/40GbE QSFP+
Brand: Brocade
SKU: ICX7750-48F
Price: 885.00 USD
Availability: InStock

Refurbished, tested & guaranteedIn stock

Condition: Refurbished. Tested & Guaranteed

ICX7750-48F, in stock, ships worldwide.

$885

Orders placed by 12pm ship the same day.

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: ICX7750-48F
Network Ports: 48 × 1/10GbE
Connectors: SFP+, QSFP+
Type: Switch
Condition: Refurbished, tested & guaranteed

Warranty terms·Testing process

Questions and answers

What ports does the ICX7750-48F have?: It has 48 × 1/10GbE; uplinks: 6x 40GbE QSFP+. 54 data ports in all. Connectors: SFP+, QSFP+.
What is the throughput of the ICX7750-48F?: Throughput is 1.92 Tbps switching capacity, 1.44 Bpps forwarding.
Which way does the air flow on the ICX7750-48F?: Airflow is reversible; direction is set by the power supplies and fans fitted (none included).
How much rack space does the ICX7750-48F take?: It takes 1U of rack space.
What software does the ICX7750-48F run?: It runs RUCKUS FastIron, Layer 3 (managed).

The Brocade ICX7750-48F is a switch from the Brocade ICX7750 family with 48 ports of 1/10GbE SFP+ and 6 ports of 10/40GbE QSFP+. It is a Layer 3 managed platform that runs RUCKUS FastIron. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Ruckus ICX7750-48F / 48x 10GbE SFP+ and 6x 40GbE QSFP+ switch, 1.92 Tbps, stacks to 12 units - base Layer 3 feature set, power supplies and fans ordered separately

TECHNICAL DETAILS

Brand: Brocade Family: ICX7750 Uplinks: 6x 40GbE QSFP+ Total ports: 54 Fastest port: 40GbE Layer: Layer 3 (managed) Operating system: RUCKUS FastIron Rack units: 1U Airflow: Reversible; direction is set by the power supplies and fans fitted (none included) Throughput: 1.92 Tbps switching capacity, 1.44 Bpps forwarding Power supplies: Redundant Power Option: Yes; Hot Swap Internal Power Supplies & Fans: Yes Stacking: 12 switches per stack; 5760 Gb/s aggregate stack bandwidth (maximum) Certifications: ROHS: Compliant/Exempted End of sale: Discontinued on December 31, 2023 Warranty: 3 years, Townsend Networks Returns: 30 days
