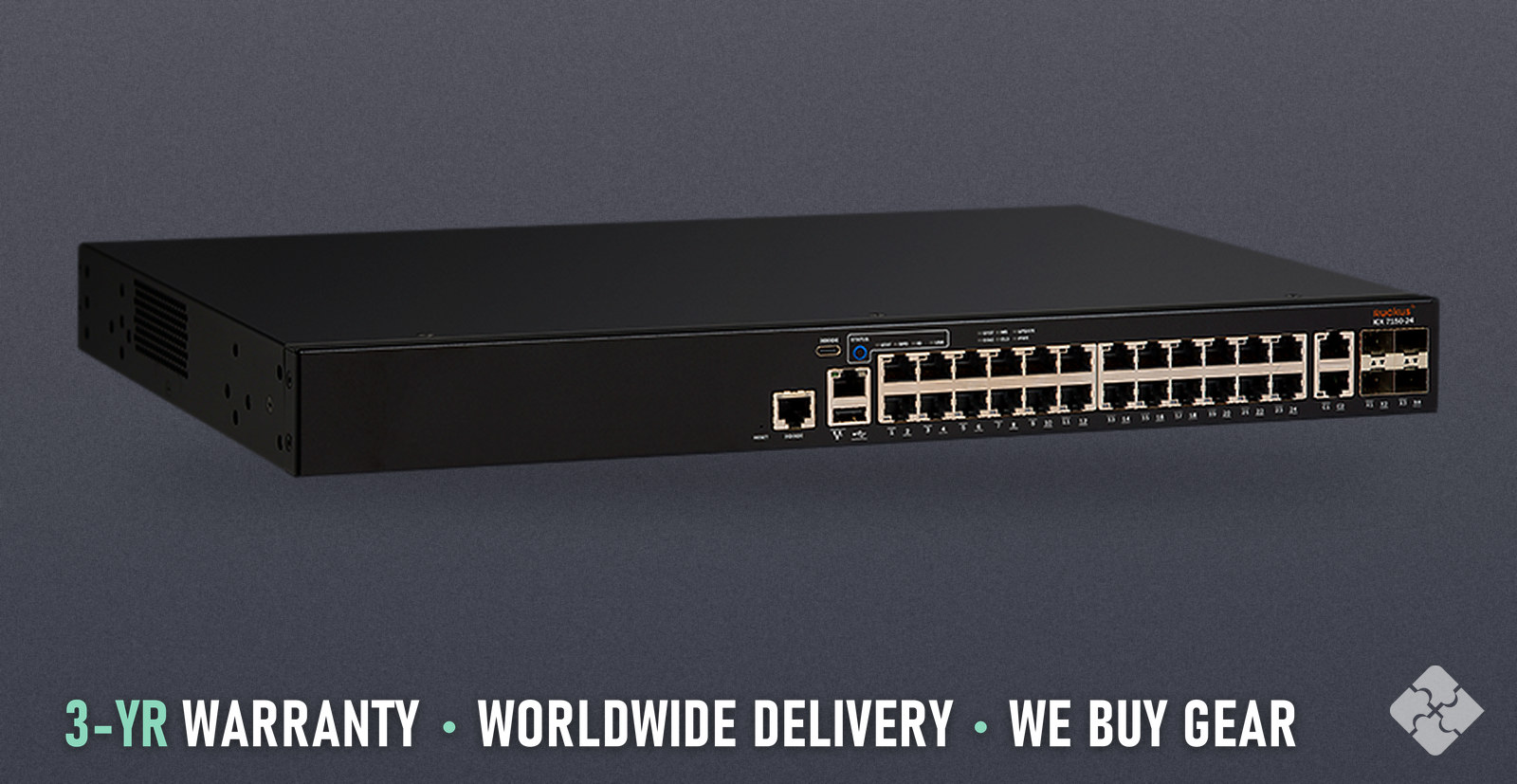

ICX7150-24-4X1G Brocade ICX7150 switch, 24x 1GbE RJ45 and 2x 1GbE RJ45

End of sale and support

Questions about the ICX7150 family

What do the ICX 7150 part number suffixes mean?

From Ruckus's ordering information: -4X1G and -2X1G models have 1GbE SFP uplinks that a Ruckus licence upgrades to 10GbE, with basic Layer 3 (static routing and RIP). -2X10G models have two 1GbE SFP and two 10GbE SFP+ stacking and uplink ports, upgradable to four 10GbE by licence, also with basic Layer 3. -4X10GR and -2X10GR models have four (or, on the compact models, two) 10GbE SFP+ stacking and uplink ports and Layer 3 features including OSPF, VRRP, PIM and PBR. On the 48ZP, -E2X10G has six 1GbE SFP and two 10GbE SFP+ ports, upgradable to eight 10GbE by licence, and the eight-port model has eight 10GbE SFP+ ports with Layer 3 features.

Is the Ruckus ICX 7150 end of sale?

Yes. Ruckus ended sale of the ICX7150-24, -24P, -48, -48P and -48PF on 10 March 2025, and of the ICX7150-C12P, -C10ZP and -48ZP on 15 January 2026. Ruckus's support site now notes that all ICX 7150 models are end of sale.

How many ICX 7150 switches can be stacked?

Up to 12 in one stack, up to 10 km apart, over the SFP+ stacking and uplink ports, with no stacking module needed. Ruckus says all ICX 7150 models stack together, including the multigigabit 48ZP and C10ZP; the 8-port ICX 7150-C08P is the exception and is not sold here. The 48ZP can use four of its 10GbE ports for stacking and the other four for uplinks.

Which ICX 7150 models run silently?

The compact C12P and C10ZP and the non-PoE ICX 7150-24 and ICX 7150-48 have a fanless design. The ICX 7150-24P and ICX 7150-48P have a silent mode that runs with the fan off and a 150 W PoE budget.

How much PoE does each ICX 7150 deliver?

Per Ruckus's data sheet: C12P 124 W, C10ZP 240 W, 24P and 48P 370 W, 48PF 740 W. The 48ZP ships with one 920 W power supply and a 740 W PoE budget, and reaches 1,480 W with two power supplies.

What condition and warranty come with a Ruckus ICX 7150 switch from Townsend?

Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Ruckus software licences and support contracts are not part of our warranty.
