Ruckus ICX 7150 Switches
The RUCKUS ICX 7150 are stackable switches. The 48 port models give 180 Gbps of switching capacity and 134 Mpps, the 24 port models 132 Gbps and 98 Mpps, and the compact 12 port ICX7150-C12P 68 Gbps. Up to 12 switches join in a stack over the 10 GbE SFP+ ports. The P models carry a 370 W PoE budget and the PF models 740 W, and models such as the ICX7150-48-2X10G are fanless.
Sources: RUCKUS ICX 7150 Switch Data Sheet, RUCKUS ICX 7150-48P
Selling Ruckus ICX7150 hardware? Get an offer
Ruckus ICX7150 facts from the maker
- 48 port models
- 48 x 10/100/1000 RJ45 plus uplinks; 180 Gbps; 134 Mpps Source: RUCKUS ICX 7150 Switch Data Sheet
- 24 port models
- 24 x 10/100/1000 RJ45 plus uplinks; 132 Gbps; 98 Mpps Source: RUCKUS ICX 7150 Switch Data Sheet
- ICX7150-C12P
- 12 x 10/100/1000 PoE+; 124 W PoE budget; 68 Gbps; 51 Mpps Source: RUCKUS ICX 7150 Switch Data Sheet
- ICX7150-48ZP
- Z-Series; 304 Gbps; 226 Mpps; one 920 W AC power supply Source: RUCKUS ICX 7150-48ZP (Z-Series) Data Sheet
- PoE budget
- 370 W (P models); 740 W (PF models) Source: RUCKUS ICX 7150 Switch Data Sheet
- Stacking
- Up to 12 switches per stack; 480 Gb/s aggregate stack bandwidth (maximum) Source: RUCKUS ICX 7150-48P
- Latency (48 port)
- 0.989 microseconds at 10GE, 2.571 microseconds at 1GE, 64 byte packets Source: RUCKUS ICX 7150 Switch Data Sheet
- End of sale
- Discontinued January 15, 2026 (ICX7150-48P-4X10GR, ICX7150-C10ZP-2X10GR) Sources: RUCKUS ICX 7150-48P, RUCKUS ICX 7150-C10ZP
Updated
Guides on the Ruckus ICX7150
Rangeto
Ruckus ICX 7150 Switches in the catalog
ICX7150-48P-4X10GR Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE RJ45 and 4x 1/10GbE SFP+
In stock
$1,775Ships same day
ICX7150-48ZP-E8X10G Brocade Switch, Refurbished, 48x 1GbE PoE+ RJ45 (16 × 2.5GbE) and 8x 10GbE SFP+
In stock
$1,225Ships same day
ICX7150-48-4X10GR Brocade Switch, AC Power, Refurbished, 48x 1GbE RJ45 and 4x 10GbE SFP+
In stock
$1,185Ships same day
ICX7150-24P-4X10GR Brocade Switch, AC Power, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 10GbE SFP+
In stock
$985Ships same day
ICX7150-48PF-4X1G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 1GbE RJ45
In stock
$985Ships same day
ICX7150-48ZP-E2X10G Brocade Switch, Refurbished, 48x 1GbE PoE+ RJ45 (16 × 2.5GbE) and 2x 10GbE SFP+
In stock
$885Ships same day
ICX7150-48P-2X10G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 1/10GbE SFP+
In stock
$740Ships same day
ICX7150-48PF-4X10GR Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 4x 10GbE SFP+
In stock
$630Ships same day
ICX7150-24P-2X10G Brocade Switch, AC Power, Refurbished, 24x 1GbE PoE+ RJ45 and 2x 10GbE SFP+
In stock
$545Ships same day

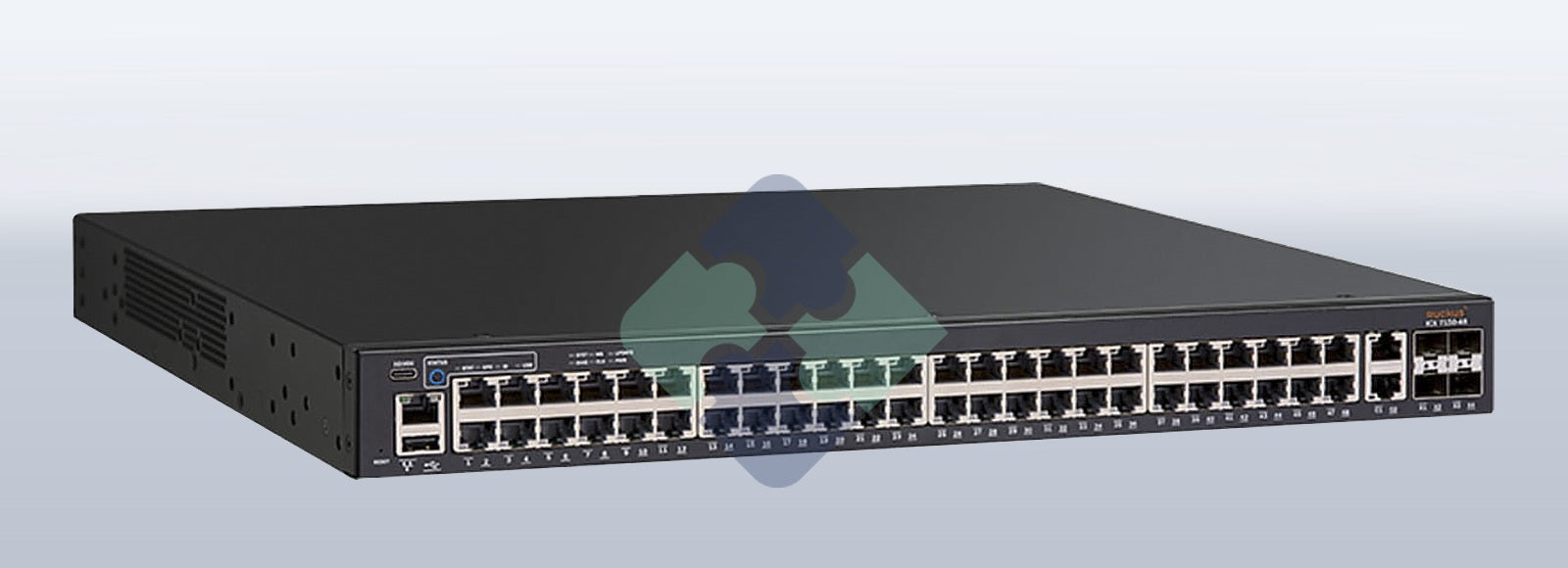

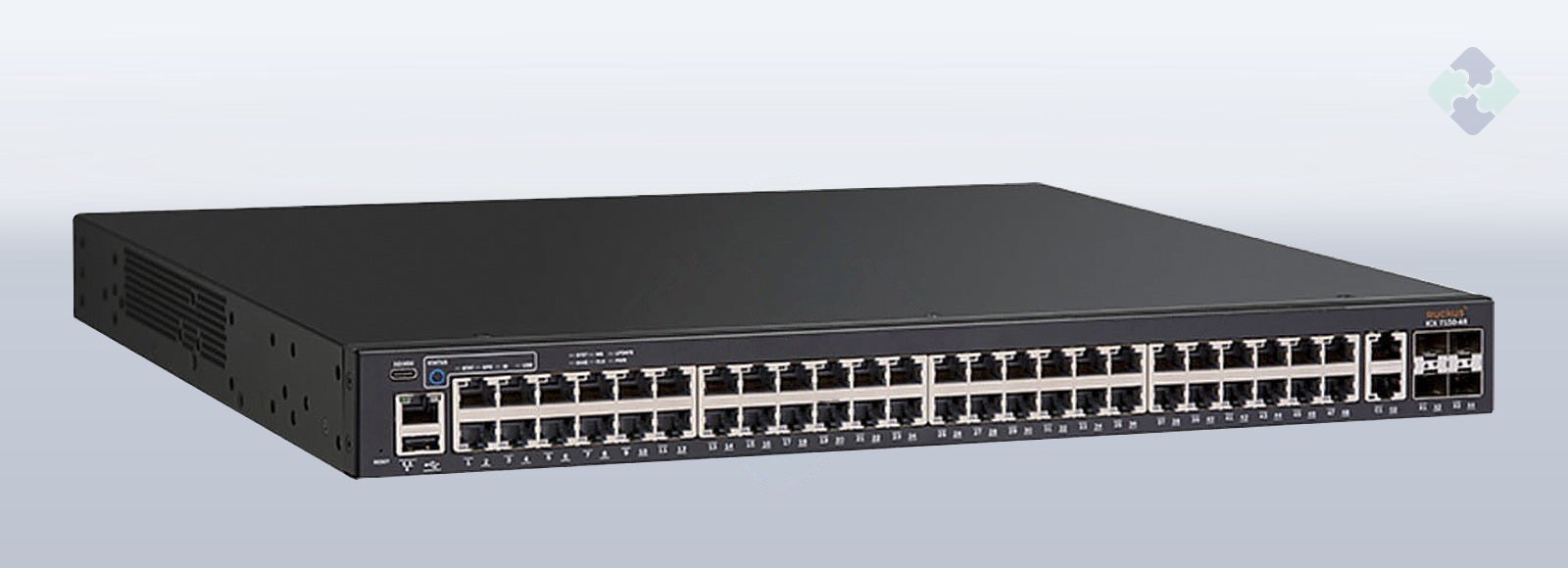

ICX7150-48-4X1G Brocade Switch, AC Power, Refurbished, 48x 1GbE RJ45 and 2x 1GbE RJ45
In stock
$495Ships same day

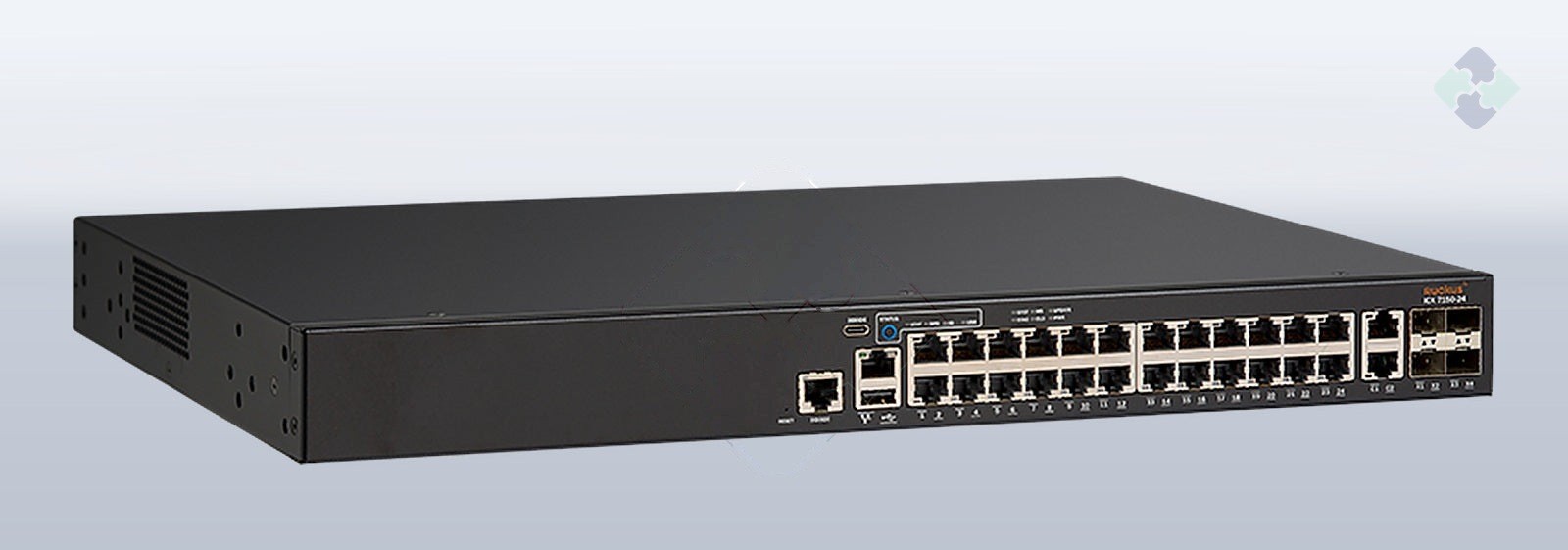

ICX7150-24-4X1G Brocade Switch, AC Power, Refurbished, 24x 1GbE RJ45 and 2x 1GbE RJ45
In stock
$445Ships same day
ICX7150-48PF-2X10G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 10GbE SFP+
In stock
$285Ships same day
ICX7150-48P-4X1G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 1GbE RJ45
In stock
$265Ships same day

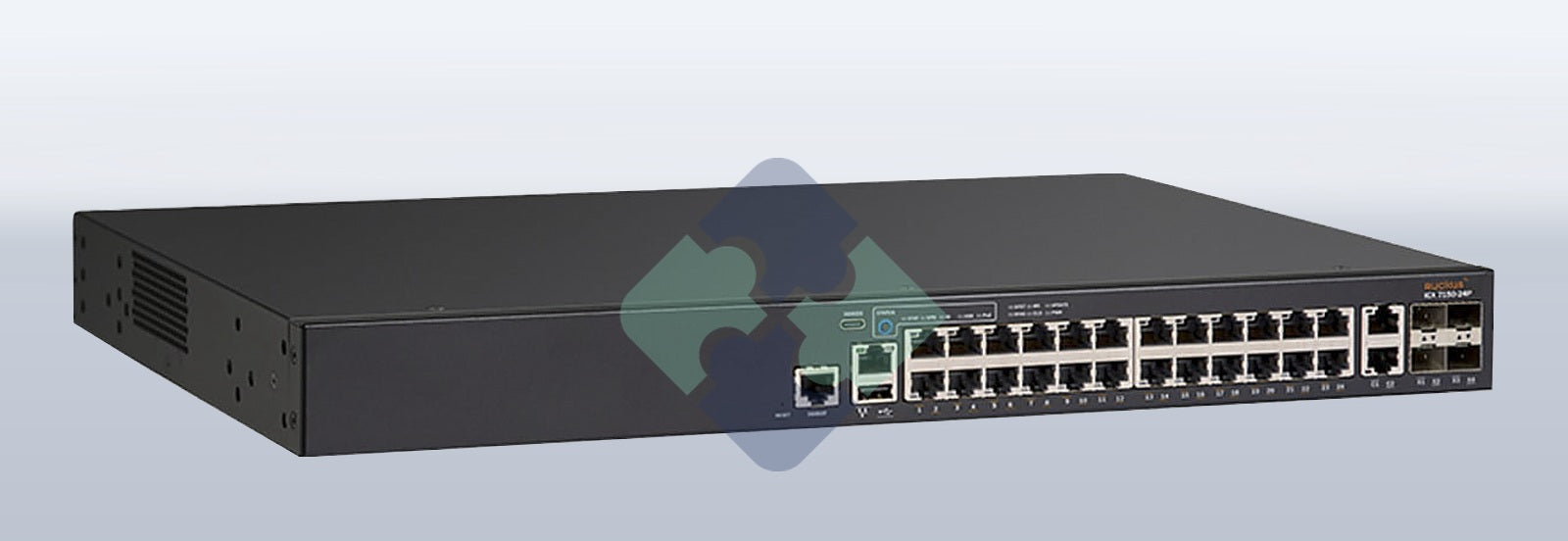

ICX7150-24P-4X1G Brocade Switch, AC Power, Refurbished, 24x 1GbE PoE+ RJ45 and 2x 1GbE RJ45
In stock
$245Ships same day
ICX7150-C12P-2X10GR Brocade Switch, AC Power, Refurbished, 12x 1GbE PoE+ RJ45 and 2x 10GbE SFP+
In stock
$170Ships same day

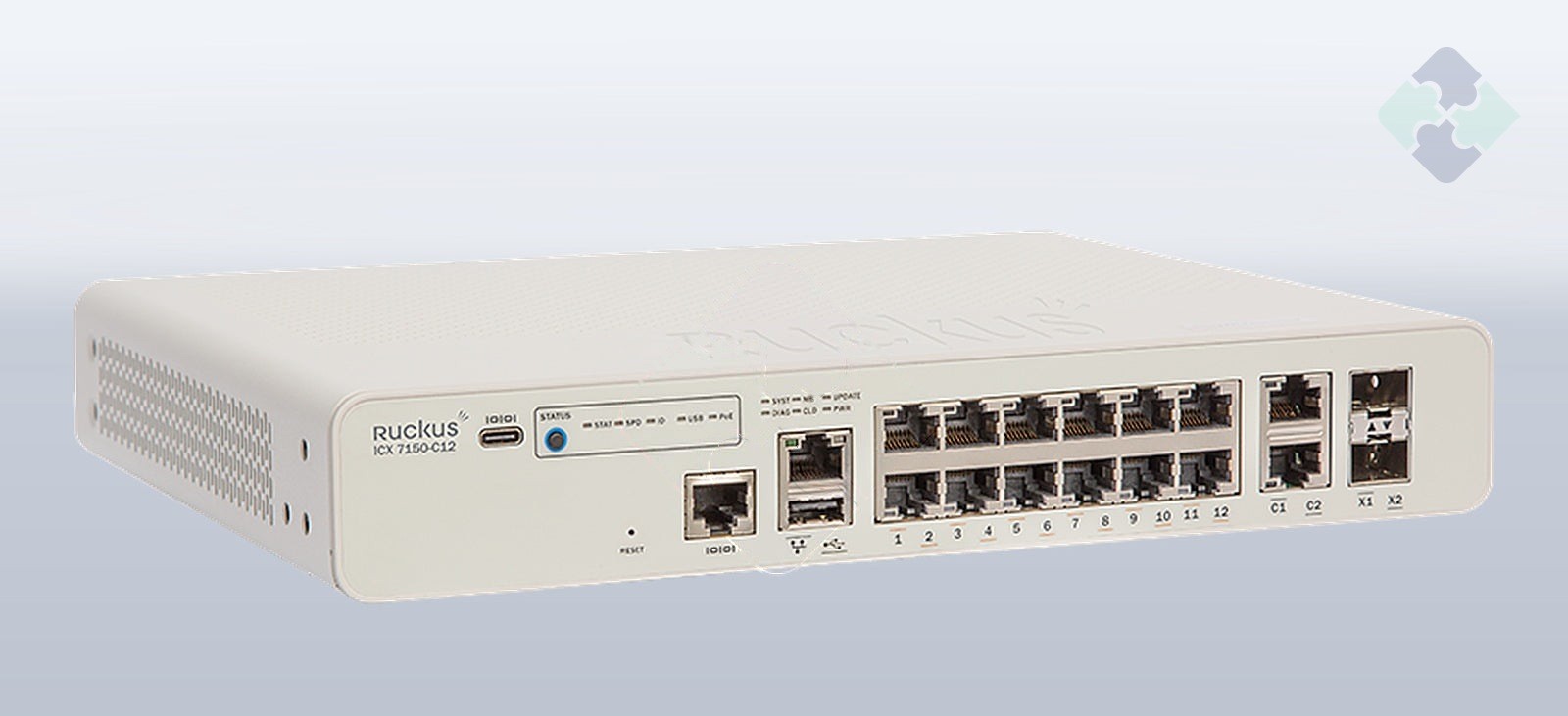

ICX7150-C12P-2X1G Brocade Switch, AC Power, Refurbished, 12x 1GbE PoE+ RJ45 and 2x 1GbE RJ45
In stock
$105Ships same day

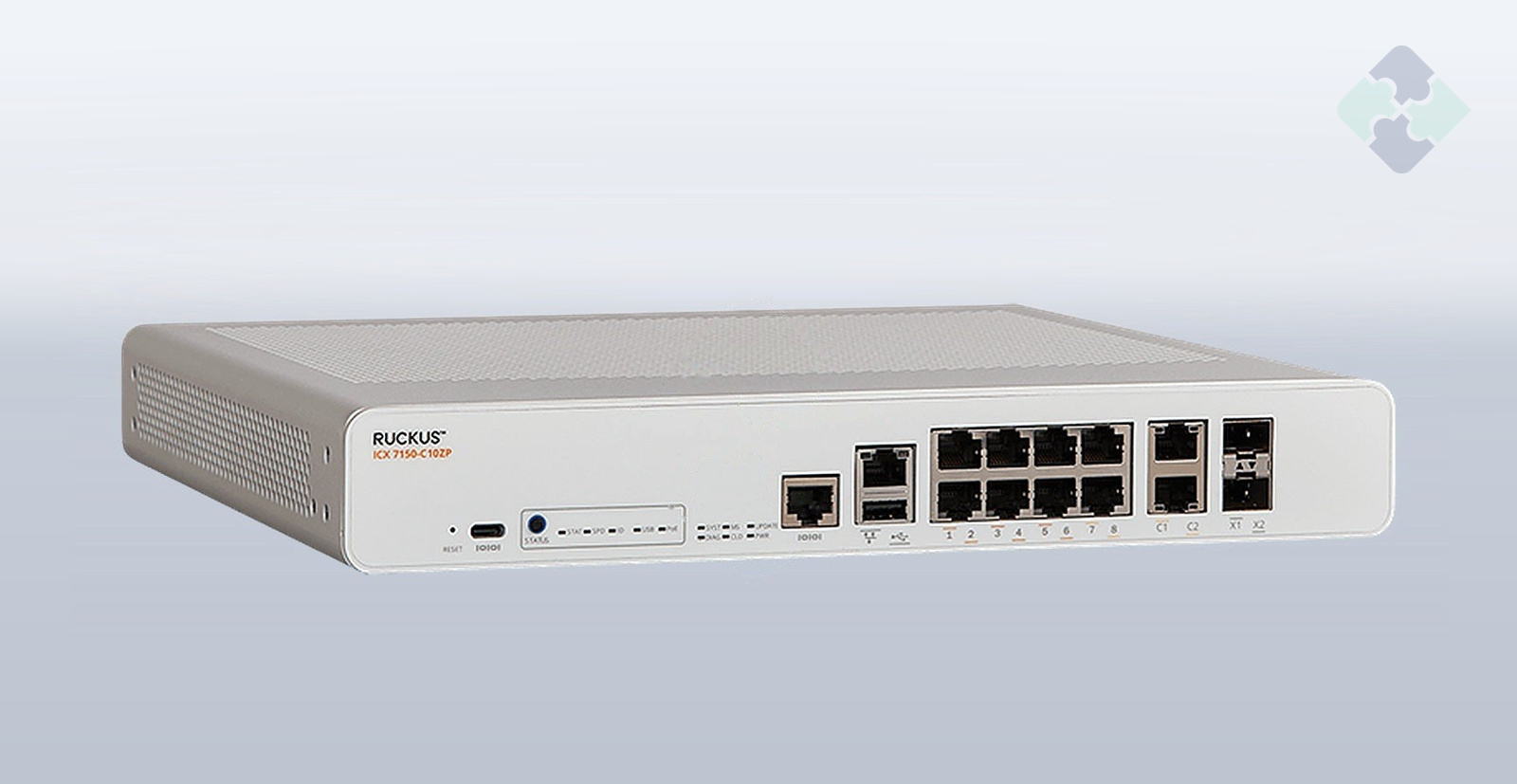

ICX7150-C10ZP-2X10GR Brocade Switch, 8x 2.5GbE PoE+ RJ45, 2x 10GbE SFP+ and 2x 10GbE PoH RJ45
Used, tested & guaranteed
In stock
$2,600Ships same day
Ruckus ICX7150 part numbers
| Part number | Ports | Airflow | Power | Condition | End of sale | Price | Stock |
|---|---|---|---|---|---|---|---|
| ICX7150-48P-4X10GR | 48 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $1,775 | In stock | ||
| ICX7150-48ZP-E8X10G | 48 × 1GbE (16 × 2.5GbE) | Front-to-back | Refurbished, tested & guaranteed | $1,225 | In stock | ||
| ICX7150-48-4X10GR | 48 × 1GbE | Closed airflow; 0 CFM | Integrated AC power supply for system and PoE power | Refurbished, tested & guaranteed | $1,185 | In stock | |
| ICX7150-24P-4X10GR | 24 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $985 | In stock | ||
| ICX7150-48PF-4X1G | 48 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $985 | In stock | ||
| ICX7150-48ZP-E2X10G | 48 × 1GbE (16 × 2.5GbE) | Front-to-back | 1x 920 W AC power supply | Refurbished, tested & guaranteed | $885 | In stock | |
| ICX7150-48P-2X10G | 48 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $740 | In stock | ||
| ICX7150-48PF-4X10GR | 48 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $630 | In stock | ||
| ICX7150-24P-2X10G | 24 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $545 | In stock | ||
| ICX7150-48-4X1G | 48 × 1GbE | Refurbished, tested & guaranteed | $495 | In stock | |||
| ICX7150-24-4X1G | 24 × 1GbE | Refurbished, tested & guaranteed | $445 | In stock | |||
| ICX7150-48PF-2X10G | 48 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $285 | In stock | ||
| ICX7150-48P-4X1G | 48 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $265 | In stock | ||
| ICX7150-24P-4X1G | 24 × 1GbE | Side-to-back | Refurbished, tested & guaranteed | $245 | In stock | ||
| ICX7150-C12P-2X10GR | 12 × 1GbE | Refurbished, tested & guaranteed | $170 | In stock | |||
| ICX7150-C12P-2X1G | 12 × 1GbE | Refurbished, tested & guaranteed | $105 | In stock | |||
| ICX7150-C10ZP-2X10GR | 8 × 2.5GbE | Reversible airflow option: No | Used, tested & guaranteed | $2,600 | In stock |
End of sale and support
| Model | Announced | End of sale | Notice |
|---|---|---|---|
| Ruckus ICX 7150 (24, 24P, 48, 48P, 48PF) | Ruckus notice | ||
| Ruckus ICX 7150 (C12P, C10ZP, 48ZP) | Ruckus notice |
Questions about the Ruckus ICX7150 family
- What do 4X1G, 2X10G and 4X10GR mean in an ICX 7150 part number?
- They name the uplinks. 4X1G models have 4 one-gigabit SFP uplinks that a license upgrades to 10 GbE; 2X10G models have 2 10 GbE SFP+ ports that a license raises to 4; 4X10GR models have 4 10 GbE SFP+ ports and the Layer 3 features OSPF, VRRP, PIM and PBR.Source: RUCKUS ICX 7150 Switch Data Sheet
- How many ICX 7150 switches can be stacked?
- Up to 12 per stack.Source: RUCKUS ICX 7150-48P
- What replaced the ICX 7150?
- RUCKUS lists the ICX 8200 as the replacement for discontinued ICX 7150 models such as the ICX7150-48P-4X10GR.Source: RUCKUS ICX 7150-48P
