What ports does the ICX8200-24P have?

It has 24 × 1GbE; uplinks: 4x 25GbE SFP28. 28 data ports in all. Connectors: RJ45, SFP28.

What is the throughput of the ICX8200-24P?

Throughput is 248 Gbps switching capacity, 184 Mpps forwarding.

Which way does the air flow on the ICX8200-24P?

Airflow is fanless Mode.*** Front and side to back.

What power does the ICX8200-24P use?

It uses PoE budget 370 W, 802.3at PoE+.

ICX8200-24P

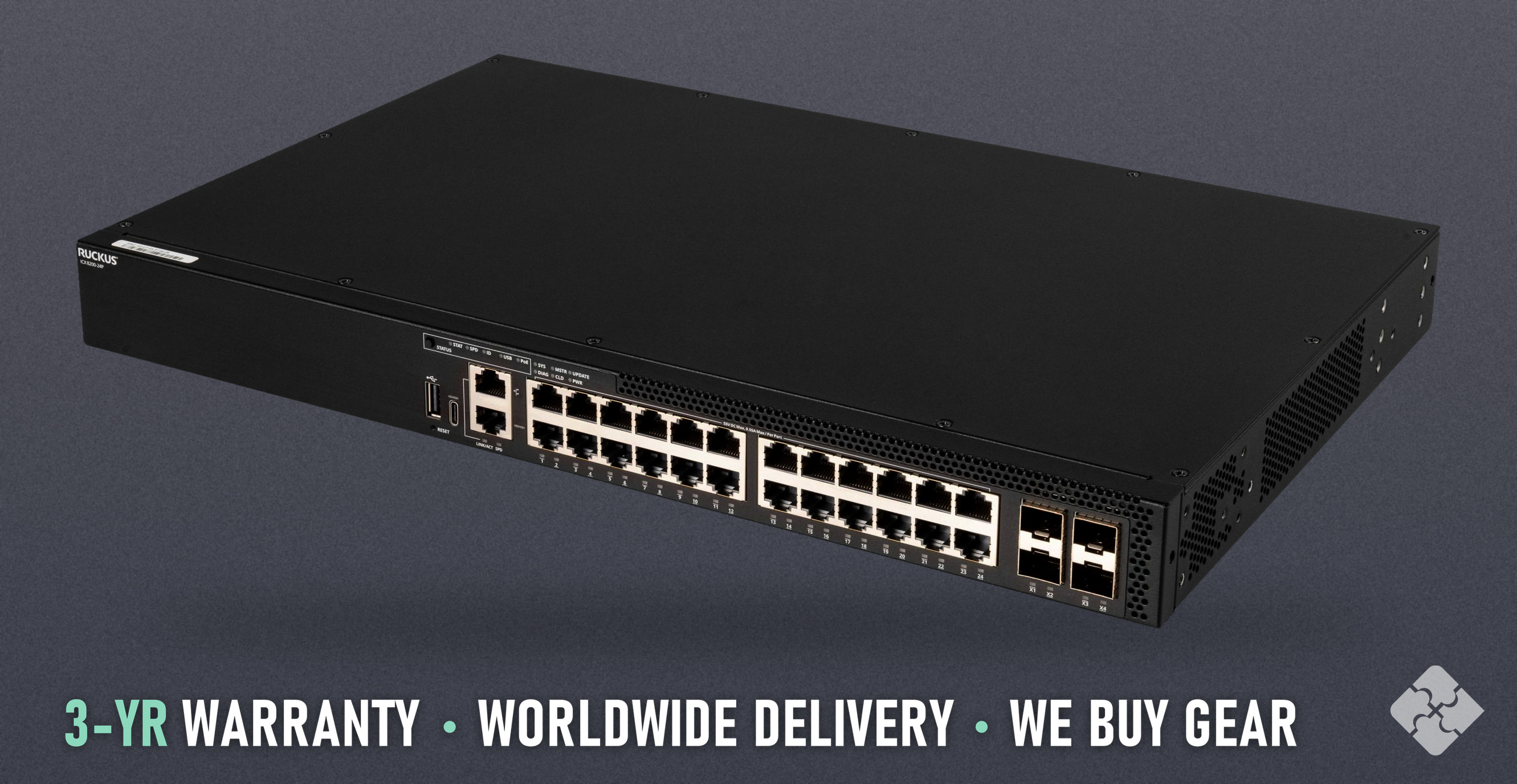

ICX8200-24P Ruckus ICX8200 switch, 24x 1GbE PoE+ RJ45 and 4x 1/10/25GbE SFP28

Name: ICX8200-24P Ruckus ICX8200 switch, 24x 1GbE PoE+ RJ45 and 4x 1/10/25GbE SFP28
Brand: Ruckus
SKU: ICX8200-24P
Price: 1880.00 USD
Availability: InStock

New, open boxIn stock

Condition: New Open Box

ICX8200-24P, in stock, ships worldwide.

$1,880

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: ICX8200-24P
Network Ports: 24 × 1GbE
Connectors: RJ45, SFP28
Type: Switch
Condition: New, open box

Warranty terms·Testing process

Questions and answers

What ports does the ICX8200-24P have?: It has 24 × 1GbE; uplinks: 4x 25GbE SFP28. 28 data ports in all. Connectors: RJ45, SFP28.
What is the throughput of the ICX8200-24P?: Throughput is 248 Gbps switching capacity, 184 Mpps forwarding.
Which way does the air flow on the ICX8200-24P?: Airflow is fanless Mode.*** Front and side to back.
What power does the ICX8200-24P use?: It uses PoE budget 370 W, 802.3at PoE+.
What are the size and weight of the ICX8200-24P?: Dimensions: 4.40 cm (1.73 in) x 44.00 cm (17.32 in) x 28.00 cm (11.02 in). Weight: 4.34 kg 9.57 lb.
What software does the ICX8200-24P run?: It runs RUCKUS FastIron.

The Ruckus ICX8200-24P is a switch from the Ruckus ICX8200 family with 24 ports of 1GbE PoE+ RJ45 and 4 ports of 1/10/25GbE SFP28. It runs RUCKUS FastIron. This unit is new, open box: unused, in its original packaging. One switch per order, with a rack-mount kit and the power cable(s) to match.

24x10/100/1000 Mbps PoE+ ports, 4x25 GbE SFP28

TECHNICAL DETAILS

Brand: Ruckus Family: ICX8200 Uplinks: 4x 25GbE SFP28 Total ports: 28 Fastest port: 25GbE Management ports: RJ45 Ethernet port (For out of band network management): Yes PoE: PoE PoE standard: 802.3at PoE+ PoE budget: 370 W Operating system: RUCKUS FastIron Airflow: Fanless Mode.*** Front and side to back Throughput: 248 Gbps switching capacity, 184 Mpps forwarding Dimensions: 4.40 cm (1.73 in) x 44.00 cm (17.32 in) x 28.00 cm (11.02 in) Weight: 4.34 kg 9.57 lb Power supplies: Power supply rated max (AC) 525 W; C14 power inlet Input voltage: AC: 100 to 240 VAC @ 50 to 60 Hz Operating temperature: 0°C to 45°C (32°F to 113°F) at sea level Operating humidity: 10% to 90% at 50°C (122°F), non-condensing Operating altitude: 0 to 3,048 m (10,000 ft) Acoustic noise: 41.0 dBA (25°C, min fan speed) MTBF: 1,550,360hr (25°C) Memory (DRAM): 4 GB Flash storage: 8 GB NVRAM (eMMC) MAC addresses: 32K (maximum) IPv4 routes: 16k IPv4 (maximum routes in hardware) IPv6 routes: 4k IPv6 (maximum routes in hardware) VLANs: 4,095 (maximum) Jumbo frames: 9,216 bytes (maximum jumbo frame size) Packet buffer: 4 MB Stacking: 12 switches per stack; 1200 Gb/s aggregate stack bandwidth (maximum) Console port: USB Type-C port; RJ45 serial port USB port: USB Type-A port (For external file storage) Certifications: FCC Part 15 Subpart B (Class A); UL 62368-1; TAA compliant (all ICX 8200 SKUs) Warranty: 3 years, Townsend Networks Returns: 30 days
