Townsend Networks

Ruckus ICX 8200 Switches

The RUCKUS ICX 8200 are stackable switches. The ICX8200-24P gives 248 Gbps of switching capacity and 184 Mpps, with a 525 W AC power supply, 4 GB of memory and 8 GB of flash; the ICX8200-24FX gives 720 Gb/s. Up to 12 switches join in a stack with 1200 Gb/s of stack bandwidth.

Sources: RUCKUS ICX 8200 Switch Data Sheet, RUCKUS ICX 8200-24FX, RUCKUS ICX 8200-24P

Selling Ruckus ICX 8200 hardware? Get an offer

Ruckus ICX 8200 facts from the maker

ICX8200-24P
248 Gbps; 184 Mpps; 4 MB packet buffer Source: RUCKUS ICX 8200 Switch Data Sheet
ICX8200-24FX
720 Gb/s switching capacity (maximum) Source: RUCKUS ICX 8200-24FX
Stacking
12 switches per stack; 1200 Gb/s aggregate stack bandwidth (maximum) Sources: RUCKUS ICX 8200-24P, RUCKUS ICX 8200-24FX
Power supply (ICX8200-24P)
Rated 525 W AC; C14 inlet Source: RUCKUS ICX 8200 Switch Data Sheet
Memory and storage (ICX8200-24P)
4 GB; 8 GB eMMC Source: RUCKUS ICX 8200 Switch Data Sheet
Airflow (ICX8200-24P)
Front and side to back; fanless mode Source: RUCKUS ICX 8200 Switch Data Sheet

Updated

Guides on the Ruckus ICX 8200

Rangeto

Ruckus ICX 8200 Switches in the catalog

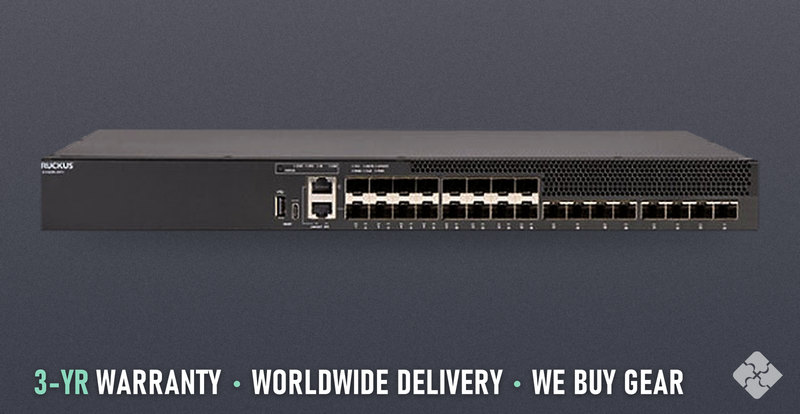

ICX8200-24FX Ruckus Switch, New, 16x 1/10GbE SFP+ and 8x 1/10/25GbE SFP28

ICX8200-24FX

ICX8200-24FX Ruckus Switch, New, 16x 1/10GbE SFP+ and 8x 1/10/25GbE SFP28

In stock

$3,955Ships same day

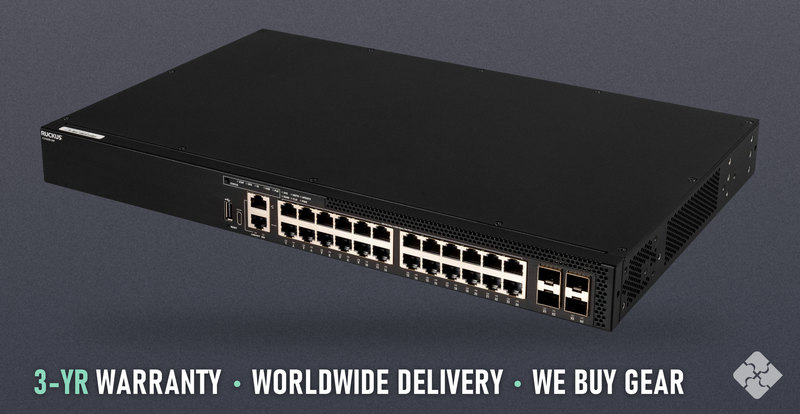

ICX8200-24P Ruckus Switch, New Open Box, 24x 1GbE PoE+ RJ45 and 4x 1/10/25GbE SFP28

ICX8200-24P

ICX8200-24P Ruckus Switch, New Open Box, 24x 1GbE PoE+ RJ45 and 4x 1/10/25GbE SFP28

In stock

$1,880Ships same day

Ruckus ICX 8200 part numbers

Part numberPortsAirflowPowerConditionPriceStock
ICX8200-24FX16 × 1/10GbEReversible Airflow Option: NoRedundant Power Option: No; Hot Swap Internal Power Supplies & Fans: NoNew$3,955In stock
ICX8200-24P24 × 1GbEFanless Mode.*** Front and side to backPower supply rated max (AC) 525 W; C14 power inletNew, open box$1,880In stock

Questions about the Ruckus ICX 8200 family

How many ICX 8200 switches can be stacked?
Up to 12 per stack, with 1200 Gb/s of aggregate stack bandwidth.Source: RUCKUS ICX 8200-24P
What is the switching capacity of the ICX 8200?
248 Gbps on the ICX8200-24P and 720 Gb/s on the ICX8200-24FX.Sources: RUCKUS ICX 8200 Switch Data Sheet, RUCKUS ICX 8200-24FX
