Townsend Networks

Arista 7050TX Switches

The Arista 7050TX models are copper switches. The 7050X DCS-7050TX-64 has 48 RJ45 ports that run 1/10GBASE-T and 4 QSFP+ ports, with 1.28 Tbps of switching capacity. The 7050X3 DCS-7050TX3-48C8 gives 1.28 (2.56) Tbps and 1 Bpps, with a 32 MB buffer, in 1RU. F models move air front to rear and R models rear to front.

Sources: Arista 7050TX Series Data Sheet, Arista 7050X3 Series Data Sheet

More Arista 7050 switches: Arista 7050SX, 7050TX and 7050QX Switches

Selling Arista 7050TX hardware? Get an offer

Arista 7050TX facts from the maker

DCS-7050TX-64
48 x RJ45 1/10GBASE-T + 4 x QSFP+; 1.28 Tbps Source: Arista 7050TX Series Data Sheet
DCS-7050TX3-48C8
1.28 (2.56) Tbps; 1 Bpps; 32 MB buffer; 1RU Source: Arista 7050X3 Series Data Sheet
Latency (DCS-7050TX3-48C8)
3 microseconds Source: Arista 7050X3 Series Data Sheet
Power draw (DCS-7050TX3-48C8)
212 W typical, 346 W maximum Source: Arista 7050X3 Series Data Sheet
Power and fans (7050TX)
1+1 redundant hot-swappable power; N+1 redundant hot-swappable fans Source: Arista 7050TX Series Data Sheet
Airflow
F models front to rear; R models rear to front Source: Arista 7050TX Series Data Sheet

Updated

Guides on the Arista 7050TX

Rangeto

Arista 7050TX Switches in the catalog

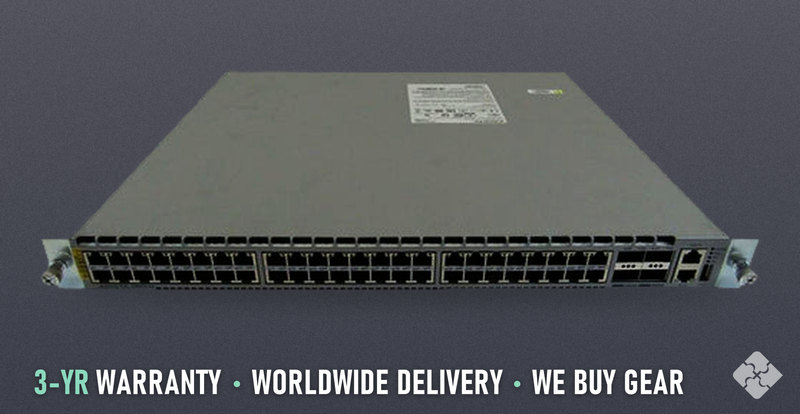

DCS-7050TX-64-F Arista Switch, Front-to-Back, AC Power, Used, 48x 1/10GbE RJ45 and 4x 40GbE QSFP+

DCS-7050TX-64-F

DCS-7050TX-64-F Arista Switch, Front-to-Back, AC Power, Used, 48x 1/10GbE RJ45 and 4x 40GbE QSFP+

In stock

$510Ships same day

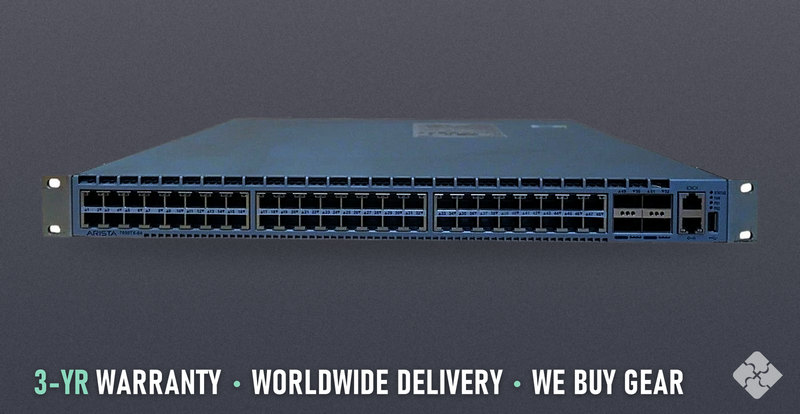

DCS-7050TX-64-R Arista Switch, Back-to-Front, AC Power, Used, 48x 1/10GbE RJ45 and 4x 40GbE QSFP+

DCS-7050TX-64-R

DCS-7050TX-64-R Arista Switch, Back-to-Front, AC Power, Used, 48x 1/10GbE RJ45 and 4x 40GbE QSFP+

In stock

$190Ships same day

Arista 7050TX part numbers

Part numberPortsAirflowConditionEnd of salePriceStock
DCS-7050TX-64-F48 × 1/10GbEFront-to-backUsed, tested & guaranteed$510In stock
DCS-7050TX-64-R48 × 1/10GbEBack-to-frontUsed, tested & guaranteed$190In stock

End of sale and support

ModelAnnouncedEnd of saleEnd of supportReplacementNotice
Arista 7050TX-64DCS-7050TX3-48C8Arista notice

Questions about the Arista 7050TX family

What do F and R mean at the end of a 7050TX part number?
They name the airflow. F models such as the DCS-7050TX-64-F move air front to rear; R models such as the DCS-7050TX-64-R move air rear to front.Source: Arista 7050TX Series Data Sheet
How does the 7050TX compare with the 7050SX on power?
Arista rates the 7050TX Series at typical power under 5W per 10GbE port, against under 2W on the SFP+ 7050SX.Source: Arista 7050TX Series Data Sheet
