Juniper EX Switches
The Juniper EX Series switches here run from the EX2300 to the EX4650. The EX2300 joins up to four switches in a Virtual Chassis, and the EX3400, EX4300, EX4400 and EX4600 up to 10, the EX4300 at 320 Gbps and the EX4400 at 400 Gbps. Switching capacity runs from 64/128 Gbps on the 24 port EX2300 models to 720 Gbps/1.44 Tbps on the EX4600 and up to 4 Tbps on the EX4650-48Y. AFO parts move air front to back and AFI parts back to front.
Sources: EX2300 Ethernet Switch Datasheet, EX4300 Line of Ethernet Switches Datasheet, EX4400 Line of Ethernet Switches Datasheet, EX4600 Ethernet Switch Datasheet, EX4650 Ethernet Switch Datasheet
Selling Juniper EX Series hardware? Get an offer
Juniper EX Series facts from the maker

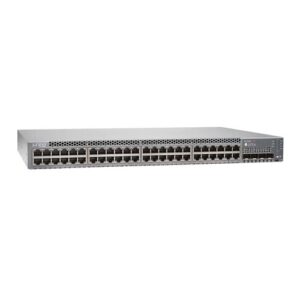

- EX2300
- Virtual Chassis of up to four switches, 80 Gbps; 64/128 Gbps on the 24 port models Source: EX2300 Ethernet Switch Datasheet

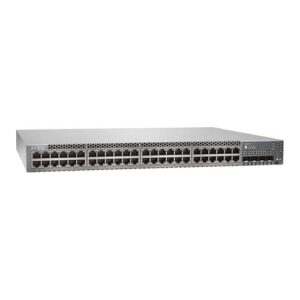

- EX3400
- Virtual Chassis of up to 10; 168/336 Gbps (48 port models) Source: EX3400 Ethernet Switch Datasheet

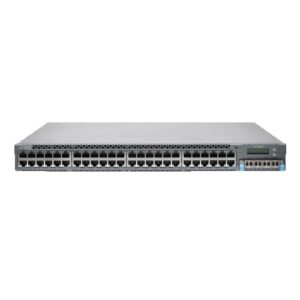

- EX4300
- Virtual Chassis of up to 10 at 320 Gbps; EX4300-48T 248/496 Gbps Source: EX4300 Line of Ethernet Switches Datasheet

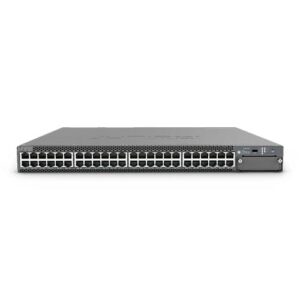

- EX4400
- Virtual Chassis of up to 10 at 400 Gbps; EX4400-48F 456/912 Gbps Sources: EX4400 Line of Ethernet Switches Datasheet, EX4400-48F Hardware Specifications

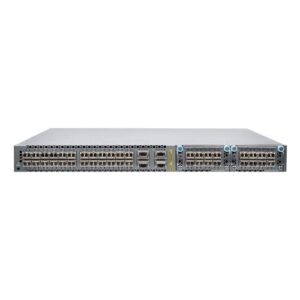

- EX4600
- 24 x SFP+ + 4 x QSFP+; 720 Gbps/1.44 Tbps; Virtual Chassis of up to 10 Sources: EX4600 Switch Hardware Guide, EX4600 Ethernet Switch Datasheet

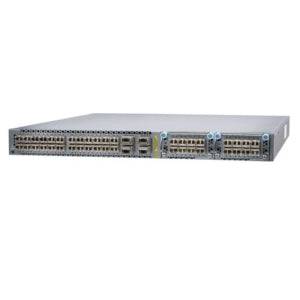

- EX4650-48Y
- 48 x 25/10/1GbE + 8 x 100/40GbE; 2/4 Tbps; 1 U Source: EX4650 Ethernet Switch Datasheet
- Airflow
- AFO models front to back (AIR OUT); AFI models back to front (AIR IN) Source: EX4300 Line of Ethernet Switches Datasheet
Updated
Guides on the Juniper EX Series
Juniper EX Switches in the catalog

EX4650-48Y-DC-AFO Juniper Switch, New Open Box, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
In stock

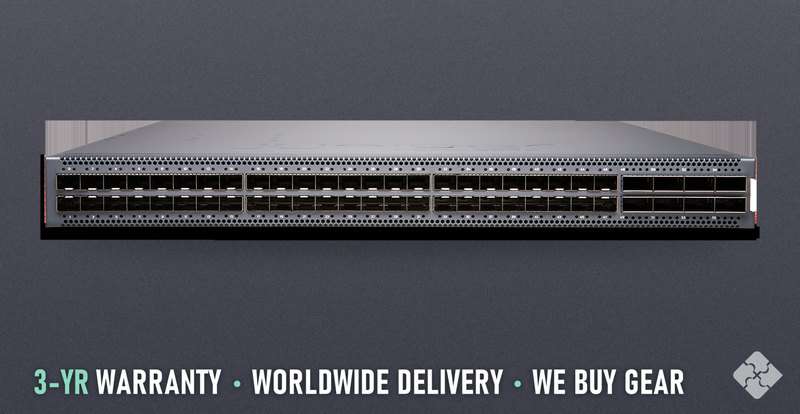

EX4650-48Y-AFO Juniper Switch, Front-to-Back, Refurbished, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
In stock

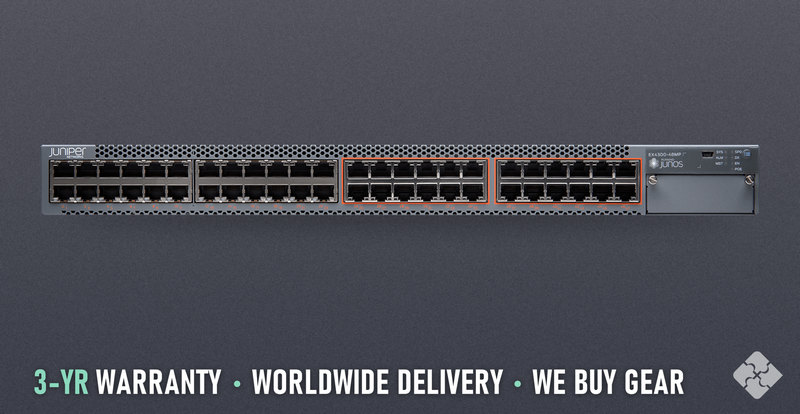

EX4300-48MP Juniper Switch, Front-to-Back, 48x 1GbE PoE++ RJ45 (24 × 10GbE) and 4x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

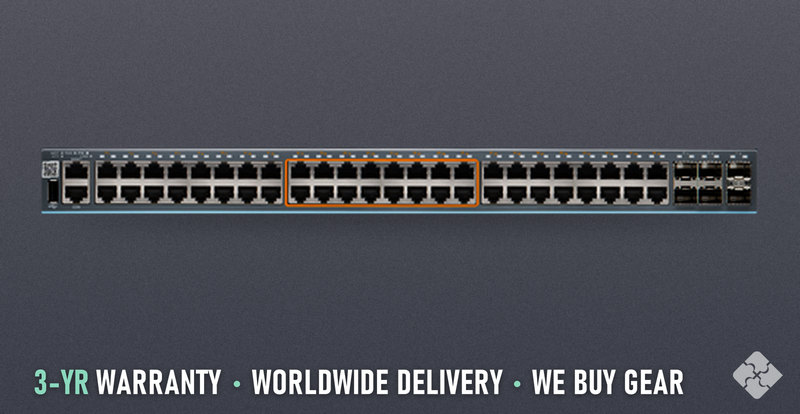

EX2300-48MP Juniper Switch, Refurbished, 48x 1GbE PoE+ RJ45 (16 × 2.5GbE) and 6x 10GbE SFP+
In stock

EX4600-40F-AFI Juniper Switch, Back-to-Front, Refurbished, 24x 1/10GbE SFP+ and 4x 40GbE QSFP+
In stock

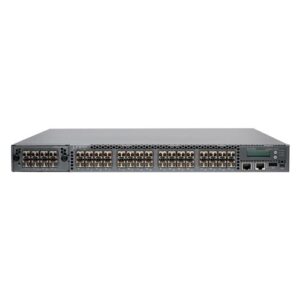

EX4550-32F-AFI Juniper Switch, Back-to-Front, Refurbished, 32x 1/10GbE SFP+
In stock


EX4300-24P Juniper Switch, Front-to-Back, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 40GbE QSFP+
In stock

EX4600-40F-AFO Juniper Switch, Front-to-Back, Refurbished, 24x 1/10GbE SFP+ and 4x 40GbE QSFP+
In stock

EX2300-24T Juniper Switch, Front-to-Back, Refurbished, 24x 1GbE RJ45 and 4x 1/10GbE SFP+
In stock

EX4550-32F-AFO Juniper Switch, Front-to-Back, Refurbished, 32x 1/10GbE SFP+
In stock

EX2300-C-12T Juniper Switch, Refurbished, 12x 1GbE RJ45 and 2x 1/10GbE SFP+
In stock

EX3400-24T Juniper Switch, Front-to-Back, 24x 1GbE RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

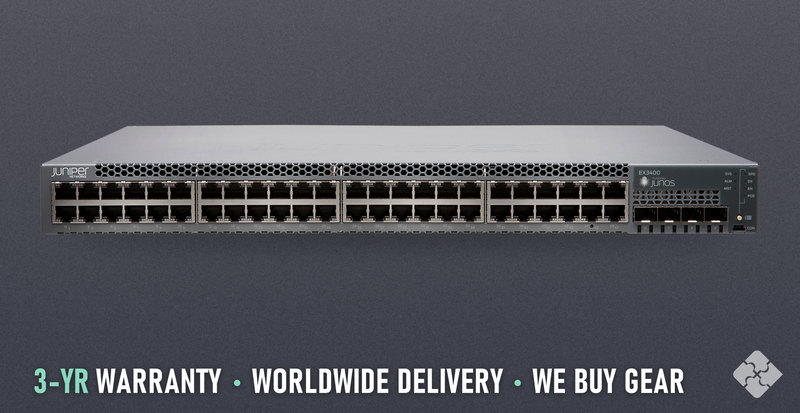

EX3400-48P Juniper Switch, Front-to-Back, 48x 1GbE PoE+ RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

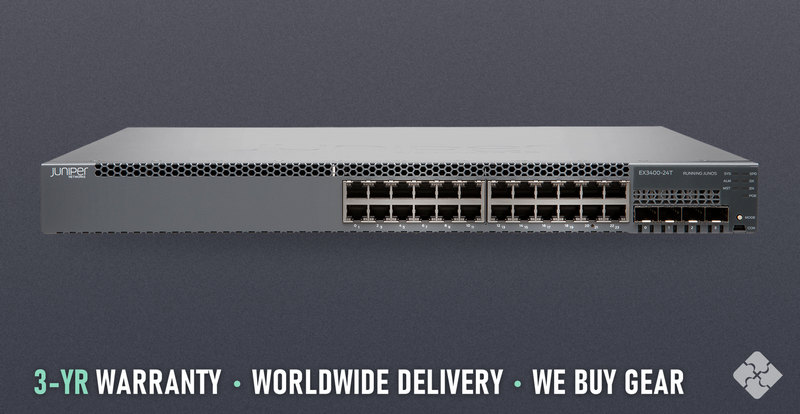

EX3400-24P Juniper Switch, Front-to-Back, 24x 1GbE PoE+ RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

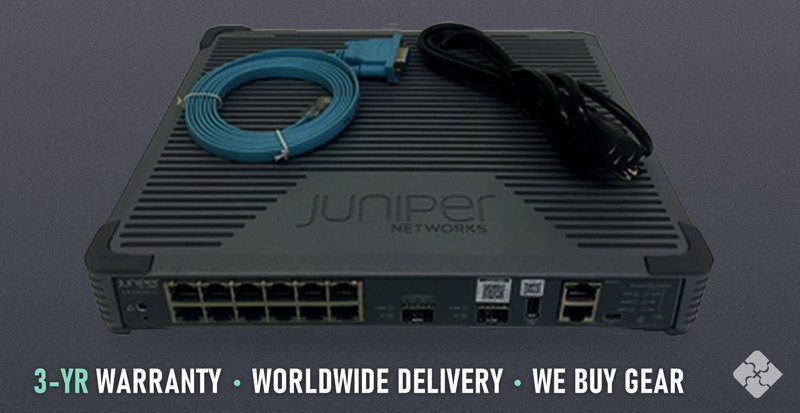

EX2300-C-12P Juniper Switch, Refurbished, 12x 1GbE PoE RJ45 and 2x 1/10GbE SFP+
In stock

EX2300-24P Juniper Switch, AC Power, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 1/10GbE SFP+
In stock

EX2200-C-12T-2G Juniper Switch, AC Power, Refurbished, 12x 1GbE RJ45 and 2x 1GbE RJ45
In stock

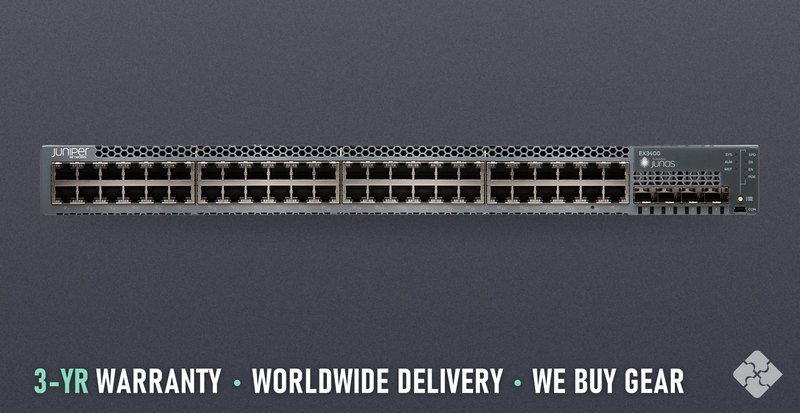

EX3400-48T Juniper Switch, Front-to-Back, 48x 1GbE RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

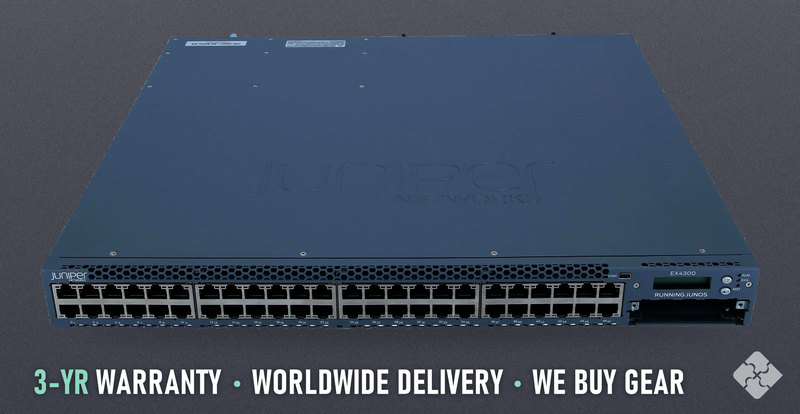

EX4300-48T-AFI Juniper Switch, Back-to-Front, Refurbished, 48x 1GbE RJ45 and 4x 40GbE QSFP+
In stock

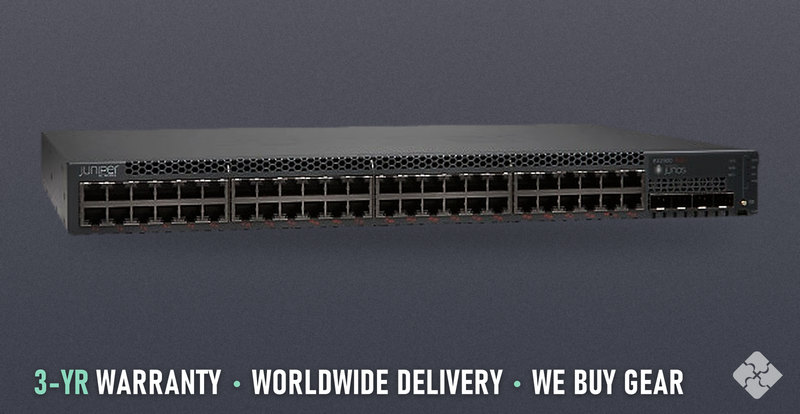

EX2300-48P Juniper Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 4x 1/10GbE SFP+
In stock

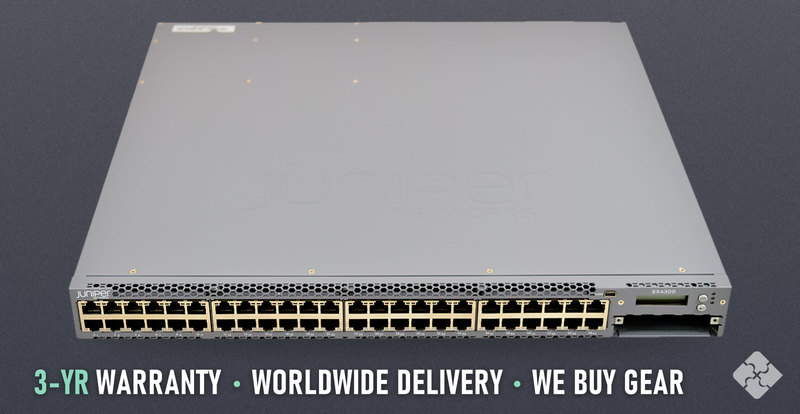

EX4300-48T Juniper Switch, Front-to-Back, Refurbished, 48x 1GbE RJ45 and 4x 40GbE QSFP+
In stock

EX4550-VC1-128G Juniper Stacking Module, Refurbished, EX4550, 128G Virtual Chassis Module
In stock

EX4600-EM-8F Juniper Uplink Module, Refurbished, 8x 1/10GbE SFP+
In stock

EX4550-EM-8XT Juniper Uplink Module, Refurbished, 8x 1/10GbE RJ45
In stock

EX-SFP-1GE-LX Juniper Transceiver, Refurbished, 1000BASE-LX SFP Juniper EX
In stock

EX4650-48Y-AFO Juniper Switch, Front-to-Back Airflow, New, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
In stock

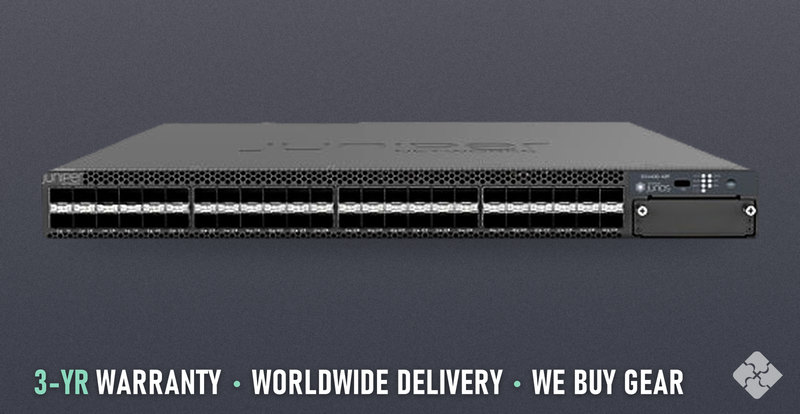

EX4400-48F Juniper Switch, Front-to-Back, AC Power, Used, 48x 1GbE SFP and 2x 40/100GbE QSFP28
In stock

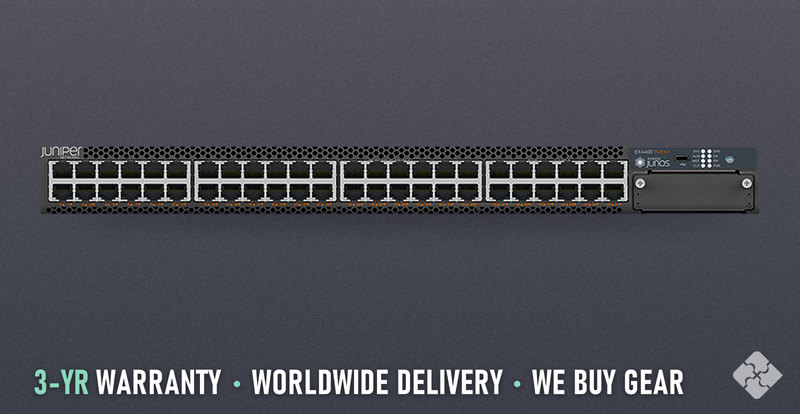

EX4400-48P Juniper Switch, Front-to-Back, Refurbished, 48x 1GbE PoE++ RJ45 and 2x 40/100GbE QSFP28
In stock

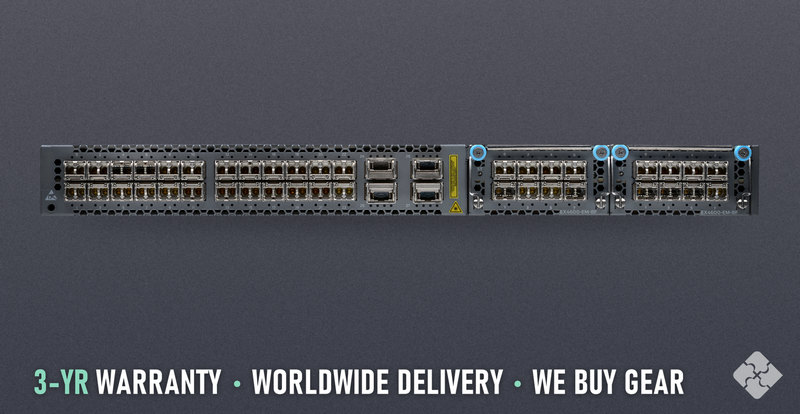

EX4600-40F-DC-AFI Juniper Switch, Back-to-Front, Used, 24x 1/10GbE SFP+ and 4x 40GbE QSFP+
In stock

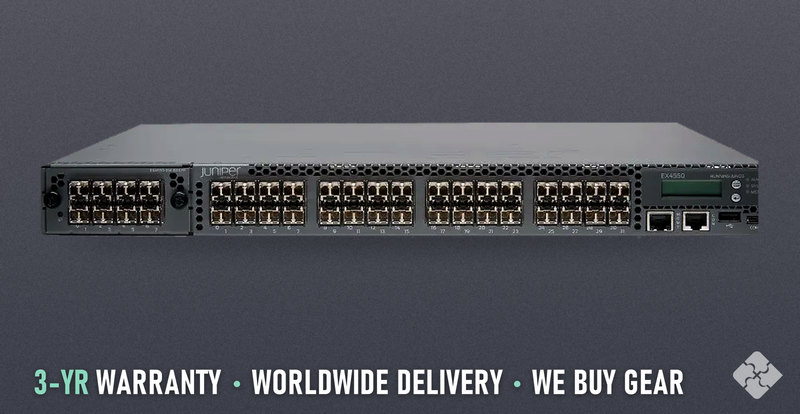

EX4550-32F-DC-AFI Juniper Switch, Back-to-Front, Used, 32x 1/10GbE SFP+
In stock

EX4600-40F-DC-AFO Juniper Switch, Front-to-Back, Used, 24x 1/10GbE SFP+ and 4x 40GbE QSFP+
In stock

EX4400-48T Juniper Switch, Front-to-Back, AC Power, Used, 48x 1GbE RJ45 and 2x 100GbE QSFP28
In stock

EX3400-48T-TAA Juniper Switch, 48x 1GbE RJ45, 4x 1/10GbE SFP+ and 2x 40GbE QSFP+
Used, tested & guaranteed
In stock

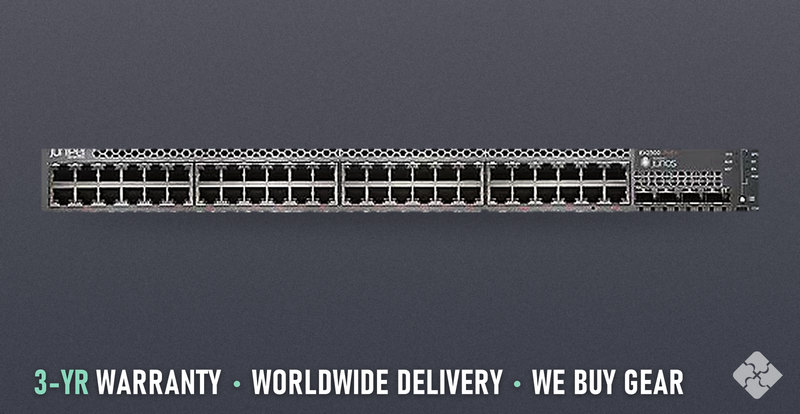

EX2300-48T-VC Juniper Switch, AC Power, Used, 48x 1GbE RJ45 and 4x 1/10GbE SFP+
In stock

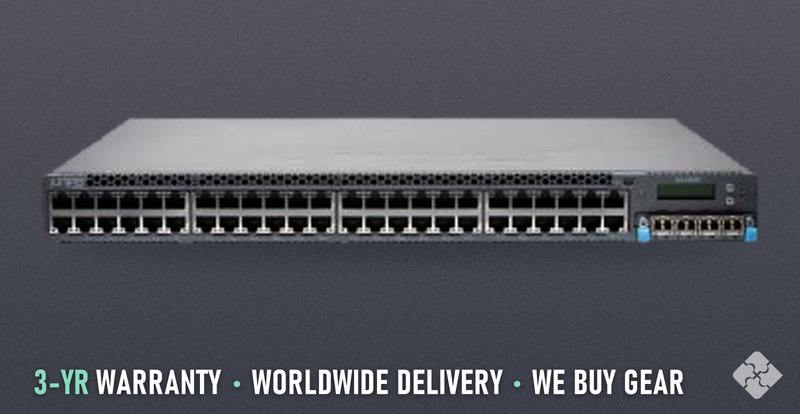

EX4300-48T-DC Juniper Switch, Front-to-Back, DC Power, Used, 48x 1GbE RJ45 and 4x 40GbE QSFP+
In stock

EX4300-32F-DC Juniper Switch, Front-to-Back, 32x 1GbE SFP, 4x 10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

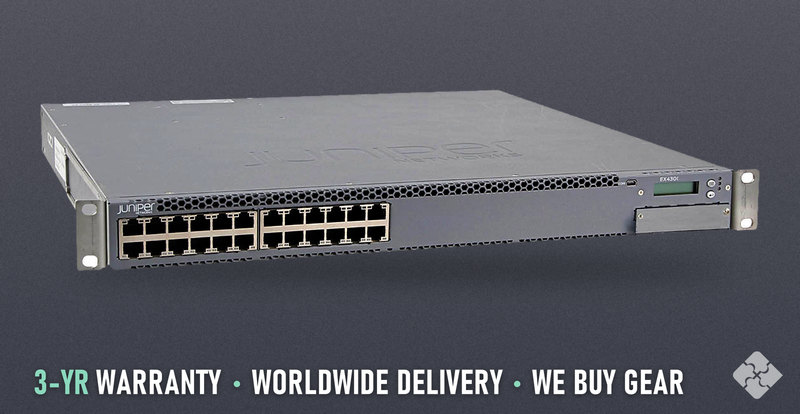

EX4300-24T-TAA Juniper Switch, Front-to-Back, AC Power, Used, 24x 1GbE RJ45 and 4x 40GbE QSFP+
In stock

EX4550-EM-2QSFP Juniper Uplink Module, Refurbished, 2x 40GbE QSFP+
In stock

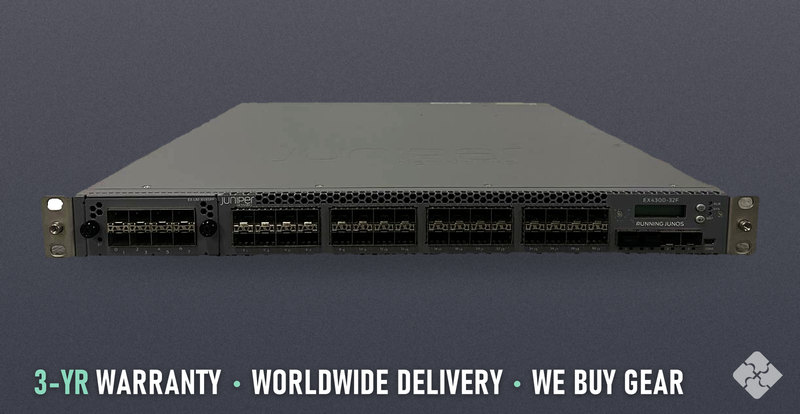

EX4300-32F Juniper Switch, Front-to-Back, 32x 1GbE SFP, 4x 10GbE SFP+ and 2x 40GbE QSFP+
Refurbished, tested & guaranteed
In stock

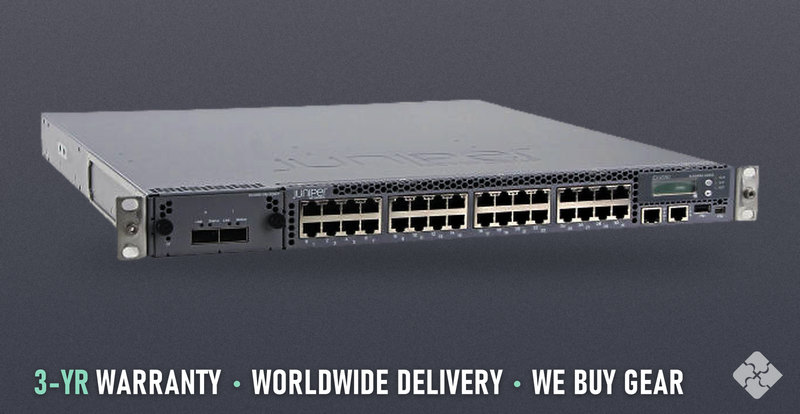

EX4550-32T-AFI Juniper Switch, Back-to-Front, Refurbished, 32x 1/10GbE RJ45
In stock

EX4550-32F-DC-AFO Juniper Switch, Front-to-Back, Used, 32x 1/10GbE SFP+
In stock

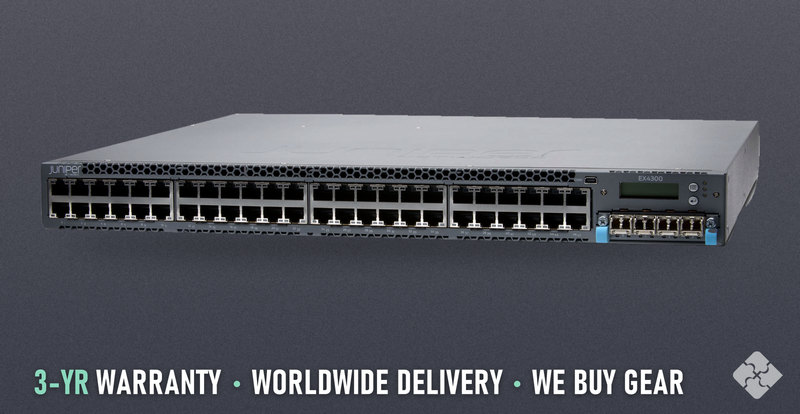

EX4300-48P-TAA Juniper Switch, Front-to-Back, AC Power, Used, 48x 1GbE PoE+ RJ45 and 4x 40GbE QSFP+
In stock
Juniper EX Series part numbers
| Part number | Ports | Airflow | Power | Condition | End of sale | Price | Stock |
|---|---|---|---|---|---|---|---|
| EX4650-48Y-DC-AFO | 48 × 1/10/25GbE | Front-to-back (AFO) | 2 x 650 W DC (1+1, hot-pluggable) | New, open box | $9,895 | In stock | |
| EX4650-48Y-AFO | 48 × 1/10/25GbE | Front-to-back (AFO) | two AC power supplies, each with a label AIR OUT (AFO) | Refurbished, tested & guaranteed | $9,400 | In stock | |
| EX4300-48MP | 48 × 1GbE (24 × 10GbE) | Front-to-back | 1400 W AC AFO (715/1100/1400 W AFO options); dual load-sharing hot-swappable | Refurbished, tested & guaranteed | $2,465 | In stock | |
| EX2300-48MP | 48 × 1GbE (16 × 2.5GbE) | Side-to-side: four fans along the right side panel | Built in along the rear panel, with an AC power cord inlet | Refurbished, tested & guaranteed | $1,875 | In stock | |
| EX4600-40F-AFI | 24 × 1/10GbE | Back-to-front (AFI) | 2 AC power supplies; dual redundant (1+1), hot-pluggable | Refurbished, tested & guaranteed | $1,395 | In stock | |
| EX4550-32F-AFI | 32 × 1/10GbE | Back-to-front (AFI) | Refurbished, tested & guaranteed | $790 | In stock | ||
| EX4200-48T | 48 × 1GbE | 20.3 cfm | 320 W AC; dual load-sharing hot-swappable internal redundant | Refurbished, tested & guaranteed | $595 | In stock | |
| EX4300-24P | 24 × 1GbE | Front-to-back (AFO) | 715 W AC AFO; dual load-sharing hot-swappable internal redundant PSUs | Refurbished, tested & guaranteed | $590 | In stock | |
| EX4600-40F-AFO | 24 × 1/10GbE | Front-to-back (AFO) | 2 AC power supplies; dual redundant (1+1), hot-pluggable | Refurbished, tested & guaranteed | $545 | In stock | |
| EX2300-24T | 24 × 1GbE | Front-to-back: two fans along the rear of the chassis | Built in along the rear panel, with an AC power cord inlet | Refurbished, tested & guaranteed | $530 | In stock | |
| EX4550-32F-AFO | 32 × 1/10GbE | Front-to-back (AFO) | Refurbished, tested & guaranteed | $470 | In stock | ||
| EX2300-C-12T | 12 × 1GbE | Fanless: top-panel vents, no heatsink | Built in along the rear panel, with an AC power cord inlet | Refurbished, tested & guaranteed | $445 | In stock | |
| EX3400-24T | 24 × 1GbE | Front-to-back | Refurbished, tested & guaranteed | $405 | In stock | ||
| EX3400-48P | 48 × 1GbE | Front-to-back | AC; 920W power supply rating | Refurbished, tested & guaranteed | $375 | In stock | |
| EX3400-24P | 24 × 1GbE | Front-to-back (AFO) | Refurbished, tested & guaranteed | $360 | In stock | ||
| EX2300-C-12P | 12 × 1GbE | Fanless: top-panel vents and a rear-panel heatsink | Built in along the rear panel, with an AC power cord inlet | Refurbished, tested & guaranteed | $340 | In stock | |
| EX2300-24P | 24 × 1GbE | Built-in power supply (AC or DC) | Refurbished, tested & guaranteed | $290 | In stock | ||
| EX2200-C-12T-2G | 12 × 1GbE | 100 to 240 VAC | Refurbished, tested & guaranteed | $290 | In stock | ||
| EX3400-48T | 48 × 1GbE | Front-to-back | AC; 150W rating; 1 AC PSU JPSU-150-AC-AFO included | Refurbished, tested & guaranteed | $245 | In stock | |
| EX4300-48T-AFI | 48 × 1GbE | Back-to-front (AFI) | Refurbished, tested & guaranteed | $235 | In stock | ||
| EX2300-48P | 48 × 1GbE | 25 cfm | Refurbished, tested & guaranteed | $155 | In stock | ||
| EX4300-48T | 48 × 1GbE | Front-to-back | A 350 W AC power supply with the AIR OUT (AFO) label | Refurbished, tested & guaranteed | $145 | In stock | |
| EX4550-VC1-128G | Refurbished, tested & guaranteed | $745 | In stock | ||||
| EX4600-EM-8F | 8 × 1/10GbE | Refurbished, tested & guaranteed | $255 | In stock | |||
| EX4550-EM-8XT | 8 × 1/10GbE | Refurbished, tested & guaranteed | $190 | In stock | |||
| EX-SFP-1GE-LX | Refurbished, tested & guaranteed | $45 | In stock | ||||
| EX4650-48Y-AFO | 48 × 1/10/25GbE | Front-to-back (AFO) | two AC power supplies, each with a label AIR OUT (AFO) | New | $10,885 | In stock | |
| EX4400-48F | 48 × 1GbE | Front-to-back | 2 PSUs, 1+1 redundancy; AC model JPSU-550-C-AC-AFO | Used, tested & guaranteed | $3,500 | In stock | |
| EX4400-48P | 48 × 1GbE | AFO (front-to-back airflow) | 1600 W AC; dual load-sharing hot-swappable internal redundant PSUs | Refurbished, tested & guaranteed | $3,215 | In stock | |
| EX4600-40F-DC-AFI | 24 × 1/10GbE | Back-to-front (AFI) | 2 DC power supplies; dual redundant (1+1), hot-pluggable | Used, tested & guaranteed | $2,200 | In stock | |
| EX4550-32F-DC-AFI | 32 × 1/10GbE | Back-to-front (AFI) | Used, tested & guaranteed | $1,915 | In stock | ||
| EX4600-40F-DC-AFO | 24 × 1/10GbE | Front-to-back (AFO) | 2 DC power supplies; dual redundant (1+1), hot-pluggable | Used, tested & guaranteed | $1,740 | In stock | |
| EX4400-48T | 48 × 1GbE | Front-to-back airflow (AIR OUT label, orange handle) | Two PSU slots, one preinstalled 550 W AC | Used, tested & guaranteed | $1,495 | In stock | |
| EX3400-48T-TAA | 48 × 1GbE | Front-to-back | 1 AC PSU JPSU-150-AC-AFO included | Used, tested & guaranteed | $1,470 | In stock | |
| EX2300-48T-VC | 48 × 1GbE | Used, tested & guaranteed | $1,140 | In stock | |||
| EX4300-48T-DC | 48 × 1GbE | Front-to-back | A 550 W DC power supply with the AIR OUT (AFO) label | Used, tested & guaranteed | $810 | In stock | |
| EX4300-32F-DC | 32 × 1GbE | Front-to-back | A 550 W DC power supply with the AIR OUT (AFO) label | Refurbished, tested & guaranteed | $800 | In stock | |
| EX4300-24T-TAA | 24 × 1GbE | Front-to-back | A 350 W AC power supply with the AIR OUT (AFO) label | Used, tested & guaranteed | $585 | In stock | |
| EX4550-EM-2QSFP | 2 × 40GbE | Refurbished, tested & guaranteed | $390 | In stock | |||
| EX4300-32F | 32 × 1GbE | Front-to-back | one AC power supply installed in the rear panel; DC power not supported | Refurbished, tested & guaranteed | $310 | In stock | |
| EX4550-32T-AFI | 32 × 1/10GbE | Back-to-front (AFI) | Refurbished, tested & guaranteed | $260 | In stock | ||
| EX4550-32F-DC-AFO | 32 × 1/10GbE | Front-to-back (AFO) | Used, tested & guaranteed | $130 | In stock | ||
| EX4300-48P-TAA | 48 × 1GbE | Front-to-back | Used, tested & guaranteed | $80 | In stock |
End of sale and support
| Model | Announced | End of sale | End of support | Notice |
|---|---|---|---|---|
| Juniper EX2300 | Juniper notice | |||
| Juniper EX4300 (24P, 24T, 48P, 48T) | Juniper notice | |||
| Juniper EX4300-32F | Juniper notice | |||
| Juniper EX4300-48MP | Juniper notice | |||
| Juniper EX4550 | Juniper notice | |||
| Juniper EX4600 | Juniper notice |
Juniper end-of-life notice TSB107683. End of engineering is 2029-09-30.
Juniper end-of-life notice TSB105633. End of engineering is 2027-03-31.
Juniper end-of-life notice TSB109284. End of engineering is 2029-12-29.
Juniper end-of-life notice TSB109286. End of engineering is 2029-12-29.
Questions about the Juniper EX Series family
- How many EX switches can join a Virtual Chassis?
- Up to four EX2300 switches, and up to 10 EX3400, EX4300, EX4400 or EX4600 switches.Sources: EX2300 Ethernet Switch Datasheet, EX3400 Ethernet Switch Datasheet, EX4300 Line of Ethernet Switches Datasheet, EX4400 Line of Ethernet Switches Datasheet, EX4600 Ethernet Switch Datasheet
- What do AFO and AFI mean on an EX switch?
- They name the airflow: AFO parts, labeled AIR OUT, move air front to back; AFI parts, labeled AIR IN, move air back to front.Source: EX4300 Line of Ethernet Switches Datasheet
