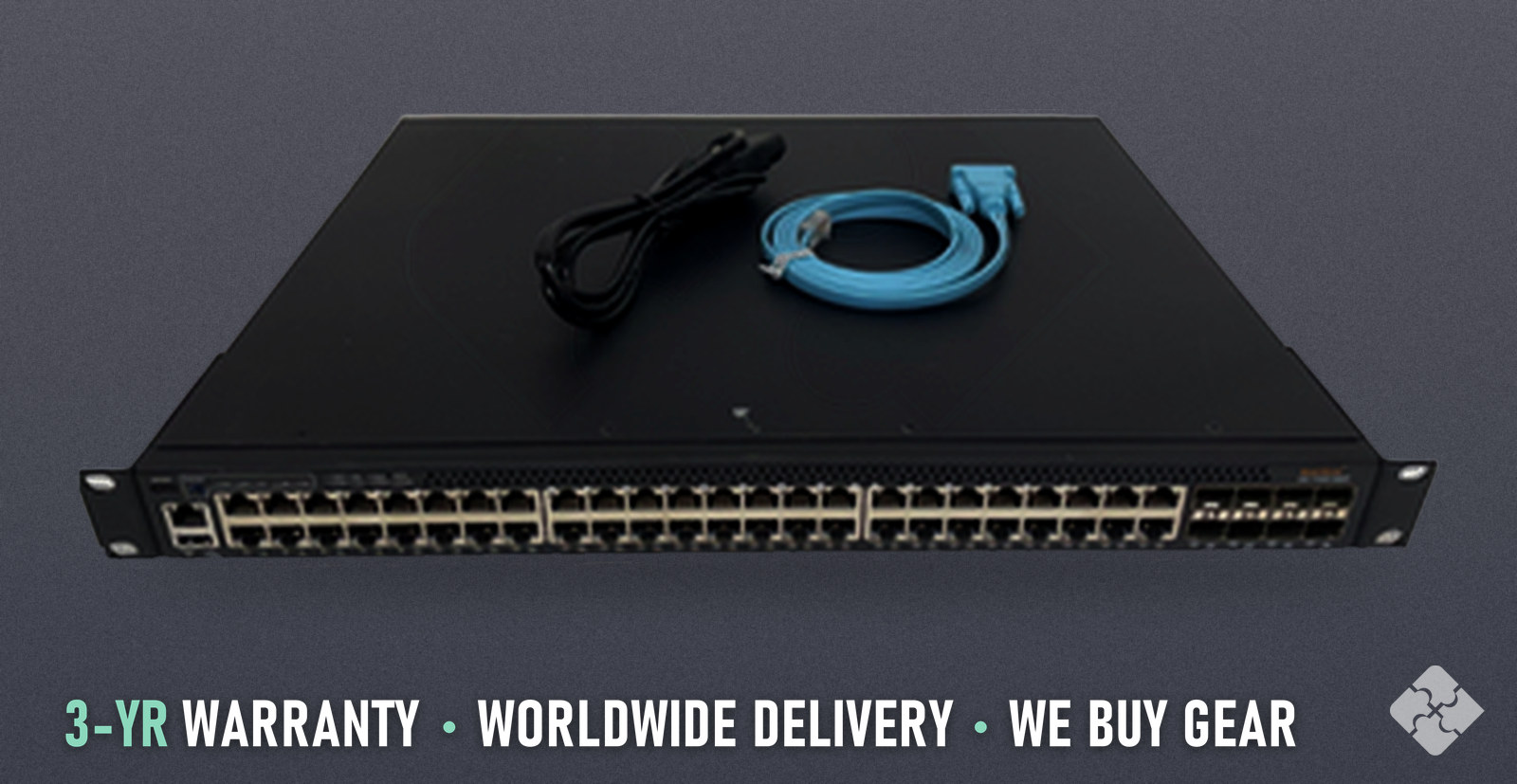

ICX7150-48ZP-E2X10G
ICX7150-48ZP-E2X10G Brocade ICX7150 switch, 48x 1GbE PoE+ RJ45 (16 × 2.5GbE) and 2x 10GbE SFP+
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
ICX7150-48ZP-E2X10G, in stock, ships worldwide.
$885
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- ICX7150-48ZP-E2X10G
- Network Ports
- 48 × 1GbE (16 × 2.5GbE)
- Connectors
- RJ45, SFP, SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
End of sale and support
| Model | Announced | End of sale | Notice |
|---|---|---|---|
| Ruckus ICX 7150 (C12P, C10ZP, 48ZP) | Ruckus notice |
Questions about the ICX7150 family
- What ports does the ICX7150-48ZP-E2X10G have?
- It has 48 × 1GbE (16 × 2.5GbE); uplinks: 2x 10GbE SFP+, 6x 1GbE SFP. 56 data ports in all. Connectors: RJ45, SFP, SFP+.
- Which way does the air flow on the ICX7150-48ZP-E2X10G?
- Airflow is front-to-back.
- What power does the ICX7150-48ZP-E2X10G use?
- It uses PoE budget 1480 W, PoH (802.3bt-class 90W) + 802.3at PoE+.
- What are the size and weight of the ICX7150-48ZP-E2X10G?
- Dimensions: 44 (H) x 440 (w) x 332 (D) mm. Weight: 6.61 kg.
- What software does the ICX7150-48ZP-E2X10G run?
- It runs RUCKUS FastIron.
- What temperature range does the ICX7150-48ZP-E2X10G run in?
- Operating temperature: -5°C to 45°C.
- What do the ICX 7150 part number suffixes mean?
- From Ruckus's ordering information: -4X1G and -2X1G models have 1GbE SFP uplinks that a Ruckus licence upgrades to 10GbE, with basic Layer 3 (static routing and RIP). -2X10G models have two 1GbE SFP and two 10GbE SFP+ stacking and uplink ports, upgradable to four 10GbE by licence, also with basic Layer 3. -4X10GR and -2X10GR models have four (or, on the compact models, two) 10GbE SFP+ stacking and uplink ports and Layer 3 features including OSPF, VRRP, PIM and PBR. On the 48ZP, -E2X10G has six 1GbE SFP and two 10GbE SFP+ ports, upgradable to eight 10GbE by licence, and the eight-port model has eight 10GbE SFP+ ports with Layer 3 features.
- Is the Ruckus ICX 7150 end of sale?
- Yes. Ruckus ended sale of the ICX7150-24, -24P, -48, -48P and -48PF on 10 March 2025, and of the ICX7150-C12P, -C10ZP and -48ZP on 15 January 2026. Ruckus's support site now notes that all ICX 7150 models are end of sale.
- How many ICX 7150 switches can be stacked?
- Up to 12 in one stack, up to 10 km apart, over the SFP+ stacking and uplink ports, with no stacking module needed. Ruckus says all ICX 7150 models stack together, including the multigigabit 48ZP and C10ZP; the 8-port ICX 7150-C08P is the exception and is not sold here. The 48ZP can use four of its 10GbE ports for stacking and the other four for uplinks.
- Which ICX 7150 models run silently?
- The compact C12P and C10ZP and the non-PoE ICX 7150-24 and ICX 7150-48 have a fanless design. The ICX 7150-24P and ICX 7150-48P have a silent mode that runs with the fan off and a 150 W PoE budget.
- How much PoE does each ICX 7150 deliver?
- Per Ruckus's data sheet: C12P 124 W, C10ZP 240 W, 24P and 48P 370 W, 48PF 740 W. The 48ZP ships with one 920 W power supply and a 740 W PoE budget, and reaches 1,480 W with two power supplies.
- What condition and warranty come with a Ruckus ICX 7150 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Ruckus software licences and support contracts are not part of our warranty.
The Brocade ICX7150-48ZP-E2X10G is a switch from the Brocade ICX7150 family with 48 ports of 1GbE PoE+ RJ45 (16 × 2.5GbE) and 2 ports of 10GbE SFP+. It has 56 ports in all. It runs RUCKUS FastIron. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Ruckus/Brocade ICX7150-48ZP-E2X10G / 16x 2.5GbE PoH (90W) + 32x 1GbE PoE+ access ports, 6x 1GbE SFP + 2x 10GbE SFP+ uplinks (license-upgradable to 8x10G), 1480W PoE budget
TECHNICAL DETAILS
Brand: Brocade Family: ICX7150 Uplinks: 2x 10GbE SFP+, 6x 1GbE SFP Total ports: 56 Fastest port: 10GbE Management ports: Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 PoE: PoE+ (802.3at) PoE standard: PoH (802.3bt-class 90W) + 802.3at PoE+ PoE budget: 1480 W Operating system: RUCKUS FastIron Airflow: Front-to-back Dimensions: 44 (H) x 440 (w) x 332 (D) mm Weight: 6.61 kg Fans: 1 fan Power supplies: 1x 920 W AC power supply Input voltage: AC: 100 to 240 VAC @ 50 to 60 Hz Operating temperature: -5°C to 45°C Storage temperature: −25°C to 70°C Operating humidity: 5% to 95% at 45°C, non-condensing Operating altitude: 10,000 ft (3,000 m) maximum Acoustic noise: 52 dBA (25°C, min fan speed) MTBF: 104,626 hours (25°C) Memory (DRAM): 1 GB Flash storage: 2 GB (NVRAM (Flash)) Switching capacity: 304 Gbps (data rate, full duplex) Forwarding rate: 226 Mpps (data rate, full duplex) MAC addresses: 16,384 IPv4 routes: 1,000 (in hardware) IPv6 routes: 1,000 (in hardware) VLANs: 4,095 Jumbo frames: 9,216 bytes Packet buffer: 12/24 port: 2 MB, 48 port: 4 MB Console port: RJ45 serial port and USB Type-C port with serial communication device class support USB port: USB port, standard-A plug (file transfer) Certifications: FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A Warranty: 3 years, Townsend Networks Returns: 30 days
WHAT'S INCLUDED
One (1) Brocade ICX7150-48ZP-E2X10G. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed ICX7150-48ZP-E2X10G was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
ICX7150-48ZP-E2X10G has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
