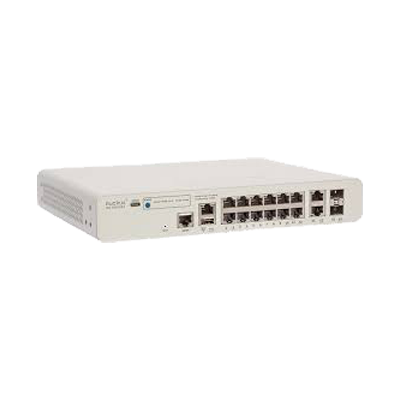

ICX7150-C12P-2X10GR Brocade Switch, AC Power, Refurbished, 12x 1GbE PoE+ RJ45 and 2x 10GbE SFP+

ICX7150-C12P-2X10GR Brocade Switch, AC Power, Refurbished, 12x 1GbE PoE+ RJ45 and 2x 10GbE SFP+

Condition
Refurbished, tested & guaranteed
WARRANTY & RETURNS
ICX7150-C12P-2X10GR has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

$170

Free US ground shipping

Orders placed by 12pm ship the same day.

Request a quote415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Brocade ICX7150-C12P-2X10GR is a switch from the Brocade ICX7150 family with 12 ports of 1GbE PoE+ RJ45, 2 ports of 10GbE SFP+ and AC power. It has 16 ports in all. It is a Layer 3 managed platform that runs RUCKUS FastIron. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Compatible with
Stacks with the other ICX 7150 models, up to 12 switches in a stack, on its two 10 GbE SFP+ ports. The uplinks are already SFP+ and OSPF, VRRP, PIM and PBR are included, so Ruckus lists no uplink or routing license for it.
HOW IT DIFFERS
ICX7150-C12P-2X10GR is the compact 12 port PoE+ switch with 10 GbE uplinks built in: 12 10/100/1000 Mbps PoE+ ports, 2 one-gigabit RJ45 uplinks and 2 10 GbE SFP+ stacking and uplink ports, a 124 W PoE budget and the Layer 3 features OSPF, VRRP, PIM and PBR. ICX7150-C12P-2X10GR is also listed by Ruckus as ICX7150-C12P-2X10GR-A for buyers who need a TAA-compliant switch. Its sister ICX7150-C12P-2X1G has two 1 GbE SFP uplinks and basic Layer 3 (static routing and RIP), at the same 124 W PoE budget. The chassis figures do not change between them: 2.58 kg net, fanless, 68 Gbps switching capacity.
Model
ICX7150-C12P-2X10GR
Network Ports
12 × 1GbE
Connectors
RJ45, SFP+
Type
Switch
Condition
Refurbished, tested & guaranteed

Technical details

BrandBrocade
FamilyICX7150
Uplinks2x 10GbE SFP+, 2x 1GbE RJ45
Total ports16
Fastest port10GbE
PoEYes
PoE standard802.3at
PoE budget124 W
LayerLayer 3 (managed)
Operating systemRUCKUS FastIron
Power inputAC
Throughput68 Gbps switching capacity, 51 Mpps forwarding
Dimensions43.4 x 269 x 213 mm
Weight2.58 kg net
Acoustic noiseFanless
MTBF562,889 hours at 25 C
Latency2.336 µs at 1GE and 0.948 µs at 10GE, 64 byte packets at 100% throughput

Brocade datasheet

Testing process

End of sale and support

ModelAnnouncedEnd of saleNotice
Ruckus ICX 7150 (C12P, C10ZP, 48ZP)Ruckus notice

Questions about the Ruckus ICX7150 family

What do the ICX 7150 part number suffixes mean?
From Ruckus's ordering information: -4X1G and -2X1G models have 1GbE SFP uplinks that a Ruckus licence upgrades to 10GbE, with basic Layer 3 (static routing and RIP). -2X10G models have two 1GbE SFP and two 10GbE SFP+ stacking and uplink ports, upgradable to four 10GbE by licence, also with basic Layer 3. -4X10GR and -2X10GR models have four (or, on the compact models, two) 10GbE SFP+ stacking and uplink ports and Layer 3 features including OSPF, VRRP, PIM and PBR. On the 48ZP, -E2X10G has six 1GbE SFP and two 10GbE SFP+ ports, upgradable to eight 10GbE by licence, and the eight-port model has eight 10GbE SFP+ ports with Layer 3 features.
Is the Ruckus ICX 7150 end of sale?
Yes. Ruckus ended sale of the ICX7150-24, -24P, -48, -48P and -48PF on 10 March 2025, and of the ICX7150-C12P, -C10ZP and -48ZP on 15 January 2026. Ruckus's support site now notes that all ICX 7150 models are end of sale.
How many ICX 7150 switches can be stacked?
Up to 12 in one stack, up to 10 km apart, over the SFP+ stacking and uplink ports, with no stacking module needed. Ruckus says all ICX 7150 models stack together, including the multigigabit 48ZP and C10ZP; the 8-port ICX 7150-C08P is the exception and is not sold here. The 48ZP can use four of its 10GbE ports for stacking and the other four for uplinks.
Which ICX 7150 models run silently?
The compact C12P and C10ZP and the non-PoE ICX 7150-24 and ICX 7150-48 have a fanless design. The ICX 7150-24P and ICX 7150-48P have a silent mode that runs with the fan off and a 150 W PoE budget.
How much PoE does each ICX 7150 deliver?
Per Ruckus's data sheet: C12P 124 W, C10ZP 240 W, 24P and 48P 370 W, 48PF 740 W. The 48ZP ships with one 920 W power supply and a 740 W PoE budget, and reaches 1,480 W with two power supplies.
What condition and warranty come with a Ruckus ICX 7150 switch from Townsend?
Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Ruckus software licences and support contracts are not part of our warranty.

How it differs from the ICX7150-C12P-2X1G

Ruckus lists this compact switch among the ICX 7150 switches with 2 x 10 GbE uplinks: 12 10/100/1000 Mbps PoE+ ports, 2 x 1 GbE RJ45 and 2 x 10 GbE SFP+ stacking and uplink ports, a 124 W PoE budget and the Layer 3 features OSPF, VRRP, PIM and PBR. The same switch appears in the ordering table as ICX7150-C12P-2X10GR-A, which meets the requirements of the Trade Agreements Act (TAA), and as ICX7150-C12P-2X10GR-RMT3 with three-year remote support.

Its sister ICX7150-C12P-2X1G gets to the same uplinks with the license BR-ICX-7150C-21U210R-P-01, which upgrades the 12 port compact switches from 2 x 1 GbE SFP to 2 x 10 GbE SFP+ stacking and uplink ports and adds the same Layer 3 features. Here both come as shipped. Ruckus stacks ICX 7150 switches up to 12 per stack, and up to 10 km apart over standard optics or cables.

Sister listing: ICX7150-C12P-2X1G

Maker documents: RUCKUS ICX 7150 Switch Data Sheet

Ruckus (Brocade) ICX7150-C12P-2X10GR / 12-port 10/100/1000 PoE+ compact fanless switch, 124W PoE budget, 2x 1GbE RJ-45 + 2x 10GbE SFP+ uplinks, advanced Layer 3 (OSPF/VRRP/PIM/PBR) included

WHAT'S INCLUDED

One (1) Brocade ICX7150-C12P-2X10GR. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed ICX7150-C12P-2X10GR was tested by Townsend Networks technicians before listing. The test process is on the testing process.
