ICX7150-48PF-4X1G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 1GbE RJ45

ICX7150-48PF-4X1G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 1GbE RJ45

Condition
Refurbished, tested & guaranteed
WARRANTY & RETURNS
ICX7150-48PF-4X1G has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

$985

Free US ground shipping

Orders placed by 12pm ship the same day.

Request a quote415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

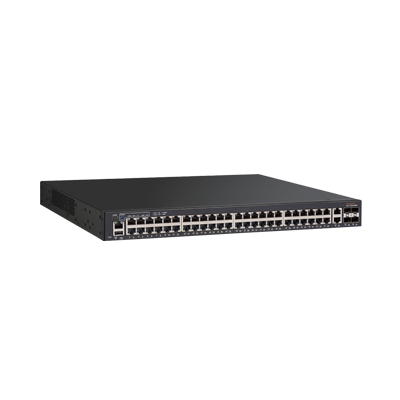

The Brocade ICX7150-48PF-4X1G is a switch from the Brocade ICX7150 family with 48 ports of 1GbE PoE+ RJ45, 2 ports of 1GbE RJ45 and AC power. It has 54 ports in all. It runs RUCKUS FastIron. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Model
ICX7150-48PF-4X1G
Network Ports
48 × 1GbE
Connectors
RJ45, SFP
Type
Switch
Condition
Refurbished, tested & guaranteed

Technical details

BrandBrocade
FamilyICX7150
Uplinks4x 1GbE SFP, 2x 1GbE RJ45
Total ports54
PoEYes
PoE standard802.3at
PoE budget740 W
Operating systemRUCKUS FastIron
Rack units1U
AirflowSide-to-back
Power inputAC
Throughput180 Gbps switching capacity, 134 Mpps forwarding

Brocade datasheet

Testing process

End of sale and support

ModelAnnouncedEnd of saleNotice
Ruckus ICX 7150 (24, 24P, 48, 48P, 48PF)Ruckus notice

Questions about the Ruckus ICX7150 family

What do the ICX 7150 part number suffixes mean?
From Ruckus's ordering information: -4X1G and -2X1G models have 1GbE SFP uplinks that a Ruckus licence upgrades to 10GbE, with basic Layer 3 (static routing and RIP). -2X10G models have two 1GbE SFP and two 10GbE SFP+ stacking and uplink ports, upgradable to four 10GbE by licence, also with basic Layer 3. -4X10GR and -2X10GR models have four (or, on the compact models, two) 10GbE SFP+ stacking and uplink ports and Layer 3 features including OSPF, VRRP, PIM and PBR. On the 48ZP, -E2X10G has six 1GbE SFP and two 10GbE SFP+ ports, upgradable to eight 10GbE by licence, and the eight-port model has eight 10GbE SFP+ ports with Layer 3 features.
Is the Ruckus ICX 7150 end of sale?
Yes. Ruckus ended sale of the ICX7150-24, -24P, -48, -48P and -48PF on 10 March 2025, and of the ICX7150-C12P, -C10ZP and -48ZP on 15 January 2026. Ruckus's support site now notes that all ICX 7150 models are end of sale.
How many ICX 7150 switches can be stacked?
Up to 12 in one stack, up to 10 km apart, over the SFP+ stacking and uplink ports, with no stacking module needed. Ruckus says all ICX 7150 models stack together, including the multigigabit 48ZP and C10ZP; the 8-port ICX 7150-C08P is the exception and is not sold here. The 48ZP can use four of its 10GbE ports for stacking and the other four for uplinks.
Which ICX 7150 models run silently?
The compact C12P and C10ZP and the non-PoE ICX 7150-24 and ICX 7150-48 have a fanless design. The ICX 7150-24P and ICX 7150-48P have a silent mode that runs with the fan off and a 150 W PoE budget.
How much PoE does each ICX 7150 deliver?
Per Ruckus's data sheet: C12P 124 W, C10ZP 240 W, 24P and 48P 370 W, 48PF 740 W. The 48ZP ships with one 920 W power supply and a 740 W PoE budget, and reaches 1,480 W with two power supplies.
What condition and warranty come with a Ruckus ICX 7150 switch from Townsend?
Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Ruckus software licences and support contracts are not part of our warranty.

How the ICX7150-48PF-4X1G differs from the ICX7150-48PF-2X10G

Ruckus' ICX 7150 data sheet orders the ICX7150-48PF-4X1G as a switch with 48x10/100/1000 Mbps PoE+ ports, 2x1 GbE RJ45 uplink ports and 4x1 GbE SFP uplink ports upgradable to up to 4x10 GbE SFP+ with a licence, a 740 W PoE budget and basic Layer 3 (static routing and RIP). Its sister, the ICX7150-48PF-2X10G, has the same 48 PoE+ ports, the same 740 W budget and the same two RJ45 uplinks, but its other four uplinks are 2x1 GbE SFP and 2x10 GbE SFP+ stacking and uplink ports, which also upgrade to 4x10 GbE SFP+ with a licence.

The data sheet lists three upgrade licences for the 24 and 48 port models: BR-ICX-7150-41U210-P-01 takes the 4x1 GbE SFP ports to 2x1 GbE SFP and 2x10 GbE SFP+, BR-ICX-7150-41U410R-P-01 takes them to 4x10 GbE SFP+ and adds the Layer 3 features (OSPF, VRRP, PIM, PBR), and BR-ICX-7150-210U410R-P-01 takes the 2x1 GbE SFP and 2x10 GbE SFP+ ports to 4x10 GbE SFP+ with the same Layer 3 features. Both 48PF models are listed at 180 Gbps of switching capacity and 134 Mpps of forwarding capacity.

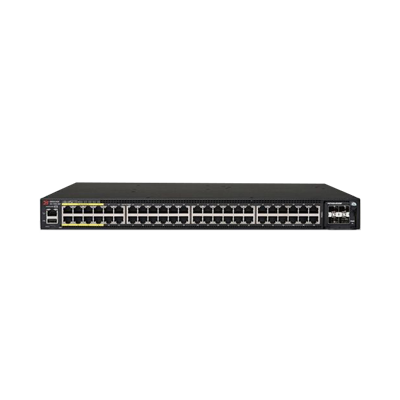

Sister listing: ICX7150-48PF-2X10G

Maker documents: Ruckus ICX 7150 switch data sheet

Ruckus ICX7150-48PF-4X1G / 48-port 1GbE PoE+ switch (740W budget), 2x RJ45 + 4x 1/10GbE SFP/SFP+ uplink/stacking ports

WHAT'S INCLUDED

One (1) Brocade ICX7150-48PF-4X1G. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed ICX7150-48PF-4X1G was tested by Townsend Networks technicians before listing. The test process is on the testing process.
