Juniper ACX7100 Routers
The Juniper ACX7100 are 1U cloud metro routers. The ACX7100-32C has 32 100GbE QSFP28 ports, which take 40GbE QSFP+, and 4 400GbE QSFP56-DD ports, with 4.8 Tbps of throughput. It runs on two hot-swappable 1600 W AC or DC power supply modules and moves air front to back (airflow out). The ACX7100-48L is built on a 4.8 Tbps forwarding capacity ASIC.
Sources: ACX7100-32C Cloud Metro Router Hardware Guide, ACX7100-48L System Overview
Selling Juniper ACX7100 hardware? Get an offer
Juniper ACX7100 facts from the maker
- ACX7100-32C
- 32 x 100GbE QSFP28 (40GbE with QSFP+) + 4 x 400GbE QSFP56-DD; 4.8 Tbps; 1U Source: ACX7100-32C Cloud Metro Router Hardware Guide
- Power supplies
- Two hot-swappable 1600 W modules: JPSU-1600W-1UACAFO (AC) or JPSU-1600W-1UDCAFO (DC) Source: ACX7100-32C Cloud Metro Router Hardware Guide
- Power draw (ACX7100-32C)
- 570 W typical at 25 C; 960 W maximum at 40 C; without optics Source: ACX7100-32C Cloud Metro Router Hardware Guide
- Fans (ACX7100-32C)
- Six fan modules, plus a fan in each power supply module Source: Cooling System and Airflow in ACX7100-32C Routers
- ACX7100-48L
- 4.8 Tbps forwarding capacity ASIC; DC power; two redundant power supply modules; 1U Source: ACX7100-48L System Overview
- CPU (ACX7100-48L)
- 2.9 GHz six-core Intel; 64 GB memory; two 100 GB SSDs Source: ACX7100-48L System Overview
- Airflow
- Front to back (airflow out, AO) Sources: ACX7100-32C Cloud Metro Router Hardware Guide, Cooling System and Airflow in ACX7100-32C Routers
Updated
Guides on the Juniper ACX7100
Rangeto
Juniper ACX7100 Routers in the catalog

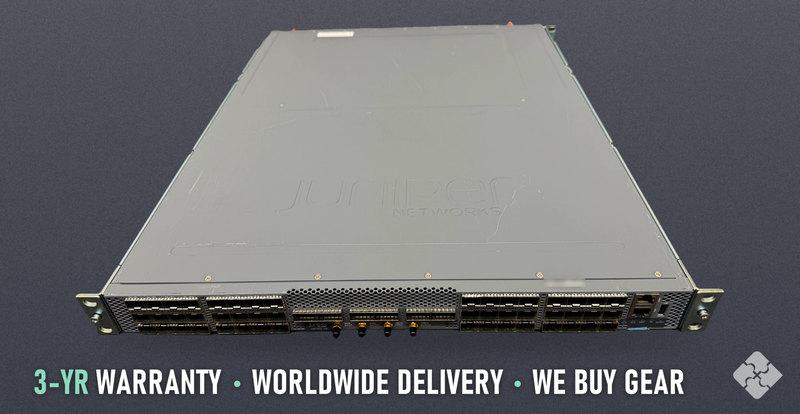

ACX7100-48L-DC-AO Juniper Router, Front-to-Back, 48x 10/25/50GbE SFP56 and 6x 400GbE QSFP56-DD
Refurbished, tested & guaranteed
In stock
$26,255Ships same day

ACX7100-32C-DC-AO Juniper Router, New Open Box, 32x 40/100GbE QSFP28 and 4x 400GbE QSFP56-DD
In stock
$27,995Ships same day
Juniper ACX7100 part numbers
| Part number | Ports | Airflow | Power | Condition | Price | Stock |
|---|---|---|---|---|---|---|
| ACX7100-48L-DC-AO | 48 × 10/25/50GbE | Front-to-back (AFO) | DC; two redundant PSMs | Refurbished, tested & guaranteed | $26,255 | In stock |
| ACX7100-32C-DC-AO | 32 × 40/100GbE | Front-to-back (AO / port-to-FRU) | Two hot-swappable 1600 W DC modules, JPSU-1600W-1UDCAFO, dual feeds | New, open box | $27,995 | In stock |
Questions about the Juniper ACX7100 family
- What does AO mean in an ACX7100 part number?
- Airflow out: the router moves air front to back, from the ports to the field replaceable units. Juniper's power supply part numbers write it AFO.Sources: Cooling System and Airflow in ACX7100-32C Routers, ACX7100-32C Cloud Metro Router Hardware Guide
- What ports does the ACX7100-32C have?
- 32 100GbE QSFP28 ports, which also take 40GbE QSFP+, and 4 400GbE QSFP56-DD ports.Source: ACX7100-32C Cloud Metro Router Hardware Guide
- What is the difference between the ACX7100-32C-AC-AO and ACX7100-32C-DC-AO?
- The power supply modules: JPSU-1600W-1UACAFO for AC or JPSU-1600W-1UDCAFO for DC, two per router, 1600 W each.Source: ACX7100-32C Cloud Metro Router Hardware Guide
