ACX7100-48L-DC-AO Juniper Router, Front-to-Back, 48x 10/25/50GbE SFP56 and 6x 400GbE QSFP56-DD

ACX7100-48L-DC-AO Juniper Router, Front-to-Back, 48x 10/25/50GbE SFP56 and 6x 400GbE QSFP56-DD

Condition
Refurbished, tested & guaranteed
WARRANTY & RETURNS
ACX7100-48L-DC-AO has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

ACX7100-48L-DC-AO price

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper ACX7100-48L-DC-AO is a router from the Juniper ACX7100 family with 48 ports of 10/25/50GbE SFP56, 6 ports of 400GbE QSFP56-DD, front-to-back airflow and DC power. It is a Layer 3 managed platform. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order, with a rack kit, power cables and a console cord; optics and transceivers are sold separately.

Model
ACX7100-48L-DC-AO
Network Ports
48 × 10/25/50GbE
Connectors
SFP56, SFP28, QSFP56-DD
Type
Router
Condition
Refurbished, tested & guaranteed

Technical details

BrandJuniper
FamilyACX7100
Uplinks6x 400GbE QSFP56-DD
Total ports54
Fastest port400GbE
Management portsManagement (MGMT) port
LayerLayer 3 (managed)
Rack units1-U form factor
AirflowFront-to-back (AFO)
Power inputDC
Throughput4.8 Tbps
Fanssix dual rotor fan modules
Power suppliesDC; two redundant PSMs
CPU2.9-Ghz six-core Intel CPU
Memory (DRAM)64-GB of memory
Flash storagetwo 100-GB enterprise-grade solid-state drives (SSDs)
Console portConsole (CON) port

ACX7100-48L-DC-AO datasheet

Testing process

What buyers ask

Which models does the ACX7100-48L come in, and can power or airflow parts be mixed?
Juniper lists four ACX7100-48L models: the ACX7100-48L-AC-AI and ACX7100-48L-DC-AI with airflow in (back-to-front), and the ACX7100-48L-AC-AO and ACX7100-48L-DC-AO with airflow out (front-to-back). The ACX7100-48L-DC-AO is the DC powered, front-to-back one. Juniper cautions against using different power supply module types (AC and DC) or different airflow modules (AI and AO) together in the same chassis.
What ports does the ACX7100-48L have?
Forty-eight SFP ports that run 50, 25 or 10 GbE, with port 47 running only at 25 or 10 Gbps, and six QSFP56-DD ports that run 400, 100 or 40 GbE. It also has a management port, a console port, a USB port and 1-PPS and 10-MHz GPS input and output ports. Juniper describes a 1U router with a 4.8 Tbps forwarding capacity ASIC.
What software and processor does the ACX7100-48L run?
Juniper configures the ACX7100-48L through the Junos OS Evolved CLI. Its Routing Engine and control plane run on a 2.9 GHz six-core Intel CPU with 64 GB of memory and two 100 GB enterprise-grade solid-state drives, and the router supports zero-touch provisioning.
Can I get a price and the quantity available for the ACX7100-48L-DC-AO?
Yes. Use Request a quote on this page with the part number ACX7100-48L-DC-AO and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the ACX7100-48L-DC-AO ship to my address?
Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise.

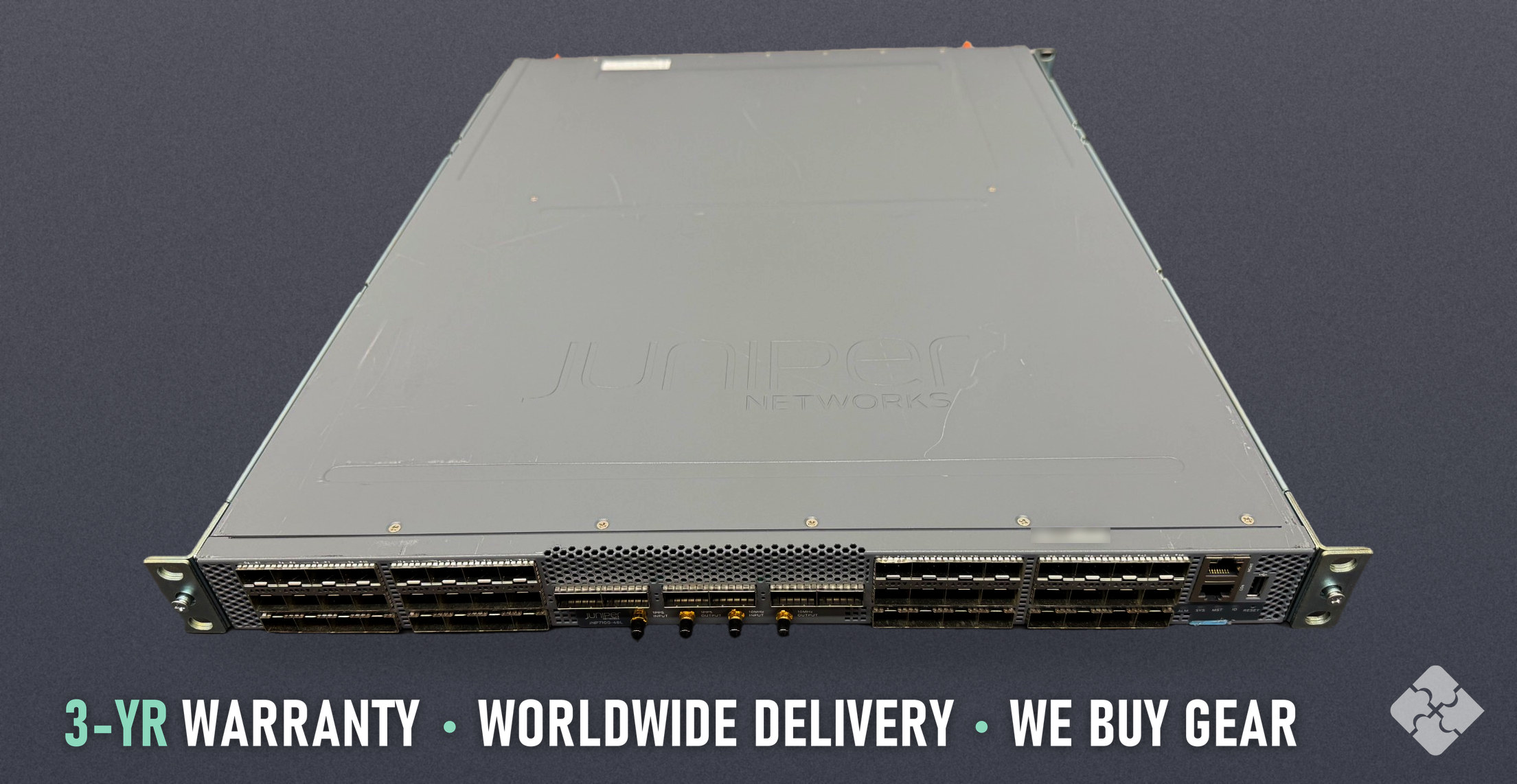

ACX7100 chassis with 48 SFP56 / 6 QSFP56-DD, DC PSU, AFO

WHAT'S INCLUDED

One (1) Juniper ACX7100-48L-DC-AO unit. Includes Rack Kit, Power Cables & Console Cord. Optics and transceivers sold separately unless noted above.

CONDITION & TESTING

ACX7100-48L-DC-AO was tested by Townsend Networks technicians before listing. The test process is on the testing process.
