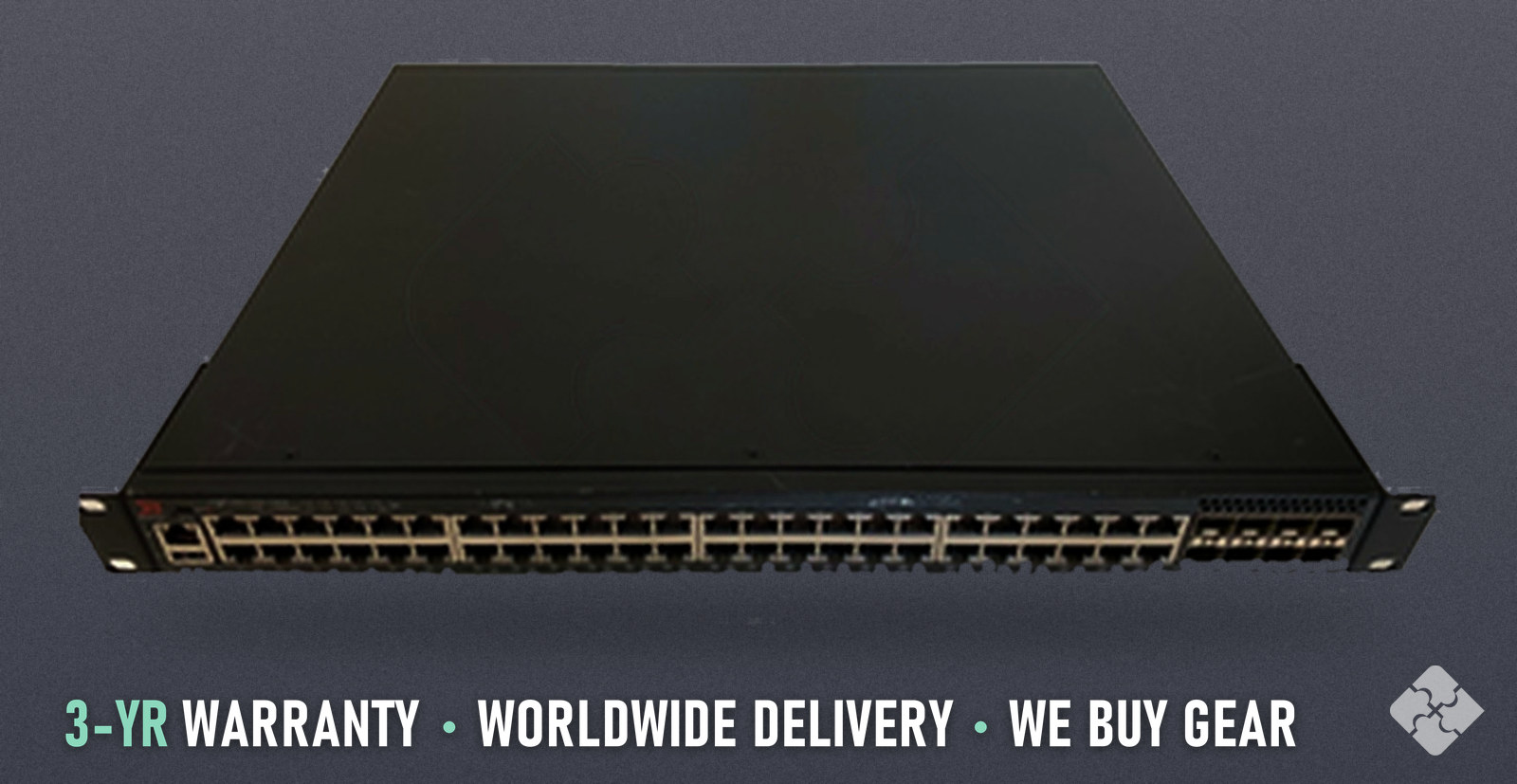

ICX7250-48P-2X10G Brocade Switch, AC Power, Refurbished, 48x 1GbE PoE+ RJ45 and 2x 10GbE SFP+

Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: ICX7250-48P-2X10G has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

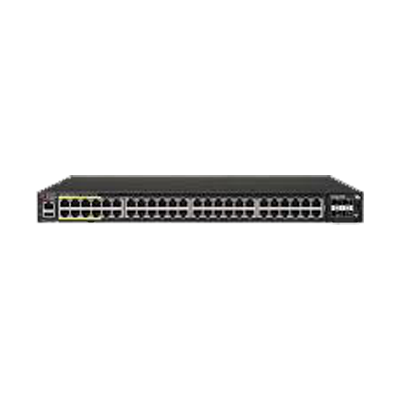

The Brocade ICX7250-48P-2X10G is a switch from the Brocade ICX7250 family with 48 ports of 1GbE PoE+ RJ45, 2 ports of 10GbE SFP+ and AC power. It has 56 ports in all. It runs RUCKUS FastIron. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Maker description: Ruckus ICX 7250-48P: 48 fixed 10/100/1000Base-T PoE/PoE+ ports, 8 SFP+ 1-GbE or 10-GbE uplink or stacking ports, EPS4000 connection

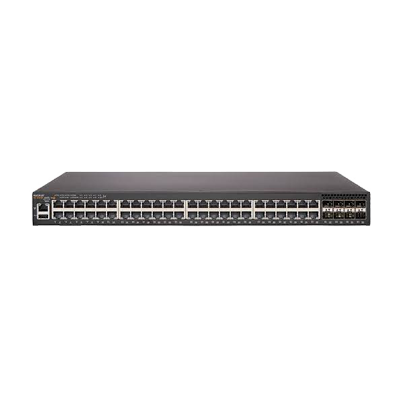

HOW IT DIFFERS: ICX7250-48P-2X10G and ICX7250-48P-8X10G are both the Ruckus ICX 7250-48P (48 x 10/100/1000 RJ-45 PoE/PoE+, 8 x SFP+ 1/10 GbE uplink or stacking). The part numbers differ in the 10 Gbps licensing of the 8 SFP+ ports: Ruckus sells a 2-port PoD license, ICX7250-2X10G-LIC-POD, for the two default stacking ports, and an 8-port PoD license, ICX7250-8X10G-LIC-POD, that together with it brings all eight ports to 10 Gbps.
End of sale: February 7, 2022

Model: ICX7250-48P-2X10G
Network Ports: 48 × 1GbE
Connectors: RJ45, SFP, SFP+
Type: Switch
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Brocade
Family	ICX7250
Uplinks	2x 10GbE SFP+, 6x 1GbE SFP
Total ports	56
Fastest port	10GbE
Management ports	One 10/100/1000 RJ-45 out-of-band port
PoE	Yes
PoE standard	802.3at
PoE budget	740 W
Operating system	RUCKUS FastIron
Rack units	1U
Airflow	Sides-to-back
Power input	AC
Throughput	256 Gbps switching, 190 Mpps forwarding
Dimensions	4.37 x 44.0 x 37 cm (1.72 x 17.32 x 14.6 in)
Weight	5.9 kg (13.0 lb)
Fans	Three fans per device
Power supplies	Integrated AC, 880 W output (740 W PoE budget); EPS4000 external option
Input voltage	100 to 240 VAC nominal (90 to 264 VAC range)
Memory (DRAM)	2 GB DDR3
Flash storage	2 GB NAND
Stacking	Up to 12 units per stack
Console port	Mini-USB

Brocade datasheet

Testing process

What buyers ask

How many PoE devices can the ICX 7250-48P power, and can more power be added?: Ruckus gives the ICX 7250-48P a maximum power draw of 942 W from the AC line, with its internal power supply supporting 48 PoE (class 3) ports or 24 PoE+ (class 4) ports. It has one connector for an EPS4000 external power supply, which can add 24 PoE ports or 12 PoE+ ports per connection or back up the system power, and the guide ties this to power budgets of 370 W or 740 W.
Which ports does the ICX 7250-48P have, and does a licence unlock the 10 Gbps SFP+ ports?: Ruckus lists the ICX 7250-48P as 48 fixed 10/100/1000Base-T PoE/PoE+ ports with 8 SFP+ ports that run at 1 Gbps or 10 Gbps for uplink or stacking. Its installation guide adds that you may need software licences to enable some SFP+ ports at the full 10 Gbps, and points to the FastIron licensing guide for the details.
How many ICX 7250 switches can be stacked, and over which ports?: For the models that support stacking, Ruckus gives a maximum stack size of 12 units. A traditional stack holds devices from only one model in a product family, and the stacking ports are the SFP+ ports in slot 2, which can serve as stacking or uplink ports.

WHAT'S INCLUDED

One (1) Brocade ICX7250-48P-2X10G. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed ICX7250-48P-2X10G was tested by Townsend Networks technicians before listing. The test process is on the testing process.
