N9K-C93240YC-FX2 Cisco Switch, AC Power, Refurbished, 48x 1/10/25GbE SFP28 and 12x 100GbE QSFP28

Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: N9K-C93240YC-FX2 has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$2,970

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Cisco N9K-C93240YC-FX2 is a switch from the Cisco N9K-C93240YC family with 48 ports of 1/10/25GbE SFP28, 12 ports of 100GbE QSFP28 and AC power. It is a Layer 3 managed platform. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

HOW IT DIFFERS: N9K-C93240YC-FX2 has 48 downlink ports at 1, 10 and 25 Gbps and 12 QSFP28 uplinks at 40 or 100 Gbps, in a switch 2.1 inches high with five fans and 298 W typical and 708 W maximum AC power. Its sister N9K-C93360YC-FX2 doubles the downlinks to 96 ports of 1, 10 and 25 Gbps with the same 12 uplinks, at 3.38 inches high with 404 W typical and 900 W maximum, and takes 1200 W AC supplies. The N9K-C93216TC-FX2 has 96 ports of 100M, 1G and 10GBASE-T.

Model: N9K-C93240YC-FX2
Network Ports: 48 × 1/10/25GbE
Connectors: SFP28, QSFP28
Type: Switch
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Cisco
Family	N9K-C93240YC
Uplinks	12x 100GbE QSFP28
Total ports	60
Fastest port	100GbE
Management ports	2 ports: 1 RJ-45 and 1 SFP+
Layer	Layer 3 (managed)
Rack units	1.2 RU
Airflow	Port-side intake and exhaust
Power input	AC
Throughput	4.8 Tbps, 2.5+ Bpps
Dimensions	2.1 x 17.3 x 23.3 in (5.3 x 43.9 x 59.1 cm)
Fans	5
Power supplies	Up to 2: 750 W AC, 1100 W AC, 1100 W DC or 1100 W HVAC/HVDC
Input voltage	AC 100 to 240 V; HVAC 100 to 277 V; DC -40 to -72 V; HVDC -240 to -380 V
Power draw (typical)	298 W (AC)
Power draw (maximum)	708 W (AC)
Operating temperature	0 to 40 °C (32 to 104 °F)
Operating humidity	5 to 95%, noncondensing
Operating altitude	0 to 4000 m (0 to 13,123 ft)
Acoustic noise	76.4 dBA at 50% fan speed, 92.1 dBA at 100%
MTBF	345,950 hours
CPU	4 cores
Memory (DRAM)	Up to 24 GB
Flash storage	128 GB SSD
MAC addresses	256,000 entries (raw table capacity)
VLANs	4096, of which 127 are reserved
Packet buffer	40 MB system buffer

Cisco datasheet

Testing process

What buyers ask

Is the N9K-C93240YC-FX2 end of life?: Cisco's product page for the Nexus 93240YC-FX2 gives its status as Available Order, with a release date of 18 December 2017.
Which power supplies and fans does the N9K-C93240YC-FX2 take, and which way does the air flow?: It takes up to two power supplies, from 750 W AC, 1100 W AC, 1100 W DC and 1100 W high-voltage AC or DC, and has five fans. Cisco sells the supplies and fans in port-side intake (PI) and port-side exhaust (PE) versions, and the data sheet gives the switch's airflow as port-side intake and exhaust. The switches use hot-swappable power supplies and fans with N+1 redundancy.
What ports and speeds does the N9K-C93240YC-FX2 have?: Forty-eight downlink ports at 1, 10 and 25 Gbps and twelve QSFP28 uplink ports that can run 40 or 100 Gbps. Cisco describes it as a 1.2RU switch with 4.8 Tbps of bandwidth and over 2.5 bpps, and lists two management ports, one RJ-45 and one SFP+, plus a USB port and an RS-232 serial port.
Which software modes does the N9K-C93240YC-FX2 run?: Cisco provides two modes of operation for the Nexus 9000 Series: Cisco NX-OS Software in standard NX-OS mode, or Cisco ACI. For the N93240YC-FX2 the data sheet lists a minimum NX-OS image of NXOS-703I7.3.

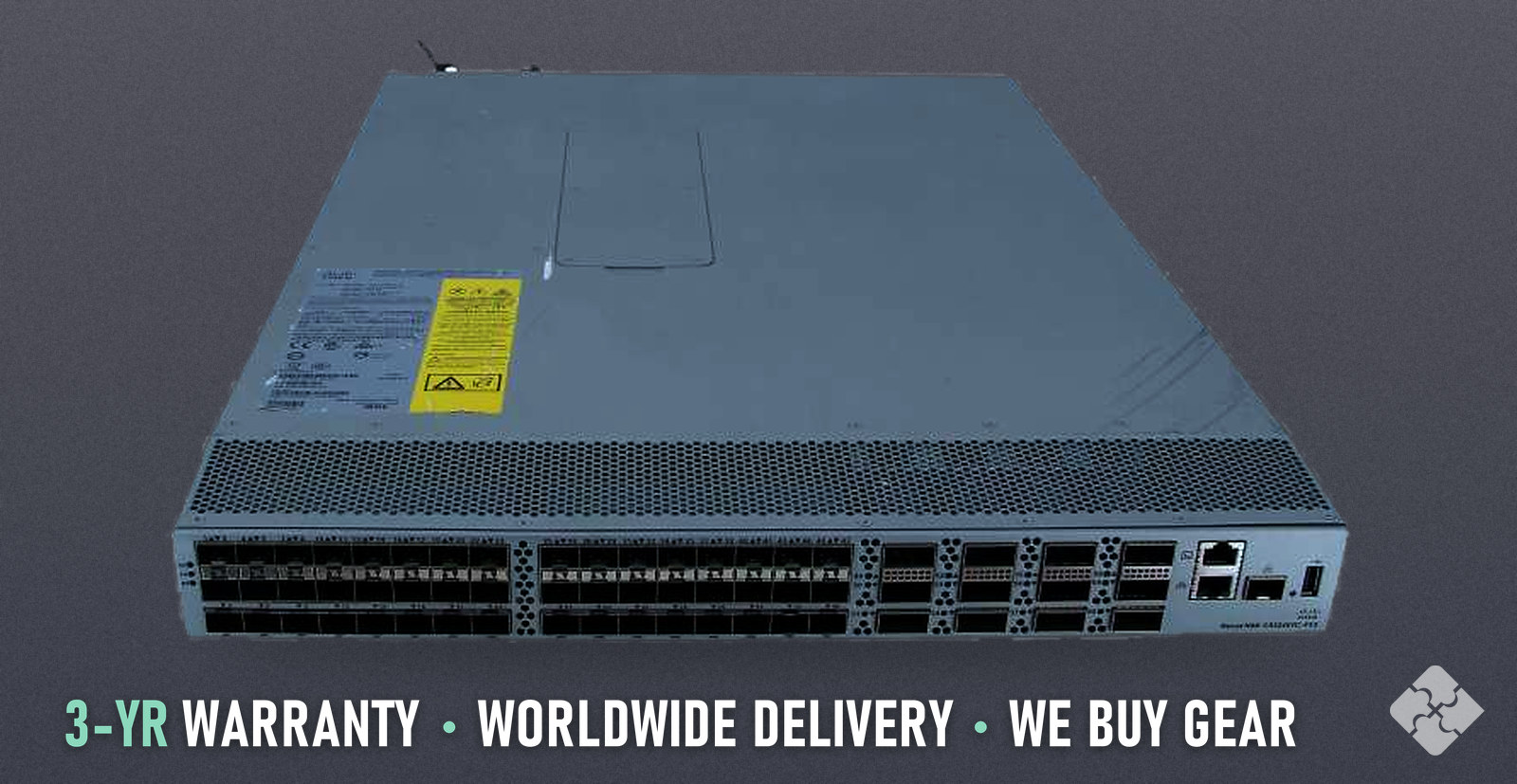

Nexus 9K Fixed with 48p 1/10G/25G SFP & 12p 40G/100G QSFP28

WHAT'S INCLUDED

One (1) Cisco N9K-C93240YC-FX2. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed N9K-C93240YC-FX2 was tested by Townsend Networks technicians before listing. The test process is on the testing process.
