DCS-7280CR3-32P4-F Arista Switch, Front-to-Back, Used, 32x 100GbE QSFP28 and 4x 400GbE OSFP
- Condition
- Used, tested & guaranteed
- WARRANTY & RETURNS
- DCS-7280CR3-32P4-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
DCS-7280CR3-32P4-F price
$22,995
Free US ground shippingA firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

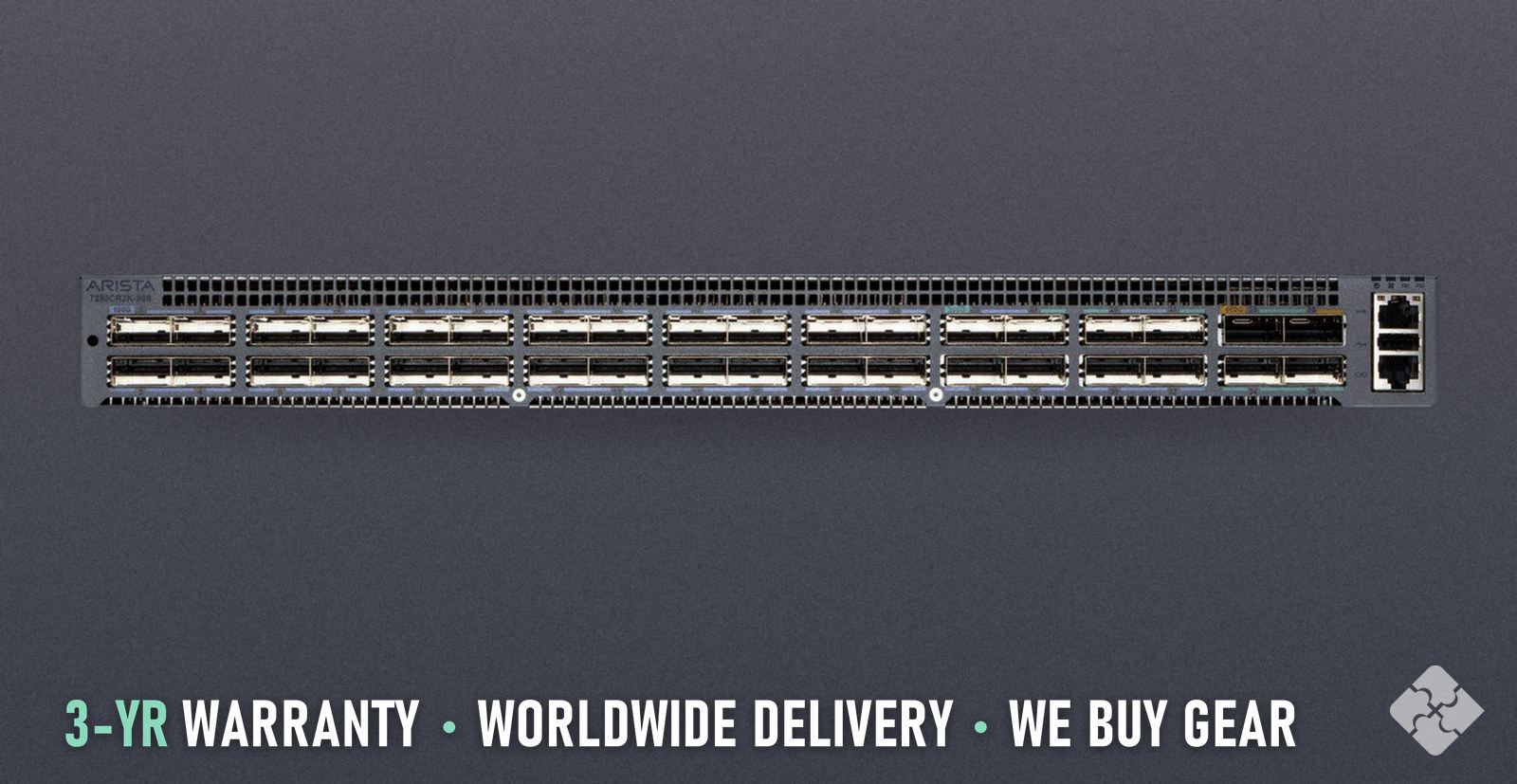

The Arista DCS-7280CR3-32P4-F is a switch from the Arista 7280CR3 family with 32 ports of 100GbE QSFP28, 4 ports of 400GbE OSFP, front-to-back airflow and AC power. It is a Layer 3 managed platform that runs Arista EOS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Other versions
- DCS-7280CR3-32P4-R$22,995
Refurbished, tested & guaranteedAirflow: Back-to-frontIn stock
- HOW IT DIFFERS
- DCS-7280CR3-32P4-F has front-to-back airflow; its sister DCS-7280CR3-32P4-R has back-to-front airflow.
- Model
- DCS-7280CR3-32P4-F
- Network Ports
- 32 × 100GbE
- Connectors
- QSFP28, OSFP
- Type
- Switch
- Condition
- Used, tested & guaranteed
Technical details
| Brand | Arista |
|---|---|
| Family | 7280CR3 |
| Uplinks | 4x 400GbE OSFP |
| Total ports | 36 |
| Fastest port | 400GbE |
| Management ports | 1 (100/1000) |
| Layer | Layer 3 (managed) |
| Operating system | Arista EOS |
| Rack units | 1 U |
| Airflow | Front-to-back |
| Power input | AC |
| Throughput | 4.8 Tbps, 2 Bpps |
| Dimensions | 17.3 x 1.72 x 22.0 in (43.99 x 4.37 x 55.83 cm), printed WxHxD |
| Weight | 27 lbs (12.27 kg) |
| Fans | 3 hot-swappable (N+1 redundant) |
| Power supplies | 2 hot-swap (1+1 redundant); PWR-1011 (AC or DC) |
| Input voltage | 100-240V AC (PWR-1011 AC) |
| Power draw (typical) | 535 W |
| Power draw (maximum) | 851 W |
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 70°C (-40 to 158°F) |
| Operating altitude | 0 to 10,000 ft, (0-3,000m) |
| CPU | Quad-Core x86 |
| Memory (DRAM) | 8 GB (64 GB optional) |
| Flash storage | 8 GB |
| VLANs | 4096 VLANs |
| Packet buffer | 8 GB |
| Latency | From 3.8 us |
| Console port | 1 (RJ-45) RS-232 serial |
| USB port | 1 |
| Certifications | FCC Class A (United States); ICES-003 (Canada); CE (European Union) |
What buyers ask
- Can I get a price and the quantity available for the DCS-7280CR3-32P4-F?
- Yes. Use Request a quote on this page with the part number DCS-7280CR3-32P4-F and the quantity you need. A firm price and the quantity available come back, typically the same business day.
- Does the DCS-7280CR3-32P4-F ship to my address?
- Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise.
- What condition is the DCS-7280CR3-32P4-F in?
- The DCS-7280CR3-32P4-F on this page is Used, Tested & Guaranteed.
Questions and answers
- What ports does the DCS-7280CR3-32P4-F have?
- The DCS-7280CR3-32P4-F has 32 × 100GbE, with uplinks of 4x 400GbE OSFP and 36 data ports in all.
- What is the throughput of the DCS-7280CR3-32P4-F?
- The DCS-7280CR3-32P4-F has a throughput of 4.8 Tbps, 2 Bpps.
- Which way does the air flow on the DCS-7280CR3-32P4-F?
- The airflow of the DCS-7280CR3-32P4-F is front-to-back.
- What power does the DCS-7280CR3-32P4-F use?
- The DCS-7280CR3-32P4-F uses AC.
- How much power does the DCS-7280CR3-32P4-F draw?
- The typical power draw of the DCS-7280CR3-32P4-F is 535 W, and its maximum is 851 W.
- What are the size and weight of the DCS-7280CR3-32P4-F?
- The DCS-7280CR3-32P4-F measures 17.3 x 1.72 x 22.0 in (43.99 x 4.37 x 55.83 cm), printed WxHxD and weighs 27 lbs (12.27 kg).
How the DCS-7280CR3-32P4-F differs
Here is how Arista's documents set the DCS-7280CR3-32P4-F apart from the DCS-7280CR3-32P4-R. Airflow: front to rear air on the DCS-7280CR3-32P4-F, against rear to front air on the DCS-7280CR3-32P4-R.
Both are listed with the same rack units: 1 U. Both are listed with the same weight: 27 lbs (12.27 kg). Both are listed with the same dimensions (height x width x depth): 17.3 x 1.72 x 22.0 in (43.99 x 4.37 x 55.83 cm), printed WxHxD.
Maker documents: 7280R3 Series Data Center Switch Router - Data Sheet
DCS-7280CR3-32P4-F Arista 7280R3, 32x100GbE QSFP and 4x400GbE OSFP switch router, front to rear air, 2 x AC
WHAT'S INCLUDED
One (1) Arista DCS-7280CR3-32P4-F. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
DCS-7280CR3-32P4-F was tested by Townsend Networks technicians before listing. The test process is on the testing process.
Selling your Arista DCS-7280CR3-32P4-F? We buy used network gear.
Questions about the DCS-7280CR3-32P4-F? Call 415-626-4231 or email sales@townsendnetworks.com.
