What ports does the EX4400-48F have?

It has 48 × 1GbE; uplinks: 2x 100GbE QSFP28. 50 data ports in all. Connectors: SFP, SFP+, QSFP28.

What is the throughput of the EX4400-48F?

Throughput is 912 Gbps bidirectional switching capacity, 678 Mpps.

EX4400-48F

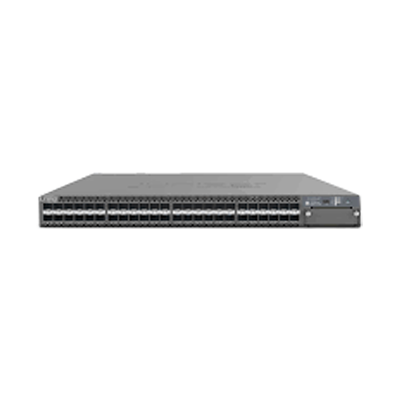

EX4400-48F Juniper EX4400 switch, 48x 1GbE SFP and 2x 40/100GbE QSFP28

Name: EX4400-48F Juniper EX4400 switch, 48x 1GbE SFP and 2x 40/100GbE QSFP28
Brand: Juniper
SKU: EX4400-48F
Price: 3500.00 USD
Availability: InStock

Used, tested & guaranteedIn stock

Condition: Used. Tested & Guaranteed

EX4400-48F, in stock, ships worldwide.

$3,500

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: EX4400-48F
Network Ports: 48 × 1GbE
Connectors: SFP, SFP+, QSFP28
Type: Switch
Condition: Used, tested & guaranteed

Warranty terms·Testing process

Questions and answers

What ports does the EX4400-48F have?: It has 48 × 1GbE; uplinks: 2x 100GbE QSFP28. 50 data ports in all. Connectors: SFP, SFP+, QSFP28.
What is the throughput of the EX4400-48F?: Throughput is 912 Gbps bidirectional switching capacity, 678 Mpps.
Which way does the air flow on the EX4400-48F?: Airflow is front-to-back.
What power does the EX4400-48F use?: It uses AC.
What are the size and weight of the EX4400-48F?: Dimensions: 1.72 in / 4.3688 cm H x 17.39 in / 44.1706 cm W x 15.71 in / 39.9034 cm D. Weight: 12.79 lb / 5.8 kg.
How much rack space does the EX4400-48F take?: It takes 1U of rack space.

The Juniper EX4400-48F is a switch from the Juniper EX4400 family with 48 ports of 1GbE SFP and 2 ports of 40/100GbE QSFP28. It runs Junos OS, with a 1U rack-mount form factor. This unit is used: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Juniper EX4400-48F / 48-port fiber switch: 36x SFP 1GbE + 12x SFP+ 10GbE access ports, 2x fixed QSFP28 40GbE/100GbE uplink, 550W AC power (1+1 redundant), 912Gbps switching capacity, 1U

TECHNICAL DETAILS

Brand: Juniper Family: EX4400 Uplinks: 2x 100GbE QSFP28 Total ports: 50 Fastest port: 100GbE Management ports: 1 x RJ-45 Operating system: Junos OS Form factor: 1U rack-mount Rack units: 1U Airflow: Front-to-back Power input: AC Throughput: 912 Gbps bidirectional switching capacity, 678 Mpps Dimensions: 1.72 in / 4.3688 cm H x 17.39 in / 44.1706 cm W x 15.71 in / 39.9034 cm D Weight: 12.79 lb / 5.8 kg Fans: 2 fan modules (EX4400-FAN), 1+1 redundancy Power supplies: 2 PSUs, 1+1 redundancy; AC model JPSU-550-C-AC-AFO Operating temperature: 32° through 113° F / 0° through 45° C Storage temperature: -40° through 158° F / -40° through 70° C Operating humidity: 5% through 90% (noncondensing) Operating altitude: 6000 ft / 1829 m Acoustic noise: 43.35 dB (max) CPU: 2.2 GHz Quad-Core Intel x86 CPU Memory (DRAM): 4 GB Flash storage: 20 GB (Internal Storage Size) MAC addresses: 112 (thousands) per system IPv4 routes: 130 (thousands) unicast prefixes (RIB); 81 (thousands) host routes IPv6 routes: 87 (thousands) unicast prefixes (RIB); 40 (thousands) host routes VLANs: 4093 VLAN IDs Jumbo frames: 9216 bytes Console port: USB-C console port (front); console port labeled CON (rear) USB port: 1 x Type A Warranty: 3 years, Townsend Networks Returns: 30 days
