What ports does the ICX7650-48ZP-E2 have?

It has 48 × 1GbE (24 × 10GbE); uplinks: 4x 100GbE QSFP28. 52 data ports in all. Connectors: RJ45, QSFP28.

What is the throughput of the ICX7650-48ZP-E2?

Throughput is 1.128 Tbps switching capacity, 839 Mpps forwarding.

Which way does the air flow on the ICX7650-48ZP-E2?

Airflow is front-to-back (2x hot-swap AC PSU + 2x fan).

What power does the ICX7650-48ZP-E2 use?

It uses dual AC, PoE budget 1500 W, 802.3at/802.3bt (PoE+, up to 90W on 24 multi-gig ports).

Is the Ruckus ICX 7650-48ZP end of life?

Ruckus ended the sale of the Ruckus ICX 7650-48ZP on December 24, 2024. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

ICX7650-48ZP-E2

ICX7650-48ZP-E2 Brocade ICX7650 switch, 48x 1GbE PoE+ RJ45 (24 × 10GbE) and 4x 100GbE QSFP28

Name: ICX7650-48ZP-E2 Brocade ICX7650 switch, 48x 1GbE PoE+ RJ45 (24 × 10GbE) and 4x 100GbE QSFP28
Brand: Brocade
SKU: ICX7650-48ZP-E2
Price: 1975.00 USD
Availability: InStock

Refurbished, tested & guaranteedIn stock

Condition: Refurbished. Tested & Guaranteed

ICX7650-48ZP-E2, in stock, ships worldwide.

$1,975

Orders placed by 12pm ship the same day.

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: ICX7650-48ZP-E2
Network Ports: 48 × 1GbE (24 × 10GbE)
Connectors: RJ45, QSFP28
Type: Switch
Condition: Refurbished, tested & guaranteed

Warranty terms·Testing process

End of sale and support

Model	Announced	End of sale	Notice
Ruckus ICX 7650-48ZP	2024-06-24	2024-12-24	Ruckus notice

Questions and answers

What ports does the ICX7650-48ZP-E2 have?: It has 48 × 1GbE (24 × 10GbE); uplinks: 4x 100GbE QSFP28. 52 data ports in all. Connectors: RJ45, QSFP28.
What is the throughput of the ICX7650-48ZP-E2?: Throughput is 1.128 Tbps switching capacity, 839 Mpps forwarding.
Which way does the air flow on the ICX7650-48ZP-E2?: Airflow is front-to-back (2x hot-swap AC PSU + 2x fan).
What power does the ICX7650-48ZP-E2 use?: It uses dual AC, PoE budget 1500 W, 802.3at/802.3bt (PoE+, up to 90W on 24 multi-gig ports).
How much rack space does the ICX7650-48ZP-E2 take?: It takes 1U of rack space.
What software does the ICX7650-48ZP-E2 run?: It runs RUCKUS FastIron.
Is the Ruckus ICX 7650-48ZP end of life?: Ruckus ended the sale of the Ruckus ICX 7650-48ZP on December 24, 2024. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

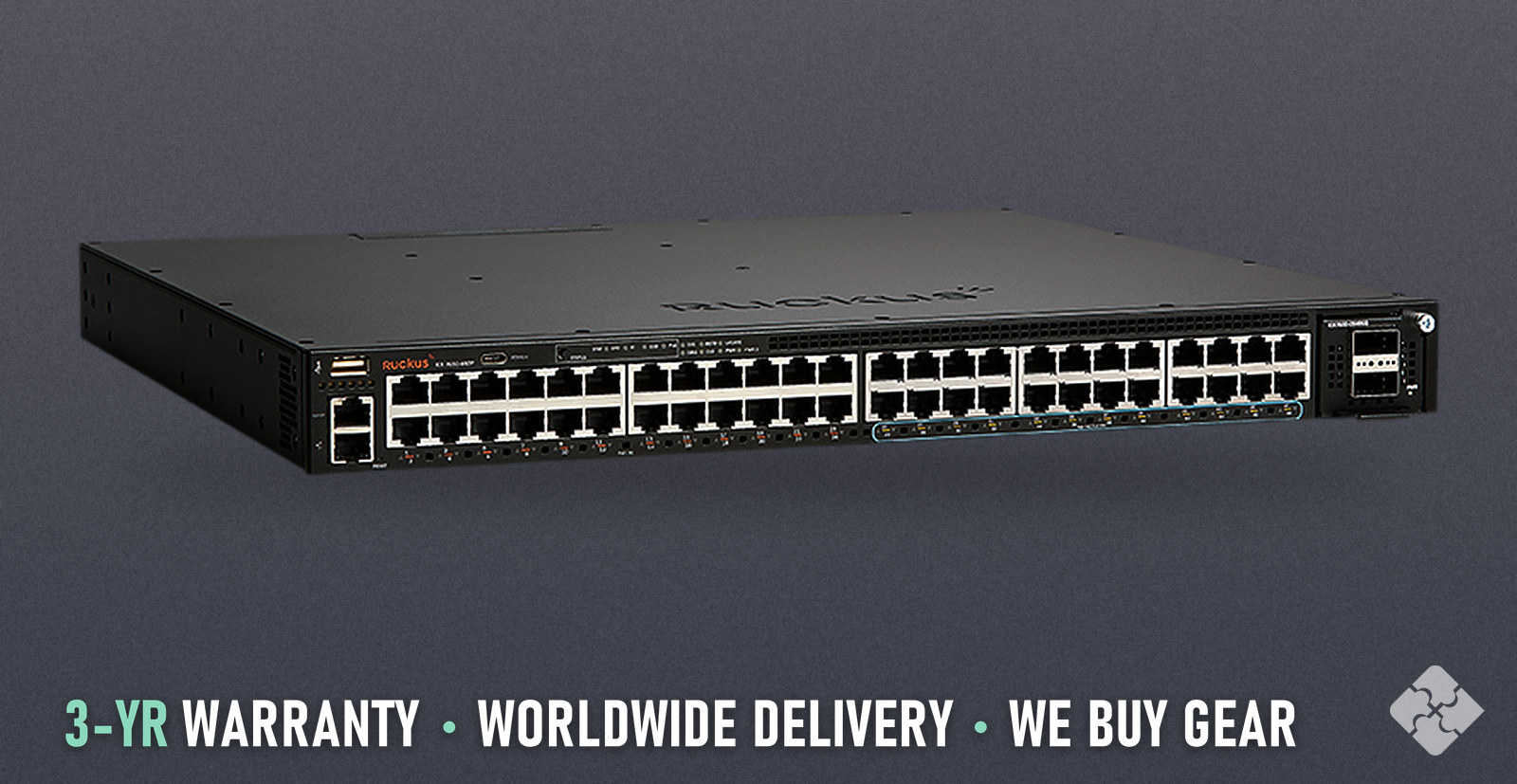

The Brocade ICX7650-48ZP-E2 is a switch from the Brocade ICX7650 family with 48 ports of 1GbE PoE+ RJ45 (24 × 10GbE) and 4 ports of 100GbE QSFP28. It runs RUCKUS FastIron, with a 1U rack-mount form factor. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. What ships with it is listed under What's included.

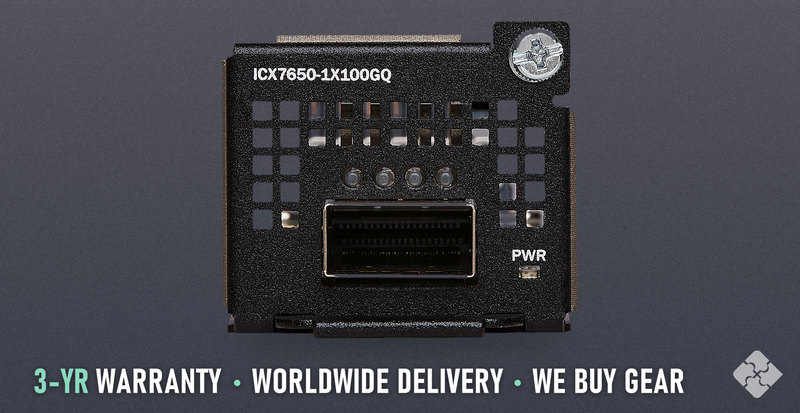

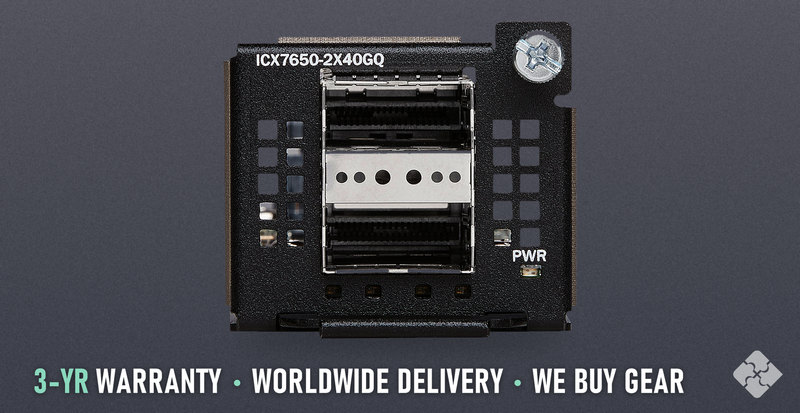

Ruckus ICX7650-48ZP-E2 / 48-port multi-gig PoE+ switch: 24x 100M-10GbE RJ-45 (up to 90W 802.3bt) + 24x 1GbE RJ-45 PoE+, 4x fixed QSFP stacking/uplink ports (40GbE/100GbE), 2x 1000W AC hot-swap PSU + 2 fans included, 1500W PoE budget, 1U. QSFP uplink module sold separately.

TECHNICAL DETAILS

Brand: Brocade Family: ICX7650 Uplinks: 4x 100GbE QSFP28 Total ports: 52 Fastest port: 100GbE PoE: PoE+ (802.3at) PoE standard: 802.3at/802.3bt (PoE+, up to 90W on 24 multi-gig ports) PoE budget: 1500 W Operating system: RUCKUS FastIron Form factor: 1U rack-mount Rack units: 1U Airflow: Front-to-back (2x hot-swap AC PSU + 2x fan) Power input: dual AC Throughput: 1.128 Tbps switching capacity, 839 Mpps forwarding Power supplies: Redundant power option; hot swap internal power supplies Stacking: Max 12 switches per stack; 2400 Gb/s aggregate stack bandwidth (maximum) End of sale: Discontinued December 31, 2023 Warranty: 3 years, Townsend Networks Returns: 30 days

MAKER'S DOCUMENT

https://www.ruckusnetworks.com/products/ethernet-switches/itemicx7650-48zp/

WHAT'S INCLUDED

One (1) Brocade ICX7650-48ZP-E2 switch, ICX7650-48ZP bare switch, 2x RPS16-E 1000W AC PSU (front-to-back airflow) and 2x ICX-FAN12-E fan (front-to-back airflow). Includes a rack-mount kit and the power cables to match the switch.
