What ports does the MX80-T-AC have?

The MX80-T-AC has 20 × 1GbE, with uplinks of 4x 10GbE XFP and 24 data ports in all.

Is the Juniper MX40 / MX80 end of life?

Juniper ended the sale of the Juniper MX40 / MX80 on June 30, 2021. Its support ended on June 30, 2026. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

MX80-T-AC Juniper Router, AC Power, Used, 20x 1GbE SFP and 4x 10GbE XFP

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: MX80-T-AC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$2,205

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MX80-T-AC is a router with 20 ports of 1GbE SFP, 4 ports of 10GbE XFP and AC power. It runs Junos OS, with a 2U rack-mount form factor. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. What ships with it is listed under What's included.

HOW IT DIFFERS: This MX80-T-AC listing is a used unit with 20x 1GbE SFP and 4x 10GbE XFP. The other MX80-T-AC listing is a used unit with 4x 10GbE XFP. MX80-T-AC is the MX80 AC chassis with timing support, which is what the T in the code means in Juniper's model table. It uses the same PWR-MX80-AC supply as the MX80-AC, 500 W maximum output at 90 to 264 VAC, with one or two supplies, and the same MIC slots and four built-in 10-Gigabit Ethernet ports. Its sister MX80-AC is the AC chassis without timing support.

Model: MX80-T-AC
Network Ports: 20 × 1GbE
Connectors: XFP, SFP
Type: Router
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Uplinks	4x 10GbE XFP
Total ports	24
Fastest port	10GbE
Operating system	Junos OS
Form factor	2U rack-mount
Power input	AC

Juniper datasheet

Testing process

End of sale and support

Model	Announced	End of sale	End of support	Notice
Juniper MX40 / MX80	2020-06-30	2021-06-30	2026-06-30	Juniper notice

Questions about the Juniper MX80 family

What ports does the MX80-T-AC have?: The MX80-T-AC has 20 × 1GbE, with uplinks of 4x 10GbE XFP and 24 data ports in all.
What power does the MX80-T-AC use?: The MX80-T-AC uses AC.
Is the Juniper MX40 / MX80 end of life?: Juniper ended the sale of the Juniper MX40 / MX80 on June 30, 2021. Its support ended on June 30, 2026. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

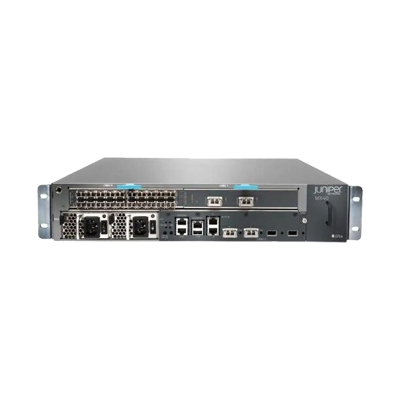

Juniper MX80-T-AC / MX80 Universal Edge Router chassis with timing support (PTP/1588) and dual redundant PWR-MX80-AC power supplies, populated with 1x MIC-3D-20GE-SFP (20-port Gigabit Ethernet SFP), plus 4x built-in 10GbE XFP ports. 2U rack-mount, up to 80 Gbps aggregate throughput, runs Junos. One MIC slot remains open.

WHAT'S INCLUDED

One (1) Juniper MX80-T-AC router, MIC-3D-20GE-SFP and PWR-MX80-AC.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed MX80-T-AC was tested by Townsend Networks technicians before listing. The test process is on the testing process.
