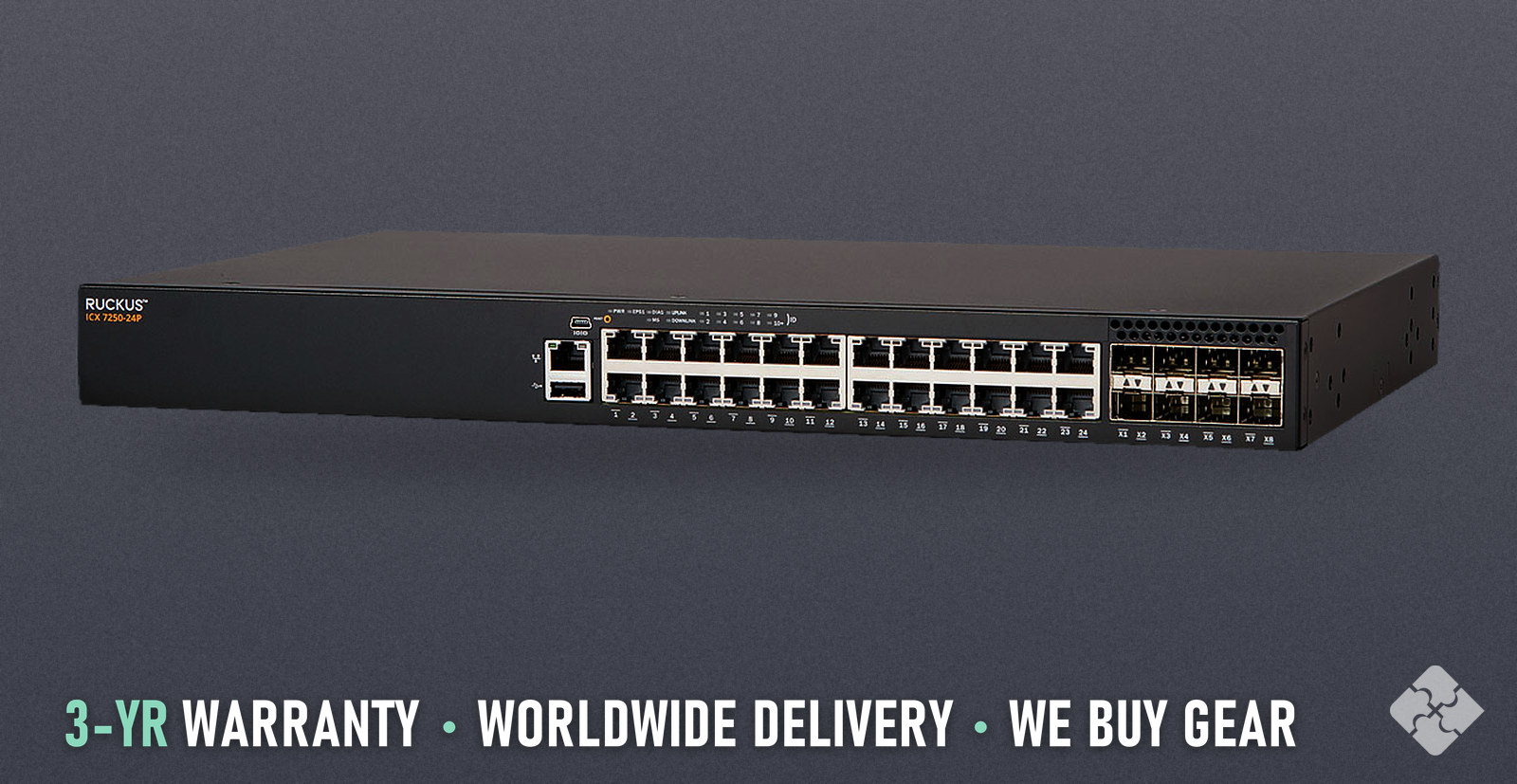

ICX7250-24P-8X10G Brocade Switch, AC Power, Used, 24x 1GbE PoE+ RJ45 and 8x 10GbE SFP+

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: ICX7250-24P-8X10G has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Brocade ICX7250-24P-8X10G is a switch from the Brocade ICX7250 family with 24 ports of 1GbE PoE+ RJ45, 8 ports of 10GbE SFP+ and AC power. It runs RUCKUS FastIron. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Maker description: Ruckus ICX 7250-24P: 24 fixed 10/100/1000Base-T PoE/PoE+ ports, 8 SFP+ 1-GbE or 10-GbE uplink or stacking ports, EPS4000 connection
HOW IT DIFFERS: ICX7250-24P-8X10G and ICX7250-24P-2X10G are both the Ruckus ICX 7250-24P (24 x 10/100/1000 RJ-45 PoE/PoE+, 8 x SFP+ 1/10 GbE uplink or stacking). The part numbers differ in the 10 Gbps licensing of the 8 SFP+ ports: Ruckus sells a 2-port PoD license, ICX7250-2X10G-LIC-POD, for the two default stacking ports, and an 8-port PoD license, ICX7250-8X10G-LIC-POD, that together with it brings all eight ports to 10 Gbps.
End of sale: February 7, 2022

Model: ICX7250-24P-8X10G
Network Ports: 24 × 1GbE
Connectors: RJ45, SFP+
Type: Switch
Condition: Used, tested & guaranteed

Technical details

Brand	Brocade
Family	ICX7250
Uplinks	8x 10GbE SFP+
Total ports	32
Fastest port	10GbE
Management ports	One 10/100/1000 RJ-45 out-of-band port
PoE	Yes
PoE standard	802.3at
PoE budget	370 W
Operating system	RUCKUS FastIron
Rack units	1U
Airflow	Sides-to-back
Power input	AC
Dimensions	4.37 x 44.0 x 28 cm (1.72 x 17.32 x 11 in)
Weight	4.7 kg (10.3 lb)
Fans	Two fans per device
Power supplies	Integrated AC, 525 W output (370 W PoE budget); EPS4000 external option
Input voltage	100 to 240 VAC nominal (90 to 264 VAC range)
Memory (DRAM)	2 GB DDR3
Flash storage	2 GB NAND
Stacking	Up to 12 units per stack
Console port	Mini-USB

Brocade datasheet

Testing process

WHAT'S INCLUDED

One (1) Brocade ICX7250-24P-8X10G. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed ICX7250-24P-8X10G was tested by Townsend Networks technicians before listing. The test process is on the testing process.
