What ports does the SRX4600-SYS-JB-AC have?

The SRX4600-SYS-JB-AC has 8 × 1/10GbE, with uplinks of 4x 40/100GbE QSFP28 and 12 data ports in all.

Which way does the air flow on the SRX4600-SYS-JB-AC?

The airflow of the SRX4600-SYS-JB-AC is front to back.

How much power does the SRX4600-SYS-JB-AC draw?

The typical power draw of the SRX4600-SYS-JB-AC is 650 W (listed as average power consumption).

What are the size and weight of the SRX4600-SYS-JB-AC?

The SRX4600-SYS-JB-AC measures With AC PEMs: 17.4 x 1.7 x 27.29 in (44.19 x 4.32 x 69.32 cm), W x H x D.

How much rack space does the SRX4600-SYS-JB-AC take?

The SRX4600-SYS-JB-AC takes 1 U of rack space.

SRX4600-SYS-JB-AC Juniper Firewall, Front-to-Back, Used, 8x 1/10GbE SFP+ and 4x 100GbE QSFP28

Condition: Used, tested & guaranteed
WARRANTY & RETURNS: SRX4600-SYS-JB-AC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

Price on request

Request a quote 415-626-4231

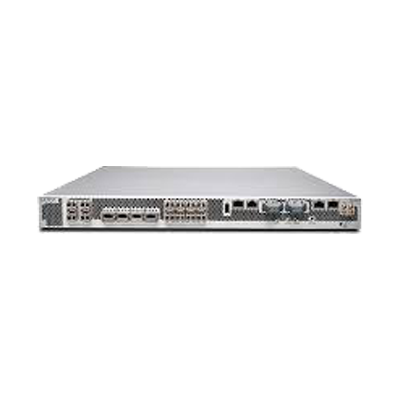

The Juniper SRX4600-SYS-JB-AC is a firewall from the Juniper SRX4600 family with 8 ports of 1/10GbE SFP+, 4 ports of 100GbE QSFP28, front-to-back airflow and AC power. It runs Junos OS, with a 1U rack-mount form factor. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

Request a quote

This item is quote-priced. Send the details and we'll reply with a firm price, typically the same business day.

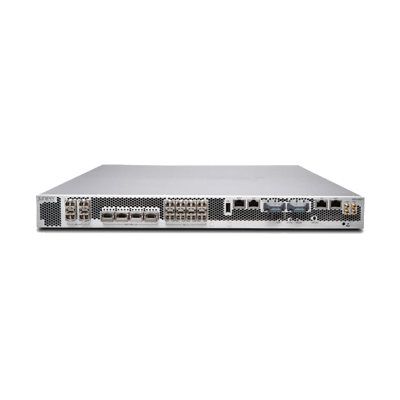

HOW IT DIFFERS: SRX4600-SYS-JB-AC is the SRX4600 bundle that Juniper's data sheet lists with hardware (4x100GbE, 8x10GbE, two AC power supply units, five fan trays, cables and rack mount kit) and Junos Software Base for firewall, NAT, IPsec, routing and MPLS. Its sister SRX4600-AC is the AC-powered SRX4600 firewall hardware that Juniper's hardware specifications list with 2 power supplies (1+1), 5 fan modules (4+1), 8 SFP+ ports, 4 QSFP28 ports and 256 GB of DRAM.

Model: SRX4600-SYS-JB-AC
Network Ports: 8 × 1/10GbE
Connectors: SFP+, QSFP28
Type: Firewall
Condition: Used, tested & guaranteed

Technical details

Brand	Juniper
Family	SRX4600
Uplinks	4x 40/100GbE QSFP28
Total ports	12
Fastest port	100GbE
Management ports	RJ-45 (1 Gbps)
Operating system	Junos OS
Form factor	1U rack-mount
Rack units	1 U
Airflow	Front to back
Power input	AC
Dimensions	With AC PEMs: 17.4 x 1.7 x 27.29 in (44.19 x 4.32 x 69.32 cm), W x H x D
Power supplies	2x 1600 W AC-DC PSU redundant (1+1)
Power draw (typical)	650 W (listed as average power consumption)
Heat output	2218 BTU/hour (listed as average heat dissipation)
Operating temperature	32° to 104° F (0° to 40° C)
Operating humidity	5% to 90% non-condensing
Acoustic noise	69 dBA at normal fan speed,87 dBA at full fan speed
MTBF	111,626 hours (12.75 years)
Memory (DRAM)	256 GB
Flash storage	Secondary storage (SSD): 2x 1 TB M.2 SSD
IPv4 routes	4 million/1.2 million (RIB/FIB)
Console port	RJ-45 (RS232)
USB port	1 (USB 2.0, Type A)
Certifications	FCC Class A; RoHS 2; Designed for NEBS Level 3

Juniper datasheet

Testing process

What buyers ask

Can I get a price and the quantity available for the SRX4600-SYS-JB-AC?: Yes. Use Request a quote on this page with the part number SRX4600-SYS-JB-AC and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the SRX4600-SYS-JB-AC ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the SRX4600-SYS-JB-AC in?: The SRX4600-SYS-JB-AC on this page is Used, Tested & Guaranteed.

Questions and answers

What ports does the SRX4600-SYS-JB-AC have?: The SRX4600-SYS-JB-AC has 8 × 1/10GbE, with uplinks of 4x 40/100GbE QSFP28 and 12 data ports in all.
Which way does the air flow on the SRX4600-SYS-JB-AC?: The airflow of the SRX4600-SYS-JB-AC is front to back.
What power does the SRX4600-SYS-JB-AC use?: The SRX4600-SYS-JB-AC uses AC.
How much power does the SRX4600-SYS-JB-AC draw?: The typical power draw of the SRX4600-SYS-JB-AC is 650 W (listed as average power consumption).
What are the size and weight of the SRX4600-SYS-JB-AC?: The SRX4600-SYS-JB-AC measures With AC PEMs: 17.4 x 1.7 x 27.29 in (44.19 x 4.32 x 69.32 cm), W x H x D.
How much rack space does the SRX4600-SYS-JB-AC take?: The SRX4600-SYS-JB-AC takes 1 U of rack space.

Juniper SRX4600-SYS-JB-AC / Next-Generation Firewall system, AC-powered, 8x 1/10GbE SFP+ plus 4x 40/100GbE QSFP28 ports (each QSFP28 breaks out to 4x10GbE, up to 24x10GbE in all), 256GB RAM, 2x 1TB M.2 SSD, dual AC PSU, 400 Gbps firewall throughput, 1U

WHAT'S INCLUDED

One (1) Juniper SRX4600-SYS-JB-AC.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed SRX4600-SYS-JB-AC was tested by Townsend Networks technicians before listing. The test process is on the testing process.

Selling your Juniper SRX4600-SYS-JB-AC? We buy used network gear.

Questions about the SRX4600-SYS-JB-AC? Call 415-626-4231 or email sales@townsendnetworks.com.
