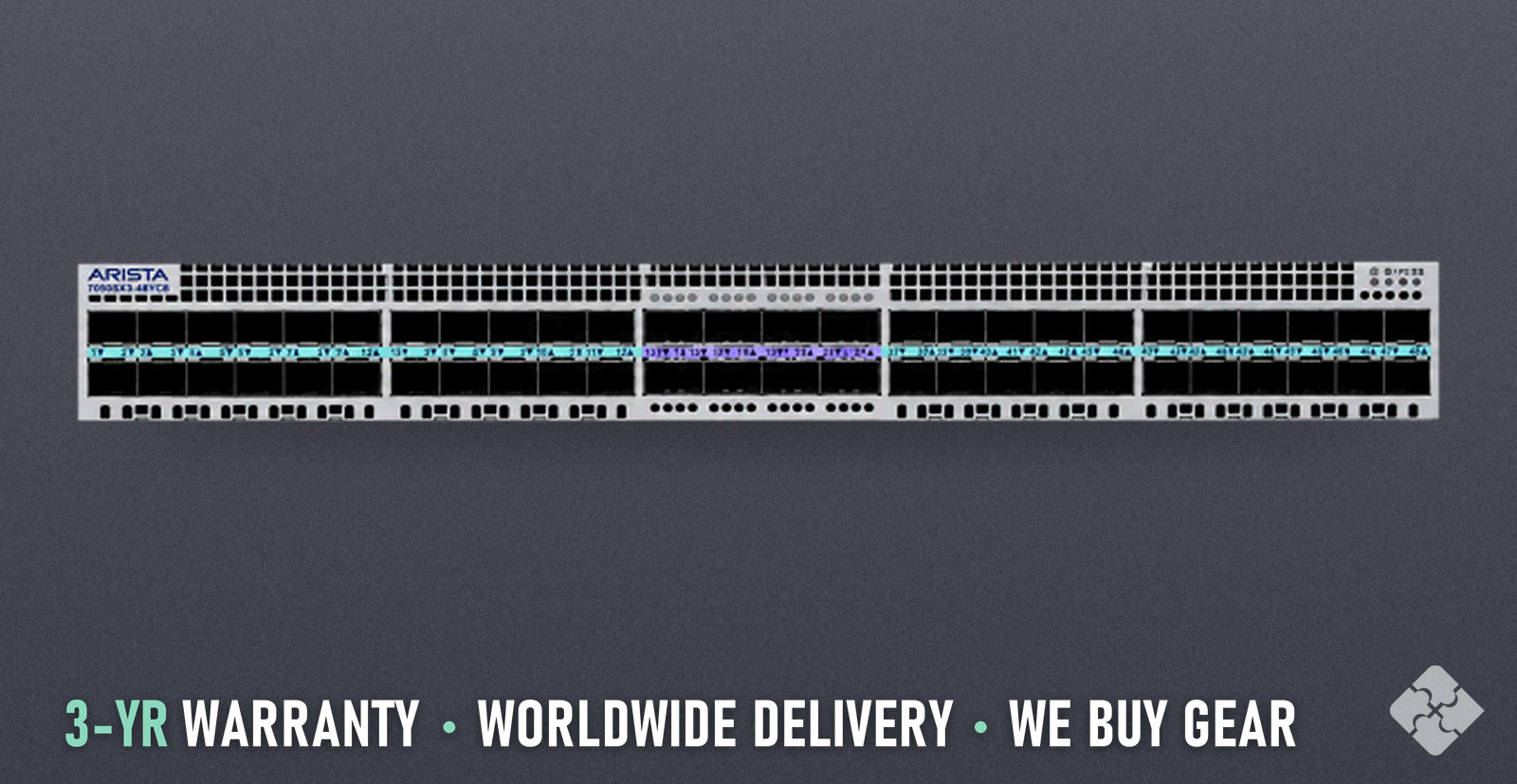

DCS-7050SX3-48YC8C-R
DCS-7050SX3-48YC8C-R Arista 7050SX3 switch, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
DCS-7050SX3-48YC8C-R, in stock, ships worldwide.
$14,500
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- DCS-7050SX3-48YC8C-R
- Network Ports
- 48 × 1/10/25GbE
- Connectors
- SFP28, QSFP28
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Questions and answers
- What ports does the DCS-7050SX3-48YC8C-R have?
- It has 48 × 1/10/25GbE; uplinks: 8x 100GbE QSFP28. 56 data ports in all. Connectors: SFP28, QSFP28.
- What is the throughput of the DCS-7050SX3-48YC8C-R?
- Throughput is 4 Tbps, 1 Bpps.
- Which way does the air flow on the DCS-7050SX3-48YC8C-R?
- Airflow is back-to-front.
- What power does the DCS-7050SX3-48YC8C-R use?
- It uses AC.
- How much power does the DCS-7050SX3-48YC8C-R draw?
- Power draw: typical 119W; maximum 290W.
- What are the size and weight of the DCS-7050SX3-48YC8C-R?
- Dimensions: 17.3 x 1.75 x 18.4 in (44 x 4.4 x 46.8 cm), W x H x D. Weight: 21 lbs (9.45kgs).
The Arista DCS-7050SX3-48YC8C-R is a switch from the Arista 7050SX3 family with 48 ports of 1/10/25GbE SFP28 and 8 ports of 100GbE QSFP28. It runs Arista EOS, with a 1U rack-mount form factor and back-to-front airflow. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Arista DCS-7050SX3-48YC8C-R / 7050X3, 48x25GbE SFP plus 8x100GbE QSFP100 switch, expanded memory and flash, rear to front air, 2x AC, 4 Tbps, 1U
HOW IT DIFFERS
DCS-7050SX3-48YC8C-R has back-to-front airflow, which its page also calls rear to front air. DCS-7050SX3-48YC8C-F is the front-to-back version. Both pages list the same 48 ports of 1/10/25GbE SFP28, 8 ports of 100GbE QSFP28, 4 Tbps and AC power. Pick this one when the rack needs back-to-front airflow, and the sister when it needs front-to-back.
TECHNICAL DETAILS
Brand: Arista Family: 7050SX3 Uplinks: 8x 100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Management ports: 1 Operating system: Arista EOS Form factor: 1U rack-mount Rack units: 1U Airflow: Back-to-front Power input: AC Throughput: 4 Tbps, 1 Bpps Dimensions: 17.3 x 1.75 x 18.4 in (44 x 4.4 x 46.8 cm), W x H x D Weight: 21 lbs (9.45kgs) Fans: 2 (1+1 redundant) Power supplies: 2 (1+1 redundant) Power draw (typical): 119W Power draw (maximum): 290W Operating temperature: 0 to 40˚C (32 to 104˚F) Storage temperature: -40 to 70˚C (-40 to 158˚F) Operating humidity: 5 to 90% (listed as Relative Humidity) Operating altitude: 0 to 10,000 ft, (0-3,000m) CPU: Quad-Core x86 Memory (DRAM): 16 GB Flash storage: 32 GB MAC addresses: 288K MAC entries IPv4 routes: 360K IPv4 Routes VLANs: 4096 VLANs Jumbo frames: 9216 Bytes Packet buffer: 32 MB (Dynamic Buffer Allocation) Latency: 800 ns Console port: 1 (RJ-45) USB port: 1 Certifications: BSMI (Taiwan); FCC Class A (United States); ICES-003 (Canada); CE (European Union) Warranty: 3 years, Townsend Networks Returns: 30 days
WHAT'S INCLUDED
One (1) Arista DCS-7050SX3-48YC8C-R. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed DCS-7050SX3-48YC8C-R was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
DCS-7050SX3-48YC8C-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
