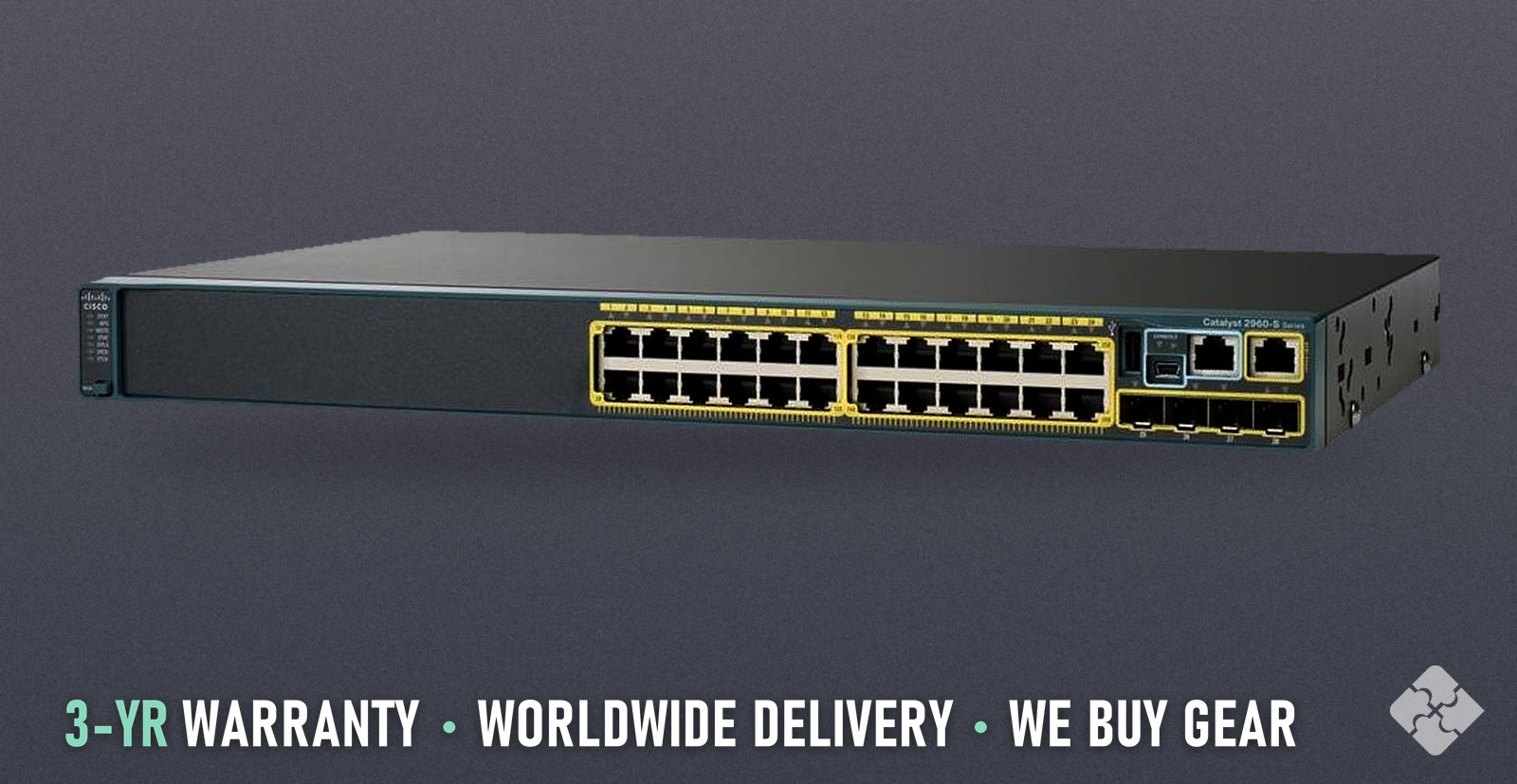

WS-C2960X-24PS-L Cisco Switch, Refurbished, 24x 1GbE PoE+ RJ45 and 4x 1GbE SFP

End of sale and support

Questions about the Cisco Catalyst 2960 family

When is the end of sale for the WS-C2960X-24PS-L?

Cisco's end of sale date for the WS-C2960X-24PS-L is October 31, 2022, and its end of support date is October 31, 2027.

What ports does the WS-C2960X-24PS-L have?

The WS-C2960X-24PS-L has 24 × 1GbE, with uplinks of 4x 1GbE SFP and 28 data ports in all.

Which way does the air flow on the WS-C2960X-24PS-L?

The airflow of the WS-C2960X-24PS-L is fan exhaust on the rear panel.

How much power does the WS-C2960X-24PS-L draw?

The typical power draw of the WS-C2960X-24PS-L is 49.0 W (weighted average).

What are the size and weight of the WS-C2960X-24PS-L?

The WS-C2960X-24PS-L measures 1.75 x 17.5 x 14.5 in (4.5 x 44.5 x 36.8 cm) and weighs 12.8 lb (5.8 kg).

What temperature range does the WS-C2960X-24PS-L run in?

The operating temperature range of the WS-C2960X-24PS-L is -5 to 45 °C (23 to 113 °F), up to 5,000 ft.

Can Catalyst 2960-X switches be stacked?

Yes, with the optional FlexStack-Plus module, which Cisco says stacks up to eight Catalyst 2960-X or 2960-XR switches. Cisco's data sheet marks the LAN Base 2960-X models, including the four on this page, as FlexStack-Plus capable; the LAN Lite 2960-X models are not. The stacking module is a separate part and is not included with a switch unless the listing says so.

What do LAN Base and LAN Lite mean, and can they be upgraded?

They are the Cisco IOS feature sets the switch was built with: the -L part numbers here run LAN Base and the -LL part numbers run LAN Lite. Cisco's 2960-X data sheet says each model is tied to its feature level: LAN Lite cannot be upgraded to LAN Base, and LAN Base cannot be upgraded to IP Lite. Buy the part number that already carries the features you need.

Are the Catalyst 2960-X, 2960-L and 2960 end of life?

Yes. Cisco's 2960-X notice set end of sale on 31 October 2022 and the last date of support on 31 October 2027, with the Catalyst 9200L named as the replacement. The 2960-L models reached end of sale on 31 October 2021 with support ending 31 October 2026, and the WS-C2960-48PST-L left sale on 31 October 2014, with Cisco support ended on 31 October 2019.

Does the Catalyst 2960-X have a redundant power supply?

Not inside the switch. Cisco's data sheet says the 2960-X comes with one fixed power supply and supports an external Cisco Redundant Power System (RPS 2300) for redundancy. The related 2960-XR has a field-replaceable power supply instead.

What condition and warranty come with a Cisco Catalyst 2960 switch from Townsend?

Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.
