WS-C2960X-24TD-L Cisco Switch, Refurbished, 24x 1GbE RJ45 and 2x 1/10GbE SFP+
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- WS-C2960X-24TD-L has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

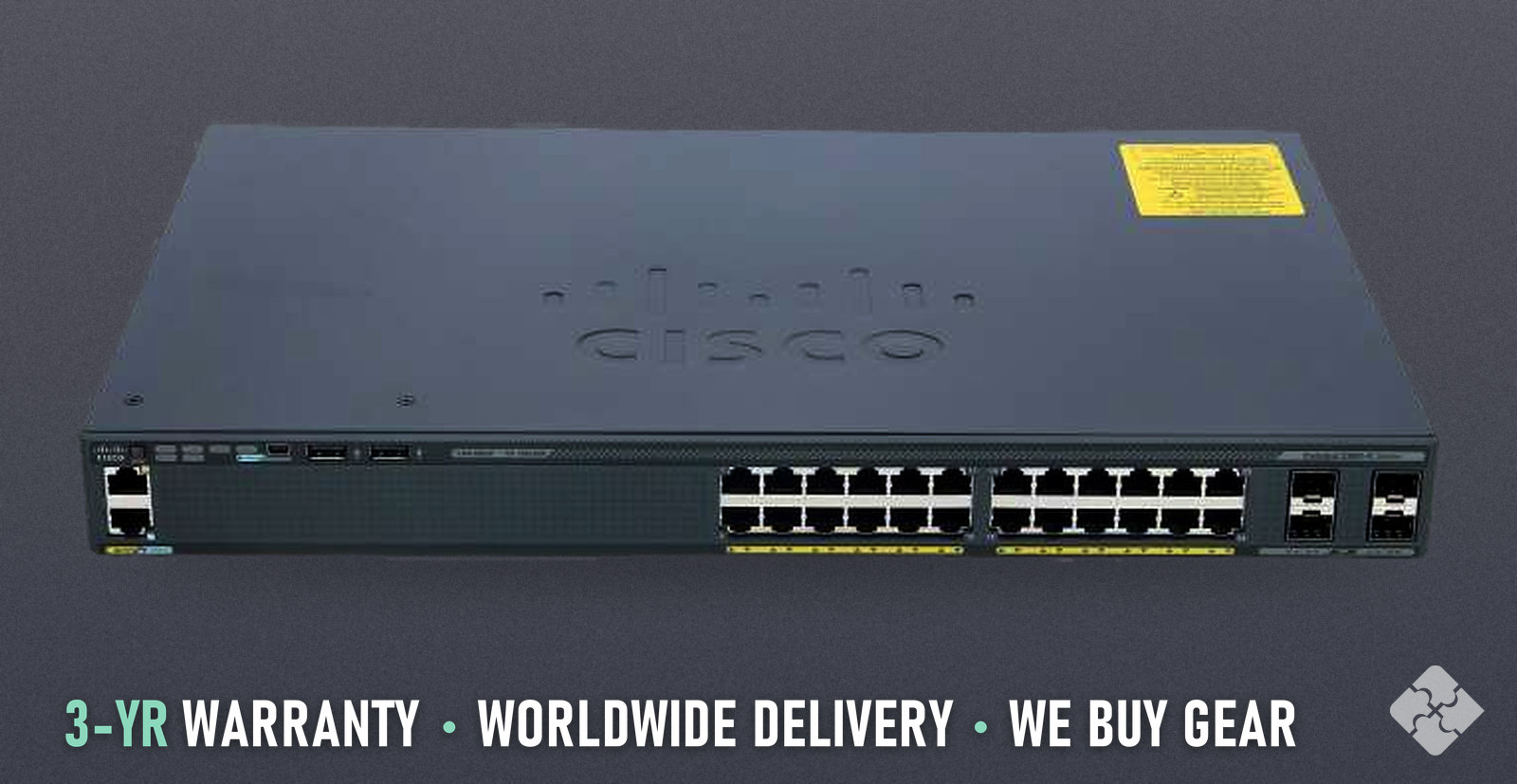

The Cisco WS-C2960X-24TD-L is a switch from the Cisco C2960X family with 24 ports of 1GbE RJ45 and 2 ports of 1/10GbE SFP+. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
- HOW IT DIFFERS
- WS-C2960X-24TD-L is the data only 24 port Catalyst 2960-X with two 10 GbE SFP+ uplinks, so it carries no PoE budget at all. In the data sheet it forwards 95.2 Mpps and averages 32.3 W, and at 4.0 kg and 11 inches deep it is lighter and shallower than the PoE models. Beside it, WS-C2960X-24PS-L has 370 W of PoE and four 1 GbE SFP uplinks, and WS-C2960X-48FPD-L has 48 ports with 740 W of PoE and the same two SFP+ uplinks. Its feature set is LAN Base.
- Model
- WS-C2960X-24TD-L
- Network Ports
- 24 × 1GbE
- Connectors
- RJ45, SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Cisco |
|---|---|
| Family | C2960X |
| Uplinks | 2x 1/10GbE SFP+ |
| Total ports | 26 |
| Fastest port | 10GbE |
| Rack units | 1U |
| Airflow | Fan exhaust on the rear panel |
| Throughput | 216 Gbps switching, 95.2 Mpps forwarding |
| Power supplies | One fixed power supply; an external redundant supply (RPS 2300) is optional |
| Input voltage | 100 to 240 V AC auto-ranging, 50 to 60 Hz |
End of sale and support
| Model | Announced | End of sale | End of support | Replacement | Notice |
|---|---|---|---|---|---|
| Cisco Catalyst 2960-X | C9200L-24P-4G, C9200L-24T-4X, C9200L-48P-4X, C9200L-48P-4G (Catalyst 9200L) | Cisco notice |
Questions about the Cisco Catalyst 2960 family
- What ports does the WS-C2960X-24TD-L have?
- The WS-C2960X-24TD-L has 24 × 1GbE, with uplinks of 2x 1/10GbE SFP+ and 26 data ports in all.
- What is the throughput of the WS-C2960X-24TD-L?
- The WS-C2960X-24TD-L has a throughput of 216 Gbps switching, 95.2 Mpps forwarding.
- Which way does the air flow on the WS-C2960X-24TD-L?
- The airflow of the WS-C2960X-24TD-L is fan exhaust on the rear panel.
- How much rack space does the WS-C2960X-24TD-L take?
- The WS-C2960X-24TD-L takes 1U of rack space.
- Can Catalyst 2960-X switches be stacked?
- Yes, with the optional FlexStack-Plus module, which Cisco says stacks up to eight Catalyst 2960-X or 2960-XR switches. Cisco's data sheet marks the LAN Base 2960-X models, including the four on this page, as FlexStack-Plus capable; the LAN Lite 2960-X models are not. The stacking module is a separate part and is not included with a switch unless the listing says so.
- What do LAN Base and LAN Lite mean, and can they be upgraded?
- They are the Cisco IOS feature sets the switch was built with: the -L part numbers here run LAN Base and the -LL part numbers run LAN Lite. Cisco's 2960-X data sheet says each model is tied to its feature level: LAN Lite cannot be upgraded to LAN Base, and LAN Base cannot be upgraded to IP Lite. Buy the part number that already carries the features you need.
- Are the Catalyst 2960-X, 2960-L and 2960 end of life?
- Yes. Cisco's 2960-X notice set end of sale on 31 October 2022 and the last date of support on 31 October 2027, with the Catalyst 9200L named as the replacement. The 2960-L models reached end of sale on 31 October 2021 with support ending 31 October 2026, and the WS-C2960-48PST-L left sale on 31 October 2014, with Cisco support ended on 31 October 2019.
- Does the Catalyst 2960-X have a redundant power supply?
- Not inside the switch. Cisco's data sheet says the 2960-X comes with one fixed power supply and supports an external Cisco Redundant Power System (RPS 2300) for redundancy. The related 2960-XR has a field-replaceable power supply instead.
- What condition and warranty come with a Cisco Catalyst 2960 switch from Townsend?
- Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.
Catalyst 2960-X 24 GigE, 2 x 10G SFP+, LAN Base
WHAT'S INCLUDED
One (1) Cisco WS-C2960X-24TD-L. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed WS-C2960X-24TD-L was tested by Townsend Networks technicians before listing. The test process is on the testing process.
