Is the Catalyst 6500 end of life?

Yes. Cisco's notice for the Catalyst 6506-E, 6509-E, 6509-V-E, 6513-E, VS-S2T-10G and VS-S2T-10G-XL set end of sale on 30 October 2020 and the last date of support on 31 October 2025, so Cisco support for the chassis and the Supervisor 2T has ended. The Supervisor 720-3B and 3BXL left sale on 30 January 2013, with Cisco support ended on 31 January 2018.

Which supervisor do the WS-X6848-SFP-2T and WS-X6816-10G-2T need?

Cisco lists the 6800-series modules with DFC4 as compatible with Supervisor Engine 2T and 2TXL, such as the VS-S2T-10G-XL. They fit any slot in a Catalyst 6503-E, 6504-E, 6506-E, 6509-E or 6509-V-E. The WS-F6700-DFC3BXL is the opposite case: Cisco supports it only with the Supervisor Engine 720, on CEF720 line cards.

What condition and warranty come with a Cisco Catalyst 6500 part from Townsend?

Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.

WS-X6848-SFP-2TCisco

WS-X6848-SFP-2T Cisco Line Card, Refurbished, 48x 1GbE SFP

Line Card

Part number: WS-X6848-SFP-2T
Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: WS-X6848-SFP-2T has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

Orders placed by 12pm ship the same day.

We photograph the actual unit on request before you commit. Request photos

A firm price comes back, typically the same business day.

Prefer a PO or wire? We take those too. Just ask.

Questions about the WS-X6848-SFP-2T? Call 415-626-4231 or email sales@townsendnetworks.com.

We photograph the actual unit on request before you commit. Request photos

WS-X6848-SFP-2T Cisco Line Card, Refurbished, 48x 1GbE SFP — Cisco · Line Card

Condition: Refurbished, Tested & Guaranteed

WS-X6848-SFP-2T, in stock, ships worldwide.

The Cisco WS-X6848-SFP-2T is a line card with 48 ports of 1GbE SFP. It is a module that installs into a host chassis and does not run on its own. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

HOW IT DIFFERS: WS-X6848-SFP-2T is the 6800 Series 48-port Gigabit Ethernet module for SFP optics. Cisco's data sheet pairs it with a DFC4, connects it to the switch fabric through dual full-duplex 20 Gbps channels (40 Gbps total), works it with Supervisor Engine 2T and lists its power at 334.44 W. Its sister WS-X6724-SFP is the 24-port SFP module of the earlier 6700 line, which Cisco says supports a single 20 Gbps fabric channel and sustains 26 Mpps per slot with a DFC3.

Specifications

Model: WS-X6848-SFP-2T
Network Ports: 48 × 1GbE
Connectors: SFP
Type: Line Card
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Cisco
Product line	Catalyst 6500/6800
PoE	Non-PoE
Throughput	40 Gbps per slot (two 20 Gbps fabric channels), up to 60 Mpps L2/IPv4/MPLS with DFC4

Cisco datasheet

Questions about the Cisco Catalyst 6500 family

Is the Catalyst 6500 end of life?: Yes. Cisco's notice for the Catalyst 6506-E, 6509-E, 6509-V-E, 6513-E, VS-S2T-10G and VS-S2T-10G-XL set end of sale on 30 October 2020 and the last date of support on 31 October 2025, so Cisco support for the chassis and the Supervisor 2T has ended. The Supervisor 720-3B and 3BXL left sale on 30 January 2013, with Cisco support ended on 31 January 2018.
Which supervisor do the WS-X6848-SFP-2T and WS-X6816-10G-2T need?: Cisco lists the 6800-series modules with DFC4 as compatible with Supervisor Engine 2T and 2TXL, such as the VS-S2T-10G-XL. They fit any slot in a Catalyst 6503-E, 6504-E, 6506-E, 6509-E or 6509-V-E. The WS-F6700-DFC3BXL is the opposite case: Cisco supports it only with the Supervisor Engine 720, on CEF720 line cards.
What condition and warranty come with a Cisco Catalyst 6500 part from Townsend?: Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.

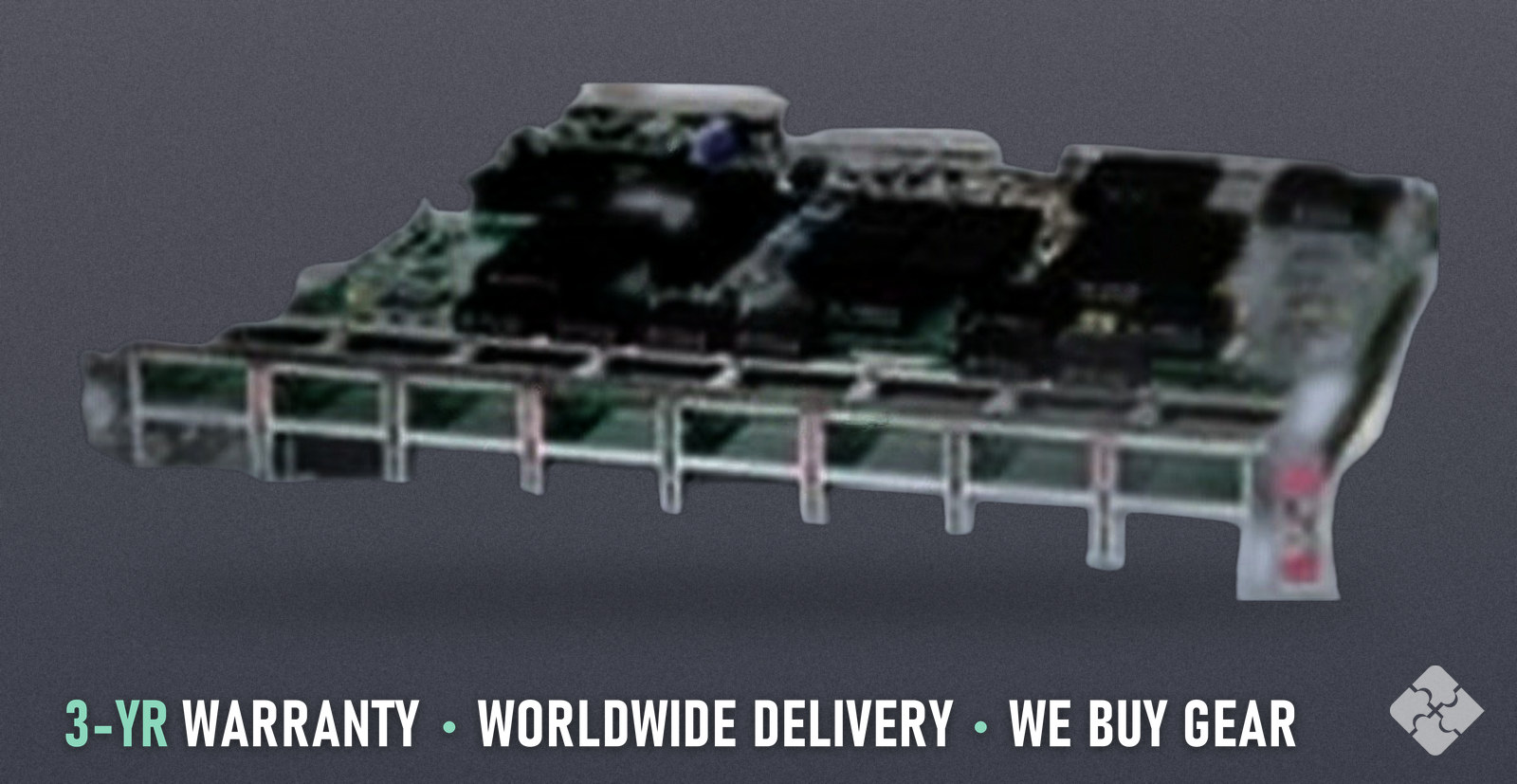

Catalyst 6500 48-port GigE Mod: fabric-enabled with DFC4
