Cisco Catalyst 6500 Parts

This page holds Cisco Catalyst 6500 chassis, supervisors, line cards and power supplies. The WS-C6506 chassis is 12 RU and the WS-C6509 15 RU, each with one or two power supplies. The Supervisor Engine 720 integrates a 720 Gbps switch fabric, and the Supervisor Engine 2T (VS-S2T-10G) gives a 2.08 Tbps fabric and 80 Gbps per slot on E-Series chassis. Cisco gives October 30, 2020 as the end of sale date for the 6506-E chassis and the VS-S2T-10G, and names the Catalyst 9600 to follow.

Sources: Catalyst 6500 Series Switch Installation Guide: Product Overview, Catalyst 6500 Series Switch Supervisor Engine Guide: Supervisor Engines, Cisco Catalyst 6500 Series Supervisor Engine 2T Data Sheet, End-of-Sale and End-of-Life Announcement for the Cisco Catalyst 6506-E, Catalyst 6509-E

Selling Cisco Catalyst 6500 hardware? Get an offer

Cisco Catalyst 6500 facts from the maker

WS-C6506 and WS-C6509
12 RU and 15 RU chassis; one or two power supplies Source: Catalyst 6500 Series Switch Installation Guide: Product Overview
VS-S2T-10G
2.08 Tbps fabric; 80 Gbps per slot; 3 x GE SFP and 2 x 10G X2 uplinks; E-Series chassis Source: Cisco Catalyst 6500 Series Supervisor Engine 2T Data Sheet
WS-X6748-GE-TX
48 x 10/100/1000 RJ-45; dual 20 Gbps fabric channels (40 Gbps) Source: Cisco Catalyst 6500 Series 10/100 and 10/100/1000 Mbps Ethernet Interface Modules Data Sheet
WS-X6748-SFP
48 x Gigabit Ethernet SFP; dual 20 Gbps fabric channels (40 Gbps) Source: Cisco Catalyst 6500 Series Mixed Media Gigabit Ethernet Modules
WS-CAC-3000W
3000 W at 200 to 240 VAC; 1400 W at 100 to 120 VAC Source: Catalyst 6500 Series Switch Installation Guide: Power Supply Specifications
Airflow (WS-C6509-E)
Side to side: intake on the right side, exhaust on the left side Source: Catalyst 6500 Series Switch Installation Guide: Preparing for Installation
End of sale
October 30, 2020 (WS-C6506-E, VS-S2T-10G); replacement chassis C9606R Source: End-of-Sale and End-of-Life Announcement for the Cisco Catalyst 6506-E, Catalyst 6509-E

Updated

Guides on the Cisco Catalyst 6500

Rangeto

Cisco Catalyst 6500 Parts in the catalog

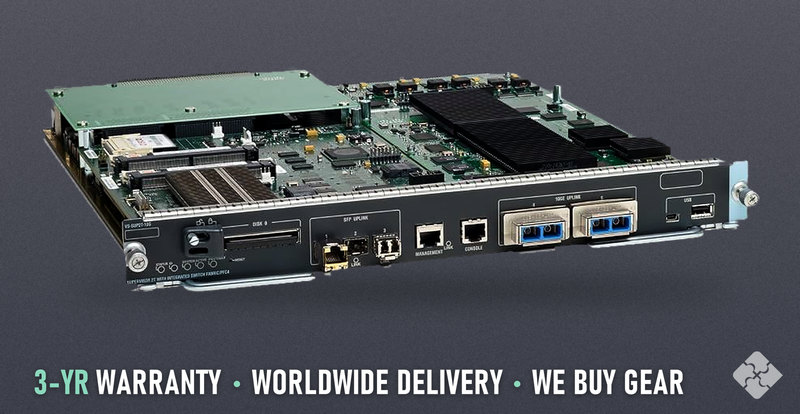

VS-S2T-10G-XL Cisco Supervisor Engine, Refurbished, 3x 1GbE SFP and 2x 10GbE X2

VS-S2T-10G-XL

VS-S2T-10G-XL Cisco Supervisor Engine, Refurbished, 3x 1GbE SFP and 2x 10GbE X2

In stock

$2,945Ships same day

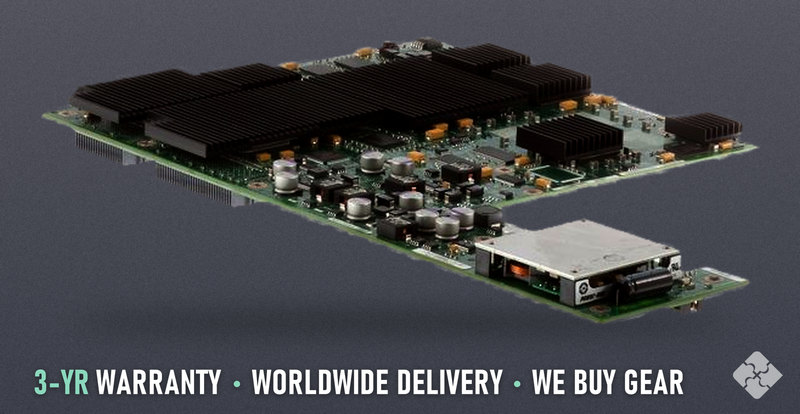

WS-F6700-DFC3BXL Cisco Module, Refurbished

WS-F6700-DFC3BXL

WS-F6700-DFC3BXL Cisco Module, Refurbished

In stock

$340Ships same day

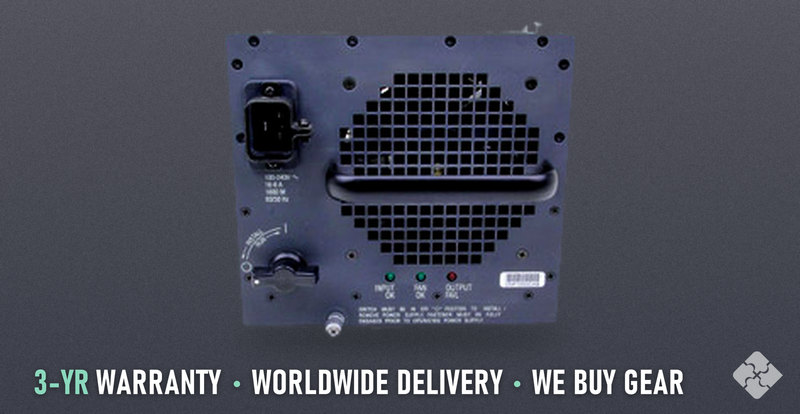

WS-CAC-1300W Cisco Power Supply, AC Input, Used, 1300 W AC power supply for Catalyst 6500 chassis

WS-CAC-1300W

WS-CAC-1300W Cisco Power Supply, AC Input, Used, 1300 W AC power supply for Catalyst 6500 chassis

In stock

$290Ships same day

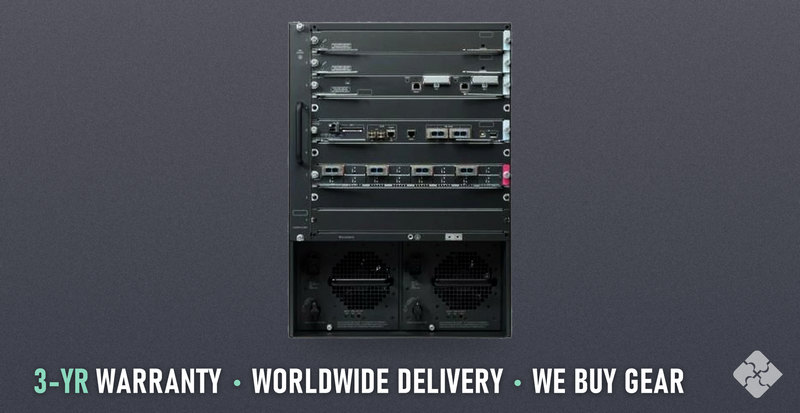

WS-C6509-E Cisco Chassis, Refurbished, Catalyst 6500 Enhanced 9-slot chassis, no power supply

WS-C6509-E

WS-C6509-E Cisco Chassis, Refurbished, Catalyst 6500 Enhanced 9-slot chassis, no power supply

In stock

$215Ships same day

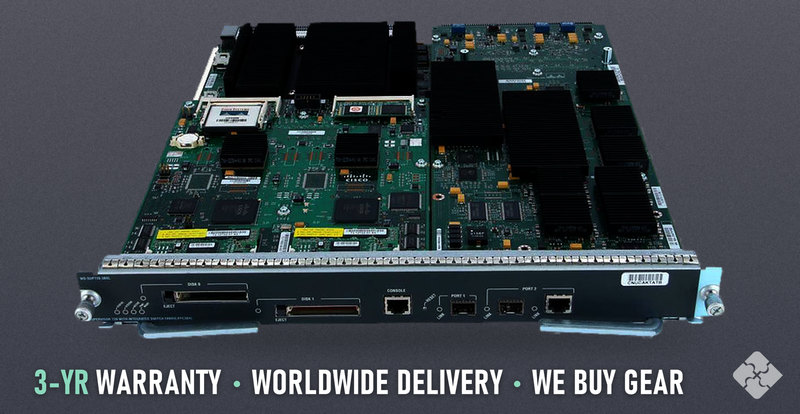

WS-SUP720-3BXL Cisco Supervisor Engine, Refurbished, 2x 1GbE SFP

WS-SUP720-3BXL

WS-SUP720-3BXL Cisco Supervisor Engine, Refurbished, 2x 1GbE SFP

In stock

$200Ships same day
WS-CAC-4000W-US Cisco Power Supply, AC Input, Refurbished, 6000/7600 Series, 4000 W

WS-CAC-4000W-US

WS-CAC-4000W-US Cisco Power Supply, AC Input, Refurbished, 6000/7600 Series, 4000 W

In stock

$170Ships same day

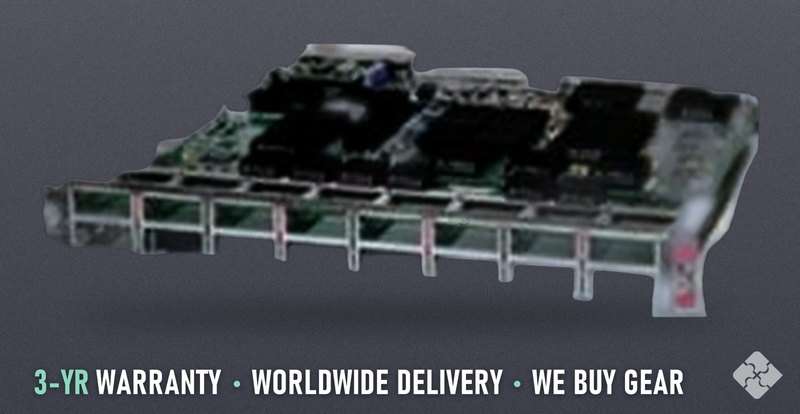

WS-X6848-SFP-2T Cisco Line Card, Refurbished, 48x 1GbE SFP

WS-X6848-SFP-2T

WS-X6848-SFP-2T Cisco Line Card, Refurbished, 48x 1GbE SFP

In stock

$445Ships same day
WS-X6816-10G-2T Cisco Line Card, Refurbished, 16x 10GbE X2

WS-X6816-10G-2T

WS-X6816-10G-2T Cisco Line Card, Refurbished, 16x 10GbE X2

In stock

$390Ships same day
WS-X6724-SFP Cisco Line Card, Refurbished, 24x 1GbE SFP

WS-X6724-SFP

WS-X6724-SFP Cisco Line Card, Refurbished, 24x 1GbE SFP

In stock

$265Ships same day

Cisco Catalyst 6500 part numbers

Part numberPortsAirflowConditionEnd of salePriceStock
VS-S2T-10G-XL3 × 1GbERefurbished, tested & guaranteed$2,945In stock
WS-F6700-DFC3BXLRefurbished, tested & guaranteed$340In stock
WS-CAC-1300WUsed, tested & guaranteed$290In stock
WS-C6509-ESide-to-side: intake on the right side, exhaust on the left sideRefurbished, tested & guaranteed$215In stock
WS-SUP720-3BXL2 × 1GbERefurbished, tested & guaranteed$200In stock
WS-CAC-4000W-USRefurbished, tested & guaranteed$170In stock
WS-X6848-SFP-2T48 × 1GbERefurbished, tested & guaranteed$445In stock
WS-X6816-10G-2T16 × 10GbERefurbished, tested & guaranteed$390In stock
WS-X6724-SFP24 × 1GbERefurbished, tested & guaranteed$265In stock

End of sale and support

ModelAnnouncedEnd of saleEnd of supportReplacementNotice
Cisco Catalyst 6500-E chassis and Supervisor 2TC9610R chassis, C9600-SUP-1, C9600X-SUP-2, C9610-SUP-3 (Catalyst 9600/9610)Cisco notice

Questions about the Cisco Catalyst 6500 family

Which chassis take the Supervisor Engine 2T?
The E-Series chassis: Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E and 6513-E, and the C6807-XL.Source: Cisco Catalyst 6500 Series Supervisor Engine 2T Data Sheet
What replaced the Catalyst 6500?
Cisco's end of sale notice for the 6506-E names the Catalyst 9600 Series, with the C9606R chassis and the C9600-SUP-1 supervisor.Source: End-of-Sale and End-of-Life Announcement for the Cisco Catalyst 6506-E, Catalyst 6509-E
What is the WS-X6748-GE-TX?
A 48 port 10/100/1000 RJ-45 CEF720 module with dual 20 Gbps fabric channels, field upgradable to distributed forwarding with the WS-F6700-DFC3A.Source: Cisco Catalyst 6500 Series 10/100 and 10/100/1000 Mbps Ethernet Interface Modules Data Sheet
