What ports does the DCS-7050QX2-32S-F have?

It has 32 × 40GbE. Connectors: QSFP+, SFP+.

What is the throughput of the DCS-7050QX2-32S-F?

Throughput is 2.56 Tbps, 1440 Mpps.

How much power does the DCS-7050QX2-32S-F draw?

Power draw: typical 129W; maximum 283W.

Is the Arista 7050SX / 7050SX2 / 7050QX2 end of life?

Arista ended the sale of the Arista 7050SX / 7050SX2 / 7050QX2 on March 20, 2022. Its support ended on March 20, 2025. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

What does Arista name as the replacement for the Arista 7050SX / 7050SX2 / 7050QX2?

Arista's notice names DCS-7050SX3-48YC8, 48C8, 96YC8, DCS-7050CX3-32S.

DCS-7050QX2-32S-F

DCS-7050QX2-32S-F Arista 7050QX2 switch, 32x 40GbE QSFP+

Name: DCS-7050QX2-32S-F Arista 7050QX2 switch, 32x 40GbE QSFP+
Brand: Arista
SKU: DCS-7050QX2-32S-F
Price: 2495.00 USD
Availability: InStock

Used, tested & guaranteedIn stock

Condition: Used. Tested & Guaranteed

DCS-7050QX2-32S-F, in stock, ships worldwide.

$2,495

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: DCS-7050QX2-32S-F
Network Ports: 32 × 40GbE
Connectors: QSFP+, SFP+
Type: Switch
Condition: Used, tested & guaranteed

Warranty terms·Testing process

End of sale and support

Model	Announced	End of sale	End of support	Replacement	Notice
Arista 7050SX / 7050SX2 / 7050QX2	2021-09-20	2022-03-20	2025-03-20	DCS-7050SX3-48YC8, 48C8, 96YC8, DCS-7050CX3-32S	Arista notice

Questions about the Arista 7050Q family

What ports does the DCS-7050QX2-32S-F have?: It has 32 × 40GbE. Connectors: QSFP+, SFP+.
What is the throughput of the DCS-7050QX2-32S-F?: Throughput is 2.56 Tbps, 1440 Mpps.
Which way does the air flow on the DCS-7050QX2-32S-F?: Airflow is front-to-back.
What power does the DCS-7050QX2-32S-F use?: It uses dual AC.
How much power does the DCS-7050QX2-32S-F draw?: Power draw: typical 129W; maximum 283W.
What are the size and weight of the DCS-7050QX2-32S-F?: Dimensions: 19 x 1.75 x 16" (48.3x 4.4x 40.64cm), printed WxHxD. Weight: 20lbs (9.1kg).
Is the Arista 7050SX / 7050SX2 / 7050QX2 end of life?: Arista ended the sale of the Arista 7050SX / 7050SX2 / 7050QX2 on March 20, 2022. Its support ended on March 20, 2025. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
What does Arista name as the replacement for the Arista 7050SX / 7050SX2 / 7050QX2?: Arista's notice names DCS-7050SX3-48YC8, 48C8, 96YC8, DCS-7050CX3-32S.

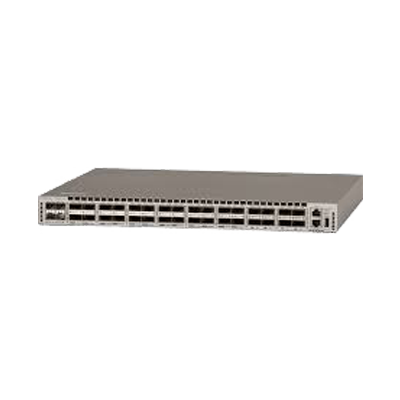

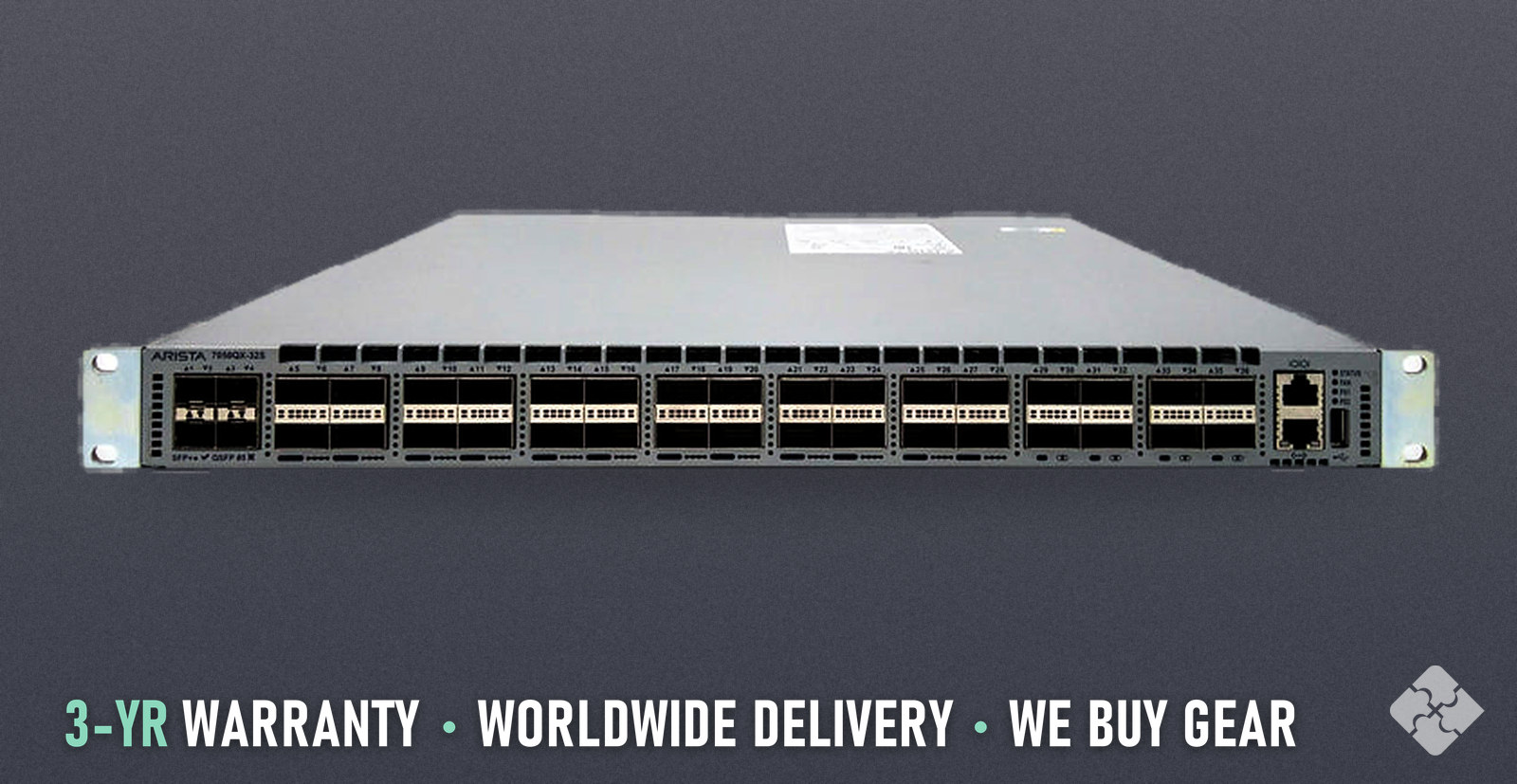

The Arista DCS-7050QX2-32S-F is a switch from the Arista 7050QX2 family with 32 ports of 40GbE QSFP+. It runs Arista EOS, with front-to-back airflow. This unit is used: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cables to match.

Arista DCS-7050QX2-32S-F / 7050X2 switch, 32x 40GbE QSFP+ ports (breakout-capable to 96x 10GbE), 4x SFP+ ports (10GbE, shared with QSFP+1), dual 500W AC power supplies, front-to-rear airflow, 1RU

TECHNICAL DETAILS

Brand: Arista Family: 7050QX2 Management ports: 1 (10/100/1000) Operating system: Arista EOS Rack units: 1U Airflow: Front-to-back Power input: dual AC Throughput: 2.56 Tbps, 1440 Mpps Dimensions: 19 x 1.75 x 16" (48.3x 4.4x 40.64cm), printed WxHxD Weight: 20lbs (9.1kg) Fans: 4 hot-swappable (N+1 redundant) Power supplies: 2 hot-swap (1+1 redundant); dual 500W AC Input voltage: 100-240VAC (PWR-500AC) Power draw (typical): 129W Power draw (maximum): 283W Operating temperature: 0 to 40˚C (32 to 104˚F) Storage temperature: -40 to 70˚C (-40 to 158˚F) Operating altitude: 0 to 10,000 ft, (0-3,000m) CPU: Quad-Core x86 Memory (DRAM): 8 Gigabytes Flash storage: 4 Gigabytes MAC addresses: 32K (Base Mode); 288K (UFT Modes) IPv4 routes: Unicast 16K (Base Mode); 144K (UFT Modes) IPv6 routes: Unicast 8K (Base Mode); 77K * (UFT Modes) VLANs: 4096 VLANs Jumbo frames: 9216 Bytes Packet buffer: 16MB Latency: 550 ns Console port: 1 (RJ-45) RS-232 serial USB port: 1 Certifications: Emissions: FCC, EN55032, EN61000-3-2, EN61000-3-3; Immunity: EN55024, EN55035 End of sale: Product is subject to an End of Sale notice Warranty: 3 years, Townsend Networks Returns: 30 days

MAKER'S DOCUMENT

https://www.arista.com/assets/data/pdf/Datasheets/7050QX-32_32S_Datasheet_S.pdf

WHAT'S INCLUDED

One (1) Arista DCS-7050QX2-32S-F. Includes a rack-mount kit and the power cables to match the switch.

CONDITION & TESTING

Condition: Used, Tested & Guaranteed DCS-7050QX2-32S-F was tested by our technicians before listing. How we test is on /testing-process.

WARRANTY & RETURNS

DCS-7050QX2-32S-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
