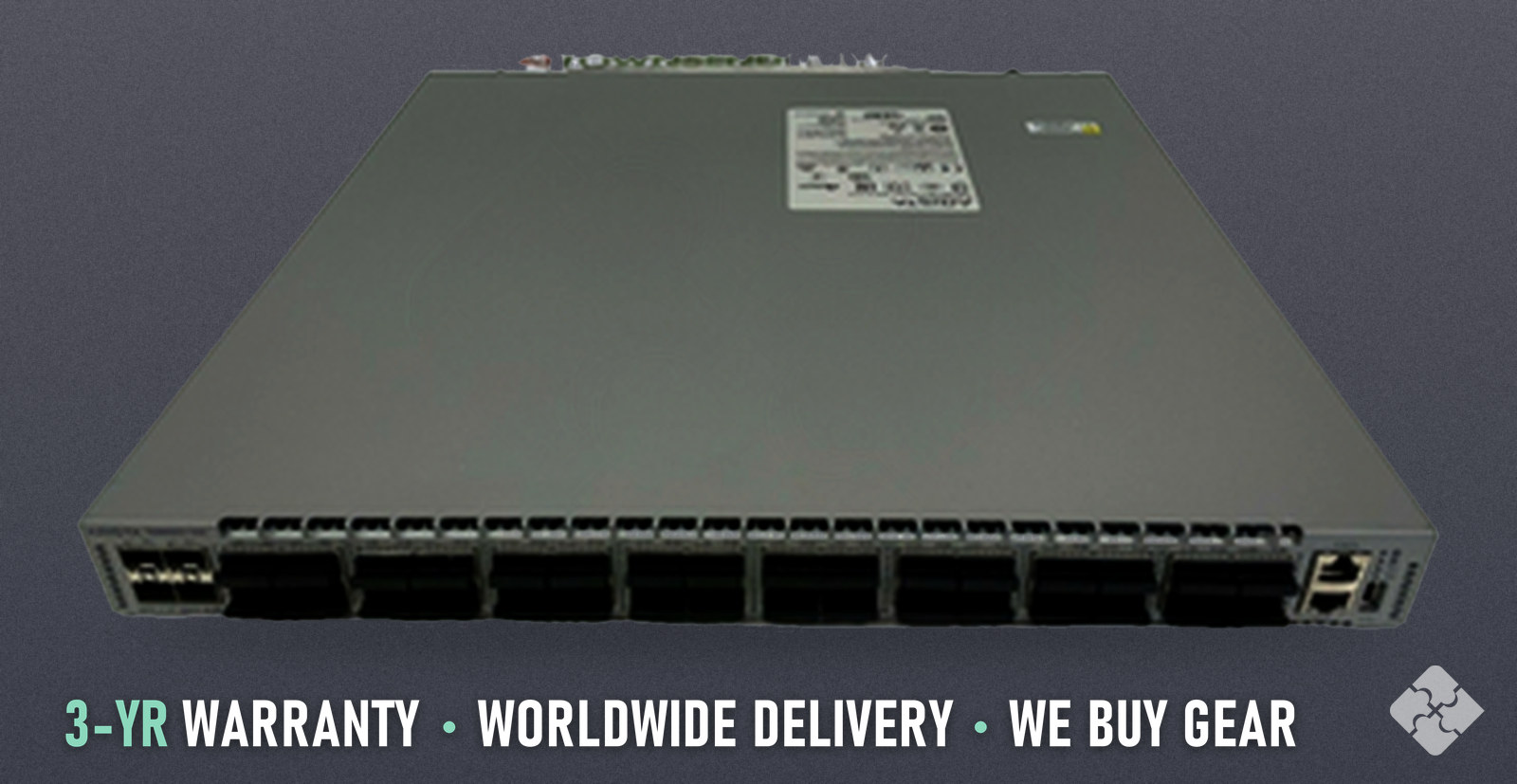

DCS-7050QX2-32S-R Arista Switch, Back-to-Front, Refurbished, 32x 40GbE QSFP+

DCS-7050QX2-32S-R Arista Switch, Back-to-Front, Refurbished, 32x 40GbE QSFP+

Condition
Refurbished, tested & guaranteed
WARRANTY & RETURNS
DCS-7050QX2-32S-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

DCS-7050QX2-32S-R price

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Arista DCS-7050QX2-32S-R is a switch from the Arista 7050QX2 family with 32 ports of 40GbE QSFP+, back-to-front airflow and AC power. It runs Arista EOS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

Other versions

Maker description
Arista 7050X2, 32xQSFP+ & 4xSFP+ switch, rear-to-front airflow and dual 500W AC power supplies
HOW IT DIFFERS
DCS-7050QX2-32S-R has back-to-front airflow, 8 GB of memory, 4 GB of flash storage and 2 x 500 W AC, hot-swap, 1+1 redundant power supplies; its sister DCS-7050QX2-32S-F has front-to-back airflow, 8 Gigabytes of memory, 4 Gigabytes of flash storage and 2 hot-swap (1+1 redundant); dual 500W AC power supplies. DCS-7050QX2-32S-R has back-to-front airflow; its sister DCS-7050QX-32S-F has front-to-back airflow.
End of sale
Subject to an end of sale notice (Arista data sheet) Arista notice
Model
DCS-7050QX2-32S-R
Network Ports
32 × 40GbE
Connectors
QSFP+, SFP+
Type
Switch
Condition
Refurbished, tested & guaranteed

Technical details

BrandArista
Family7050QX2
Management ports1 x 10/100/1000
Operating systemArista EOS
Rack units1U
AirflowBack-to-front
Power inputAC
Throughput2.56 Tbps, 1440 Mpps, 550 ns latency
Dimensions1.75 x 19 x 16 in (4.4 x 48.3 x 40.64 cm)
Weight20 lb (9.1 kg)
Fans4 hot-swappable, N+1 redundant
Power supplies2 x 500 W AC, hot-swap, 1+1 redundant
Power draw (typical)129 W
Power draw (maximum)283 W
Operating temperature0 to 40 C (32 to 104 F)
Storage temperature-40 to 70 C (-40 to 158 F)
Operating humidity5 to 95%
Operating altitude0 to 10,000 ft (0 to 3,000 m)
CPUQuad-Core x86
Memory (DRAM)8 GB
Flash storage4 GB
Packet buffer16 MB
Latency550 ns
Console port1 x RS-232 (RJ-45)
USB port1

DCS-7050QX2-32S-R datasheet

Testing process

DCS-7050QX2-32S-R end of sale and end of life dates

ModelAnnouncedEnd of saleEnd of supportReplacementNotice
Arista 7050SX / 7050SX2 / 7050QX2DCS-7050SX3-48YC8, 48C8, 96YC8, DCS-7050CX3-32SArista notice

Questions about the Arista 7050Q family

Is the Arista 7050SX / 7050SX2 / 7050QX2 end of life?
Arista ended the sale of the Arista 7050SX / 7050SX2 / 7050QX2 on March 20, 2022. Its support ended on March 20, 2025. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
What does Arista name as the replacement for the Arista 7050SX / 7050SX2 / 7050QX2?
Arista's notice names DCS-7050SX3-48YC8, 48C8, 96YC8, DCS-7050CX3-32S.

How the DCS-7050QX2-32S-R differs

Here is how Arista's documents set the DCS-7050QX2-32S-R apart from the DCS-7050QX2-32S-F. Airflow: Rear-to-front on the DCS-7050QX2-32S-R, against front-to-rear on the DCS-7050QX2-32S-F.

Both are listed with the same weight: 20 lb (9.1 kg). Both are listed with the same dimensions (height x width x depth): 1.75 x 19 x 16 in (4.4 x 48.3 x 40.64 cm). Both are listed with the same typical power draw: 129 W.

Maker documents: Arista 7050QX Series 10/40G Data Center Switches Data Sheet

WHAT'S INCLUDED

One (1) Arista DCS-7050QX2-32S-R. Includes a rack-mount kit and the power cable(s) to match the switch.

CONDITION & TESTING

DCS-7050QX2-32S-R was tested by Townsend Networks technicians before listing. The test process is on the testing process.
