What ports does the ICX7850-48F-E2 have?

It has 48 × 1/10/25GbE; uplinks: 8x 100GbE QSFP28. 56 data ports in all. Connectors: SFP28, QSFP28.

What is the throughput of the ICX7850-48F-E2?

Throughput is 4.0 Tbps switching capacity / 2.0 Bpps forwarding.

Which way does the air flow on the ICX7850-48F-E2?

Airflow is front-to-back (port-side intake, PSU-side exhaust).

ICX7850-48F-E2

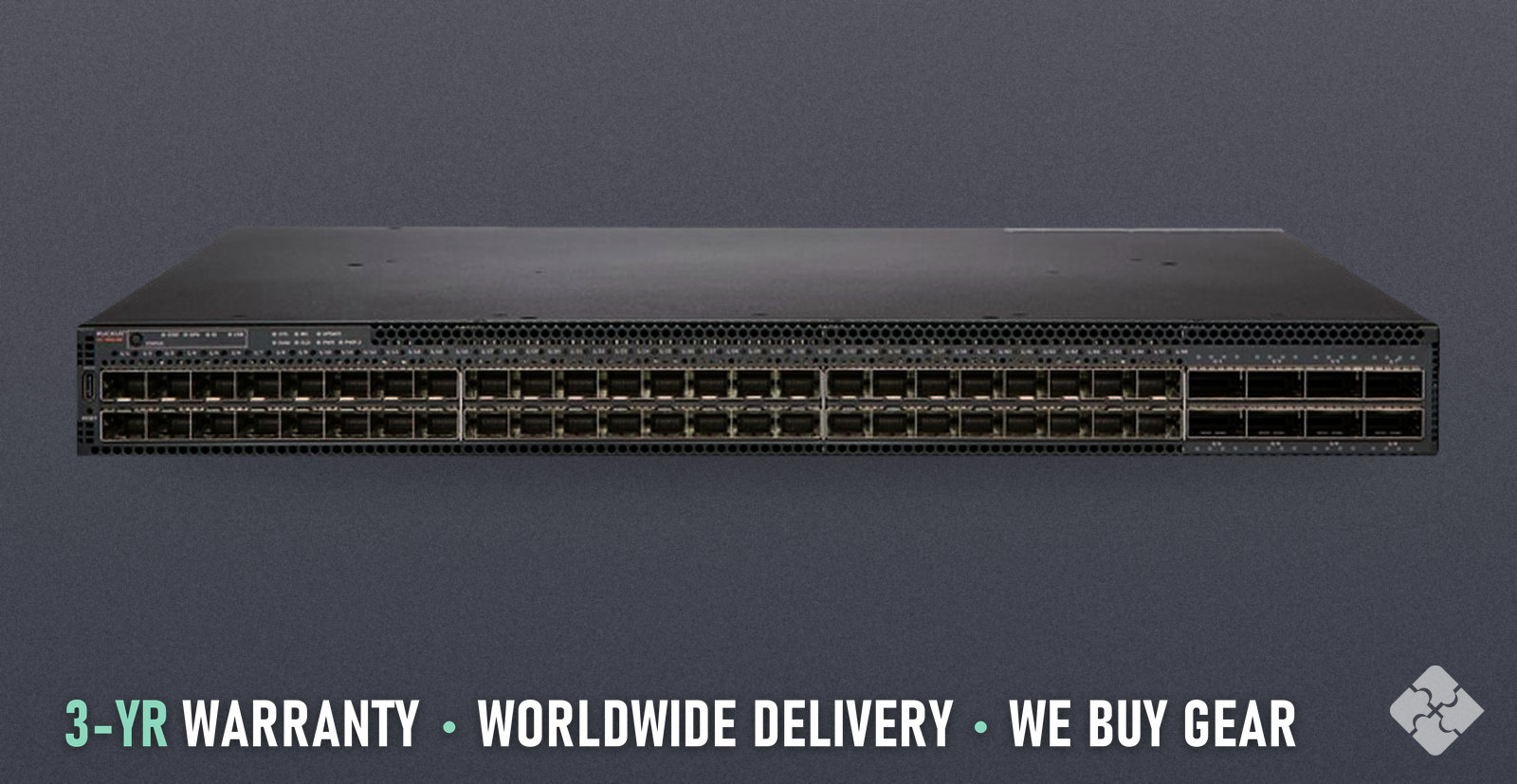

ICX7850-48F-E2 Brocade ICX7850 switch, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28

Name: ICX7850-48F-E2 Brocade ICX7850 switch, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
Brand: Brocade
SKU: ICX7850-48F-E2
Price: 14995.00 USD
Availability: InStock

Used, tested & guaranteedIn stock

Condition: Used. Tested & Guaranteed

ICX7850-48F-E2, in stock, ships worldwide.

$14,995

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

Model: ICX7850-48F-E2
Network Ports: 48 × 1/10/25GbE
Connectors: SFP28, QSFP28
Type: Switch
Condition: Used, tested & guaranteed

Warranty terms·Testing process

Questions and answers

What ports does the ICX7850-48F-E2 have?: It has 48 × 1/10/25GbE; uplinks: 8x 100GbE QSFP28. 56 data ports in all. Connectors: SFP28, QSFP28.
What is the throughput of the ICX7850-48F-E2?: Throughput is 4.0 Tbps switching capacity / 2.0 Bpps forwarding.
Which way does the air flow on the ICX7850-48F-E2?: Airflow is front-to-back (port-side intake, PSU-side exhaust).
What power does the ICX7850-48F-E2 use?: It uses 2x 650W AC (RPS19-E), hot-swappable, included in the -E2 bundle.
How much rack space does the ICX7850-48F-E2 take?: It takes 1U of rack space.
What software does the ICX7850-48F-E2 run?: It runs RUCKUS FastIron.

The Brocade ICX7850-48F-E2 is a switch from the Brocade ICX7850 family with 48 ports of 1/10/25GbE SFP28 and 8 ports of 100GbE QSFP28. It runs RUCKUS FastIron. This unit is used: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cables to match.

Ruckus ICX7850-48F-E2 / 48-port SFP28 1/10/25GbE plus 8-port QSFP28 native 40GbE or 100GbE, or breakout to 4x10GbE or 4x25GbE; 4.0 Tbps switching capacity; bundle includes two 650W AC power supplies and five fans, port-side intake with power-supply-side exhaust airflow; optics sold separately

TECHNICAL DETAILS

Brand: Brocade Family: ICX7850 Uplinks: 8x 100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Operating system: RUCKUS FastIron Rack units: 1U Airflow: Front-to-back (port-side intake, PSU-side exhaust) Power input: 2x 650W AC (RPS19-E), hot-swappable, included in the -E2 bundle Throughput: 4.0 Tbps switching capacity / 2.0 Bpps forwarding Warranty: 3 years, Townsend Networks Returns: 30 days
