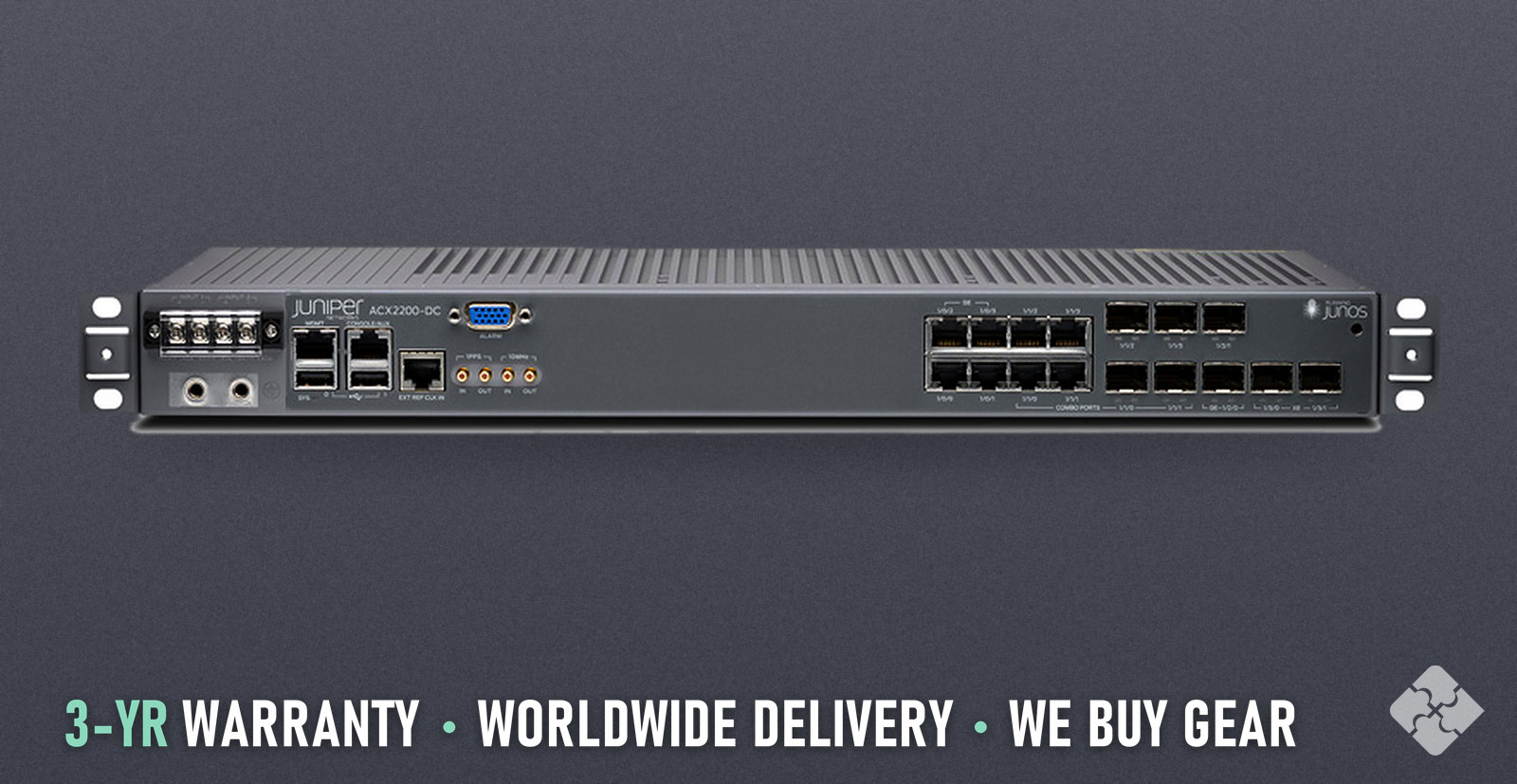

ACX2200-DC Juniper Router, DC Power, Refurbished, 8x 1GbE RJ45, 2x 1GbE SFP and 2x 10GbE SFP+
- Condition
- Refurbished, tested & guaranteed
- WARRANTY & RETURNS
- ACX2200-DC has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
- Availability
- In stock
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
The Juniper ACX2200-DC is a router from the Juniper ACX2200 family with 8 ports of 1GbE RJ45, 2 ports of 1GbE SFP, 2 ports of 10GbE SFP+ and DC power. It is a Layer 3 managed platform, with a 1U rack-mount form factor. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.
- HOW IT DIFFERS
- ACX2200-DC has DC power; its sister ACX2200-AC has AC power.
- Model
- ACX2200-DC
- Network Ports
- 10 × 1GbE
- Connectors
- RJ45, SFP, SFP+
- Type
- Router
- Condition
- Refurbished, tested & guaranteed
Technical details
| Brand | Juniper |
|---|---|
| Family | ACX2200 |
| Uplinks | 2x 10GbE SFP+ |
| Total ports | 12 |
| Fastest port | 10GbE |
| Layer | Layer 3 (managed) |
| Form factor | 1U rack-mount |
| Rack units | one rack unit (U; that is, 1.75 in., or 4.45 cm) tall |
| Airflow | Fanless (passive cooling) |
| Power input | DC |
| Throughput | Up to 60 Gbps |
| Dimensions | 1.75 in. (4.45 cm) high, 17.5 in. (44.5 cm) wide, 9.4 in. (24 cm) deep |
| Weight | 8.3 lb (3.77 kg) maximum weight |
| Mounting | 19-in. equipment racks, telco open-frame racks, or enclosed cabinets |
| Fans | fanless models |
| Input voltage | -48 V telco nominal or -60 V telco nominal or +24 VDC nominal |
| Operating temperature | -40° to 149° F (-40° to 65° C) |
| Acoustic noise | 0 dB (negligible; only passive cooling is used) |
How it differs from the ACX2200-AC
Here is how Juniper's documents set the ACX2200-DC apart from the ACX2200-AC. Input voltage: -48 V telco nominal or -60 V telco nominal or +24 VDC nominal on the ACX2200-DC, against 90 to 240 V AC on the ACX2200-AC.
Both are listed with the same rack units: one rack unit (U; that is, 1.75 in., or 4.45 cm) tall. Both are listed with the same weight: 8.3 lb (3.77 kg) maximum weight. Both are listed with the same dimensions (height x width x depth): 1.75 in. (4.45 cm) high, 17.5 in. (44.5 cm) wide, 9.4 in. (24 cm) deep.
Sister listing: ACX2200-AC
Maker documents: ACX2200 Universal Metro Router Specs | HPE Juniper Networking US, ACX2200 System Overview | Juniper Networks
Juniper ACX2200-DC / 4x GbE RJ-45, 4x GbE combo (RJ-45 or SFP), 2x GbE SFP, 2x 10GbE SFP+, up to 60 Gbps, DC power (-48V/-60V/+24V), fanless 1U, -40 to 65 C hardened
WHAT'S INCLUDED
One (1) Juniper ACX2200-DC.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed ACX2200-DC was tested by Townsend Networks technicians before listing. The test process is on the testing process.
