Is the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards end of life?

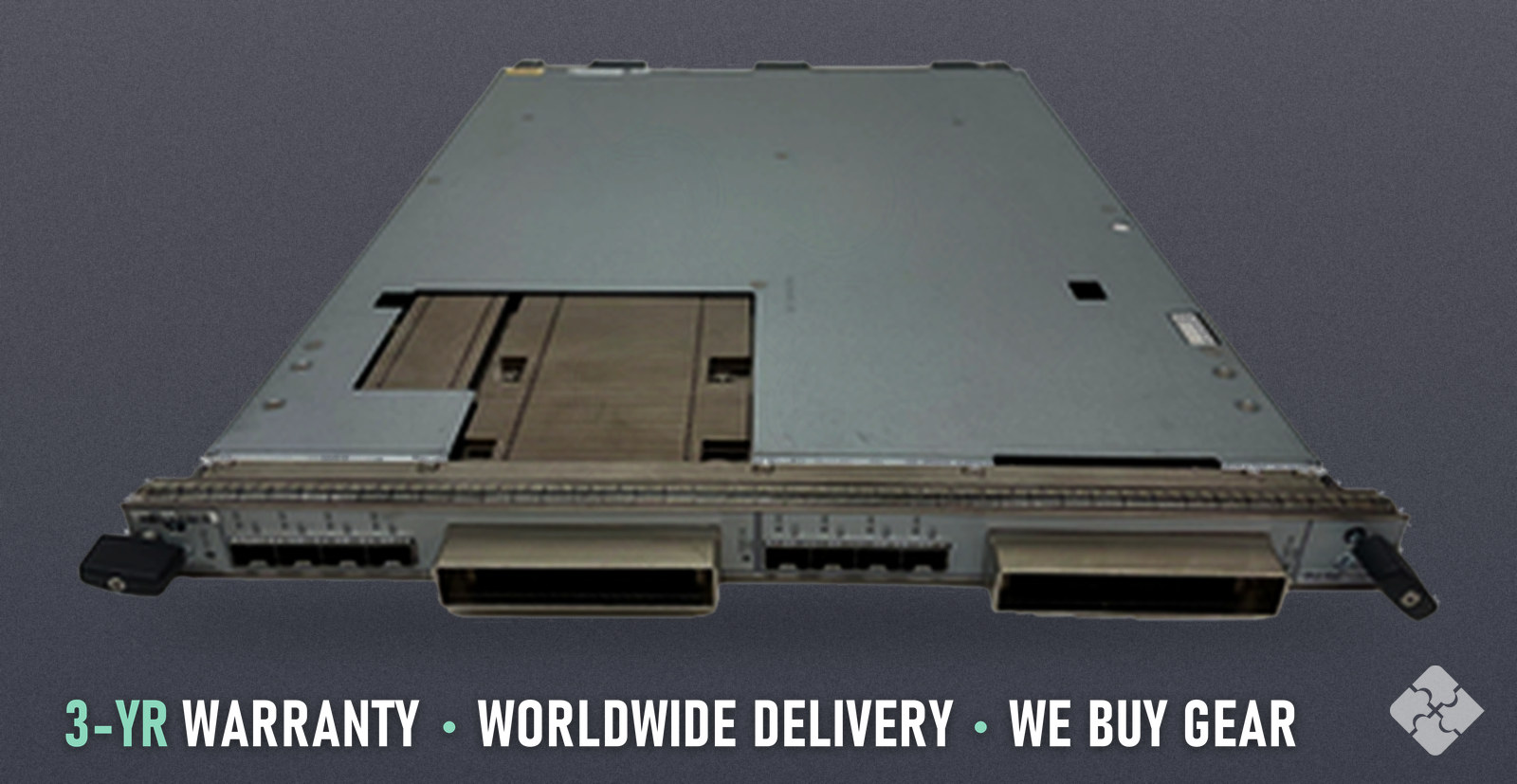

Name: MPC4E-3D-2CGE-8XGE Juniper Line Card, Refurbished, 8x 10GbE SFP+ and 2x 100GbE CFP
Brand: Juniper
SKU: MPC4E-3D-2CGE-8XGE
Price: 1240.00 USD
Availability: InStock

Juniper ended the sale of the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards on June 30, 2021. Its support ended on June 30, 2026. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

MPC4E-3D-2CGE-8XGE Juniper Line Card, Refurbished, 8x 10GbE SFP+ and 2x 100GbE CFP

Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: MPC4E-3D-2CGE-8XGE has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$1,240

Free US ground shipping

Orders placed by 12pm ship the same day.

Request a quote 415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Juniper MPC4E-3D-2CGE-8XGE is a line card with 8 ports of 10GbE SFP+ and 2 ports of 100GbE CFP. It is a module that installs into a host chassis and does not run on its own. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. It ships as the module only.

Model: MPC4E-3D-2CGE-8XGE
Network Ports: 8 × 10GbE
Connectors: CFP, SFP+
Type: Line Card
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Juniper
Product line	Juniper MX Series MPC4E
Uplinks	2x 100GbE CFP
Total ports	10
Fastest port	100GbE
Throughput	up to 260 Gbps line rate
Dimensions	Height = 1.25 in. (3.2 cm), Width = 17 in. (43.2 cm), Depth = 22 in. (55.9 cm)
Weight	19.4 lb (8.8 kg)
Jumbo frames	9,192 bytes host bound; 9,500 bytes on Junos OS 16.1R1 and later

Juniper datasheet

Testing process

End of sale and support

Model	Announced	End of sale	End of support	Notice
Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards	2020-06-30	2021-06-30	2026-06-30	Juniper notice

Questions about the Juniper MX Line Cards family

Is the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards end of life?: Juniper ended the sale of the Juniper MPC-3D-16XGE, MPC3E, MPC4E and MIC-3D-20GE line cards on June 30, 2021. Its support ended on June 30, 2026. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

Juniper MPC4E-3D-2CGE-8XGE / 2x 100GbE CFP + 8x 10GbE SFP+ ports, up to 260 Gbps, MX240/MX480/MX960

WHAT'S INCLUDED

One (1) Juniper MPC4E-3D-2CGE-8XGE. Ships as the module only; it installs into a host chassis, so no rack kit, power cables or console cord are included.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed MPC4E-3D-2CGE-8XGE was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
