When is the end of sale for the MX204-HWBASE-AC-FS?

Juniper's end of sale date for the MX204-HWBASE-AC-FS is June 15, 2027, and its end of support date is June 30, 2032.

What ports does the MX204-HWBASE-AC-FS have?

The MX204-HWBASE-AC-FS has 8 × 10GbE, with uplinks of 4x 40/100GbE QSFP28 and 12 data ports in all.

What are the size and weight of the MX204-HWBASE-AC-FS?

The MX204-HWBASE-AC-FS measures 1.72 x 19 x 18.5 in (4.37 x 48.26 x 47.0 cm) and weighs 22.7 lb (10.3 kg) fully loaded.

What is the throughput of the MX204-HWBASE-AC-FS?

The MX204-HWBASE-AC-FS has a throughput of 400 Gbps.

Which way does the air flow on the MX204-HWBASE-AC-FS?

The airflow of the MX204-HWBASE-AC-FS is front-to-back (AFO).

What power does the MX204-HWBASE-AC-FS use?

The MX204-HWBASE-AC-FS uses AC.

Is the Juniper MX204-HW-BASE end of life?

Juniper ends the sale of the Juniper MX204 (MX204-HW-BASE) on June 15, 2027. Its support ends on June 30, 2032. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.

MX204-HWBASE-AC-FS Juniper Router, Front-Back, New Open Box, 8x 10GbE SFP+ and 4x 40/100GbE QSFP28

Condition: New, open box
WARRANTY & RETURNS: MX204-HWBASE-AC-FS has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$8,495

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

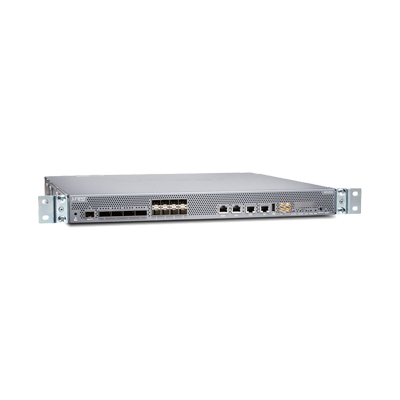

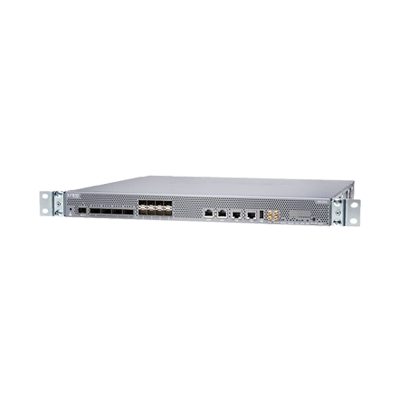

The Juniper MX204-HWBASE-AC-FS is a router from the Juniper MX204 family with 8 ports of 10GbE SFP+, 4 ports of 40/100GbE QSFP28, front-to-back airflow and AC power. It runs Junos OS, with a 1U rack-mount form factor. This unit is new, open box: unused, in its original packaging. What ships with it is listed under What's included.

Maker description: MX204 chassis with 3 fan trays and 2 power supplies, R mode MX204 Fixed AC System - HW and standard Junos; feature right to use must be ordered separately
HOW IT DIFFERS: MX204-HWBASE-AC-FS is the MX204 Fixed AC System in R mode: chassis with 3 fan trays and 2 power supplies, hardware and standard Junos, with the feature right to use ordered separately. Its sister MX204-HW-BASE is the integrated SKU: the same chassis, fans and power supplies with base hardware and standard Junos software, perpetual.
End of sale: June 15, 2027 Juniper notice

Model: MX204-HWBASE-AC-FS
Network Ports: 8 × 10GbE
Connectors: SFP+, QSFP28
Type: Router
Condition: New, open box

Technical details

Brand	Juniper
Family	MX204
Uplinks	4x 40/100GbE QSFP28
Total ports	12
Fastest port	100GbE
Operating system	Junos OS
Form factor	1U rack-mount
Rack units	1U
Airflow	Front-to-back (AFO)
Power input	AC
Throughput	400 Gbps
Dimensions	1.72 x 19 x 18.5 in (4.37 x 48.26 x 47.0 cm)
Weight	22.7 lb (10.3 kg) fully loaded
Fans	3 fan modules (JNP-FAN-1RU)
Power supplies	2 (JPSU-650W-AC-AO AC or JPSU-650W-DC-AFO DC, 650 W)
Input voltage	100 to 240 VAC, or -40 to -72 VDC
Power draw (typical)	240 W fully loaded at 25°C
Power draw (maximum)	280 W fully loaded at 55°C
Heat output	1705 BTU/hour (500 W) maximum
Operating temperature	32 to 104°F (0 to 40°C); short term 23 to 131°F (-5 to 55°C)
Operating humidity	5% to 90%, noncondensing
Operating altitude	Up to 10,000 ft (3048 m) with no performance degradation
CPU	Built-in Routing Engine (RE-S-1600x8); datasheet: 8 cores, 32GB DDR4, 2 x 100 GB SSD
End of support	June 30, 2032

Juniper datasheet

Testing process

End of sale and support

Model	Announced	End of sale	End of support	Notice
Juniper MX204 (MX204-HW-BASE)	2026-06-15	2027-06-15	2032-06-30	Juniper notice

Juniper end-of-life notice TSB107750. End of engineering is 2030-06-15.

What buyers ask

Can I get a price and the quantity available for the MX204-HWBASE-AC-FS?: Yes. Use Request a quote on this page with the part number MX204-HWBASE-AC-FS and the quantity you need. A firm price and the quantity available come back, typically the same business day.
Does the MX204-HWBASE-AC-FS ship to my address?: Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise.
What condition is the MX204-HWBASE-AC-FS in?: The MX204-HWBASE-AC-FS on this page is New Open Box. An open box unit is new.

Questions and answers

When is the end of sale for the MX204-HWBASE-AC-FS?: Juniper's end of sale date for the MX204-HWBASE-AC-FS is June 15, 2027, and its end of support date is June 30, 2032.
What ports does the MX204-HWBASE-AC-FS have?: The MX204-HWBASE-AC-FS has 8 × 10GbE, with uplinks of 4x 40/100GbE QSFP28 and 12 data ports in all.
What are the size and weight of the MX204-HWBASE-AC-FS?: The MX204-HWBASE-AC-FS measures 1.72 x 19 x 18.5 in (4.37 x 48.26 x 47.0 cm) and weighs 22.7 lb (10.3 kg) fully loaded.
What is the throughput of the MX204-HWBASE-AC-FS?: The MX204-HWBASE-AC-FS has a throughput of 400 Gbps.
Which way does the air flow on the MX204-HWBASE-AC-FS?: The airflow of the MX204-HWBASE-AC-FS is front-to-back (AFO).
What power does the MX204-HWBASE-AC-FS use?: The MX204-HWBASE-AC-FS uses AC.
Is the Juniper MX204-HW-BASE end of life?: Juniper ends the sale of the Juniper MX204 (MX204-HW-BASE) on June 15, 2027. Its support ends on June 30, 2032. The dates are from the maker notice linked in the end of sale table on this page. The hardware keeps working after them; what ends is the maker's side: new software fixes, support cases and replacement under a maker contract.
