Brocade MLXe Line Cards and Modules

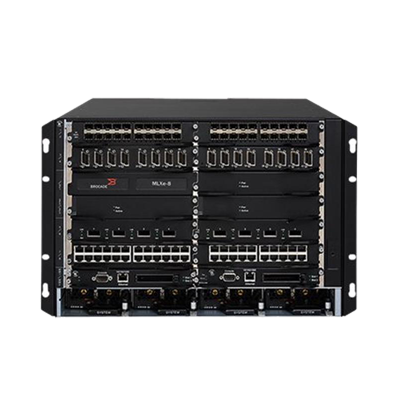

The Brocade MLXe are chassis routers in 4, 8, 16 and 32 slot sizes. The MLXe-4 is 5U, the MLXe-8 7U and the MLXe-16 14U; the 4 and 8 slot chassis take four 1200 W or 1800 W AC or DC power supplies and the 16 slot chassis eight, with 1+1 redundancy. The BR-MLXE-8-AC bundle ships with 2 high speed switch fabric modules, 2 1200 W AC power supplies and 2 exhaust fan kits; management modules are ordered separately.
Sources: ExtremeRouting MLX Series Technical Specifications, Extreme Routing MLX Series Hardware Installation Guide
Selling Brocade MLXe hardware? Get an offer
Brocade MLXe facts from the maker
- BR-MLXE-4-S
- MLX-4 spare chassis; 5U; four 1200 W or 1800 W supplies; side to back airflow Sources: Extreme Routing MLX Series Hardware Installation Guide, ExtremeRouting MLX Series Technical Specifications
- BR-MLXE-8-S
- MLX-8 spare chassis; 7U; four 1200 W or 1800 W supplies; side to back airflow Sources: Extreme Routing MLX Series Hardware Installation Guide, ExtremeRouting MLX Series Technical Specifications
- BR-MLXE-16-S
- MLX-16 spare chassis; 14U; eight 1200 W or 1800 W supplies; front to back airflow Sources: Extreme Routing MLX Series Hardware Installation Guide, ExtremeRouting MLX Series Technical Specifications
- BR-MLXE-8-AC
- Bundle: 2 NI-X-16-8-HSF fabrics, 2 NI-X-ACPWR 1200 W AC supplies, 2 BR-MLXE-8-FAN kits Source: Extreme Routing MLX Series Hardware Installation Guide
- BR-MLXE-DCPWR-1800
- 1800 W DC for 4, 8 and 16 slot MLXe and 8 and 16 slot XMR/MLX; -48 VDC nominal Sources: Extreme Routing MLX Series Hardware Installation Guide, ExtremeRouting MLX Series Technical Specifications
- BR-MLXE-32-ACPWR-3000
- 3000 W AC for 32 slot MLXe/XMR/MLX; no low line AC input Sources: Extreme Routing MLX Series Hardware Installation Guide, ExtremeRouting MLX Series Technical Specifications
- Weight (empty)
- MLXe-4 27 kg (60 lb); MLXe-8 36 kg (78 lb); MLXe-16 42 kg (100 lb) Source: ExtremeRouting MLX Series Technical Specifications
Updated
Guides on the Brocade MLXe
Rangeto
Brocade MLXe Line Cards and Modules in the catalog
BR-MLX-100GX2-CFP2-M Brocade Module, Refurbished, 2x 100GbE CFP2
In stock
$1,895Ships same day
BR-MLX-10GX20-M Brocade Line Card, Refurbished, 20x 1/10GbE SFP+
In stock
$760Ships same day
BR-MLX-100GX2-CFP2-X2 Brocade Line Card, Refurbished, 2x 100GbE CFP2
In stock
$660Ships same day
BR-MLX-10GX20-X2 Brocade Line Card, Refurbished, 20x 1/10GbE SFP+
In stock
$345Ships same day
XBR-ACPWR-3000 Brocade Power Supply, AC Input, New, 3000 W AC power supply for 32-slot NetIron MLXe
In stock
$290Ships same day
BR-MLX-10GX24-DM Brocade Line Card, Refurbished, 24x 10GbE SFP+
In stock
$225Ships same day
BR-MLX-100GX2-X Brocade Line Card, Refurbished, 2x 100GbE CFP
In stock
$220Ships same day
BR-MLX-MR2-M Brocade Management Module, Refurbished, MLXe-MLX Series Gen2 Management Module
In stock
$105Ships same day
BR-MLX-1GCX24-X-ML Brocade Line Card, Refurbished, 24x 1GbE RJ45
In stock
$100Ships same day
BR-MLX-1GFX24-X Brocade Line Card, Refurbished, 24x 1GbE SFP
In stock
$80Ships same day
BR-MLX-1GFX24-X-ML Brocade Module, Refurbished, 24x 1GbE SFP
In stock
$75Ships same day
Brocade MLXe part numbers
| Part number | Ports | Airflow | Power | Condition | End of sale | Price | Stock |
|---|---|---|---|---|---|---|---|
| BR-MLXE-8-S | Side-to-back | Four 1200 W or 1800 W AC or DC, 1+1 redundancy | Refurbished, tested & guaranteed | $3,955 | In stock | ||
| BR-MLX-100GX2-CFP2-M | 2 × 100GbE | Refurbished, tested & guaranteed | $1,895 | In stock | |||
| BR-MLX-10GX20-M | 20 × 1/10GbE | Refurbished, tested & guaranteed | $760 | In stock | |||
| BR-MLX-100GX2-CFP2-X2 | 2 × 100GbE | Refurbished, tested & guaranteed | $660 | In stock | |||
| BR-MLX-MR2-X | Refurbished, tested & guaranteed | $365 | In stock | ||||
| BR-MLX-10GX20-X2 | 20 × 1/10GbE | Refurbished, tested & guaranteed | $345 | In stock | |||
| XBR-ACPWR-3000 | 200 to 240 VAC nominal (180 to 264 VAC range), 50/60 Hz | New | $290 | In stock | |||
| BR-MLX-10GX24-DM | 24 × 10GbE | Refurbished, tested & guaranteed | $225 | In stock | |||
| BR-MLX-100GX2-X | 2 × 100GbE | Refurbished, tested & guaranteed | $220 | In stock | |||
| NI-MLX-MR | Refurbished, tested & guaranteed | $145 | In stock | ||||
| BR-MLX-MR2-M | Refurbished, tested & guaranteed | $105 | In stock | ||||
| BR-MLX-1GCX24-X-ML | 24 × 1GbE | Refurbished, tested & guaranteed | $100 | In stock | |||
| BR-MLX-1GFX24-X | 24 × 1GbE | Refurbished, tested & guaranteed | $80 | In stock | |||
| BR-MLX-1GFX24-X-ML | 24 × 1GbE | Refurbished, tested & guaranteed | $75 | In stock | |||
| BR-MLXE-ACPWR-1800 | Refurbished, tested & guaranteed | $55 | In stock |
End of sale and support
| Model | Announced | End of sale | End of support | Replacement | Notice |
|---|---|---|---|---|---|
| Brocade MLXe (MLX line cards, chassis, management) | Extreme SLX 9920 | Brocade notice |
Questions about the Brocade MLXe family
- What comes in the BR-MLXE-8-AC bundle?
- 2 high speed switch fabric modules (NI-X-16-8-HSF), 2 1200 W AC power supplies (NI-X-ACPWR), 2 exhaust fan kits (BR-MLXE-8-FAN) and 1 air filter; management modules are ordered separately.Source: Extreme Routing MLX Series Hardware Installation Guide
- How many power supplies does an MLXe chassis take?
- Four on the MLXe-4 and MLXe-8 and eight on the MLXe-16: 1200 W or 1800 W, AC or DC, with 1+1 redundancy.Source: ExtremeRouting MLX Series Technical Specifications
More of the catalog
More Brocade series
- Ruckus ICX Switches
- Ruckus ICX7250
- Ruckus ICX7450
- Ruckus ICX7650
- Ruckus ICX7750
- Ruckus ICX7850
- Brocade VDX Switches
- Brocade VDX 6740
- Brocade VDX 6740T
- Brocade VDX 6940
- Brocade SAN Switches
- Brocade 6500 Series

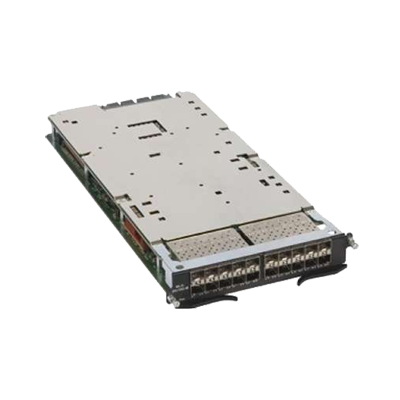

- Brocade MLXe 10GbE Modules

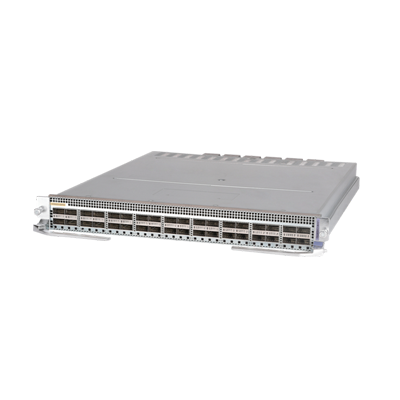

- Brocade MLXe 100GbE Modules
