Cisco ASR 9000 Parts

This page holds Cisco ASR 9000 chassis and parts. The 10RU ASR 9006 AC chassis has 2 route switch processor slots and 4 line card slots, 3 kW AC power modules in N+N redundancy and right to back airflow. The A9K-RSP440-TR gives 220 Gbps per slot with one RSP and 440 Gbps with two; the A9K-RSP880-TR gives up to 880 Gbps. Cisco gives November 13, 2014 as the end of sale date for the first ASR-9006-AC chassis and names the ASR-9006-AC-V2 to follow.

Sources: Cisco ASR 9000 Series Aggregation Services Routers Data Sheet, Cisco ASR 9000 Series Route Switch Processor 440 Data Sheet, Cisco ASR 9000 Route Switch Processor 880 Data Sheet, End-of-Sale and End-of-Life Announcement for the Cisco ASR 9000 Series Version 1 Power Bundles

Selling Cisco ASR 9000 hardware? Get an offer

Cisco ASR 9000 facts from the maker

ASR-9006-AC
10RU; 2 RSP slots and 4 line card slots; 3 kW AC power modules, N+N redundant Source: Cisco ASR 9000 Series Aggregation Services Routers Data Sheet
A9K-RSP440-TR
220 Gbps per slot with one RSP, 440 Gbps with two (full duplex) Source: Cisco ASR 9000 Series Route Switch Processor 440 Data Sheet
A9K-RSP880-TR
880 Gbps non-redundant, 440 Gbps redundant (ASR 9904, 9010, 9006) Source: Cisco ASR 9000 Route Switch Processor 880 Data Sheet
Airflow (ASR 9006)
Right to back: intake at the right side, exhaust at the upper rear Sources: Cisco ASR 9000 Series Aggregation Services Routers Data Sheet, Cisco ASR 9000 Series Overview and Reference Guide: Functional Description
A9K-LC-FILR
Line card slot filler: keeps dust out and keeps airflow in empty slots Source: Cisco ASR 9000 Series Ethernet Line Card Installation Guide

Updated

Guides on the Cisco ASR 9000

Rangeto

Cisco ASR 9000 Parts in the catalog

ASR-9006-AC-V2 Cisco Chassis, Front-to-Back, Refurbished, ASR 9006 AC Chassis with PEM Version 2

ASR-9006-AC-V2

ASR-9006-AC-V2 Cisco Chassis, Front-to-Back, Refurbished, ASR 9006 AC Chassis with PEM Version 2

In stock

$2,485Ships same day
ASR-9006-AC Cisco Chassis, Front-to-Back, Refurbished, ASR-9006 AC Chassis

ASR-9006-AC

ASR-9006-AC Cisco Chassis, Front-to-Back, Refurbished, ASR-9006 AC Chassis

In stock

$1,800Ships same day

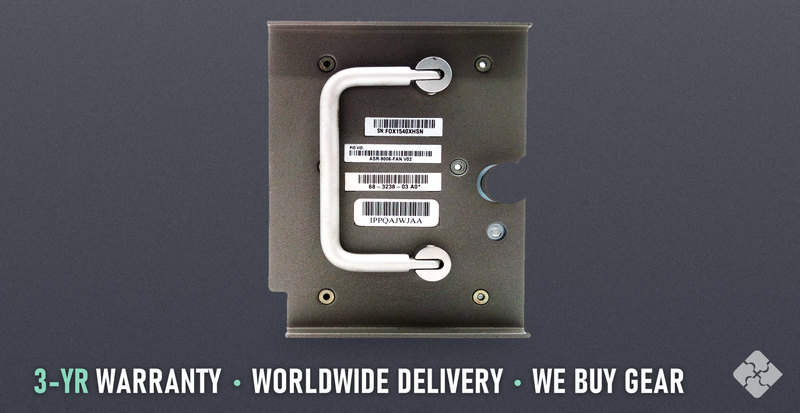

ASR-9006-FAN Cisco Fan Tray, Refurbished, ASR 9006 fan, 2 fan trays per chassis

ASR-9006-FAN

ASR-9006-FAN Cisco Fan Tray, Refurbished, ASR 9006 fan, 2 fan trays per chassis

In stock

$1,265Ships same day
A9K-RSP880-TR Cisco Routing Engine, Refurbished, ASR 9000 Route Switch Processor 880, 16 GB DRAM

A9K-RSP880-TR

A9K-RSP880-TR Cisco Routing Engine, Refurbished, ASR 9000 Route Switch Processor 880, 16 GB DRAM

In stock

$880Ships same day

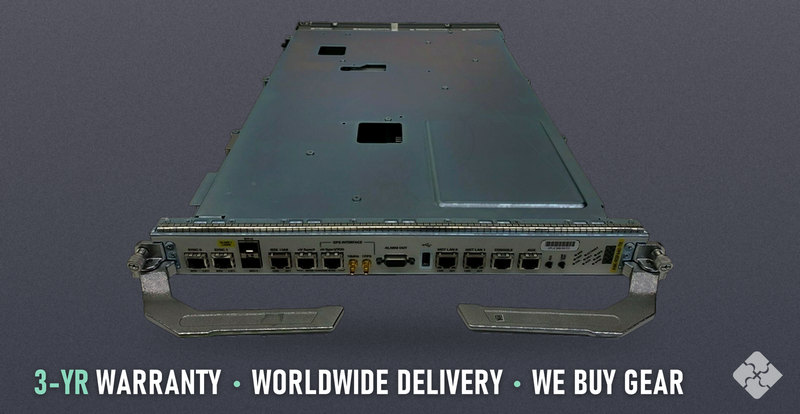

A9K-RSP440-TR Cisco Routing Engine, Refurbished, ASR 9000 Route Switch Processor

A9K-RSP440-TR

A9K-RSP440-TR Cisco Routing Engine, Refurbished, ASR 9000 Route Switch Processor

In stock

$145Ships same day

Cisco ASR 9000 part numbers

Part numberAirflowPowerConditionEnd of salePriceStock
ASR-9006-AC-V2Right-to-back; front-to-back with baffle3 kW AC power modules, AC N+N redundancyRefurbished, tested & guaranteed$2,485In stock
ASR-9006-ACRight-to-back; front-to-back with baffle3 kW AC power modules, N+N redundant (ASR 9006 AC chassis)Refurbished, tested & guaranteed$1,800In stock
ASR-9006-FANRight-to-back: intake at the right side of the chassis, exhaust at the upper rearRefurbished, tested & guaranteed$1,265In stock
A9K-RSP880-TRRefurbished, tested & guaranteed$880In stock
A9K-RSP440-TRRefurbished, tested & guaranteed$145In stock

End of sale and support

ModelAnnouncedEnd of saleEnd of supportReplacementNotice
Cisco ASR 9000 RSP440A9K-RSP880-RL-TR, A9K-RSP880-LT-TRCisco notice
Cisco ASR 9000 RSP880A9K-RSP5-TRCisco notice

Questions about the Cisco ASR 9000 family

What replaced the ASR-9006-AC?
Cisco's end of sale notice names the ASR-9006-AC-V2, the ASR 9006 AC chassis with version 2 power entry modules.Source: End-of-Sale and End-of-Life Announcement for the Cisco ASR 9000 Series Version 1 Power Bundles
Can two different route switch processors share an ASR 9000 chassis?
No. Cisco says both route switch processors in a 1+1 redundant pair must be of the same kind.Source: Cisco ASR 9000 Route Switch Processor 880 Data Sheet
How is the ASR 9006 cooled?
Right to back: air enters at the right side of the chassis and exhausts at the upper rear, or front to back with a baffle.Source: Cisco ASR 9000 Series Aggregation Services Routers Data Sheet
