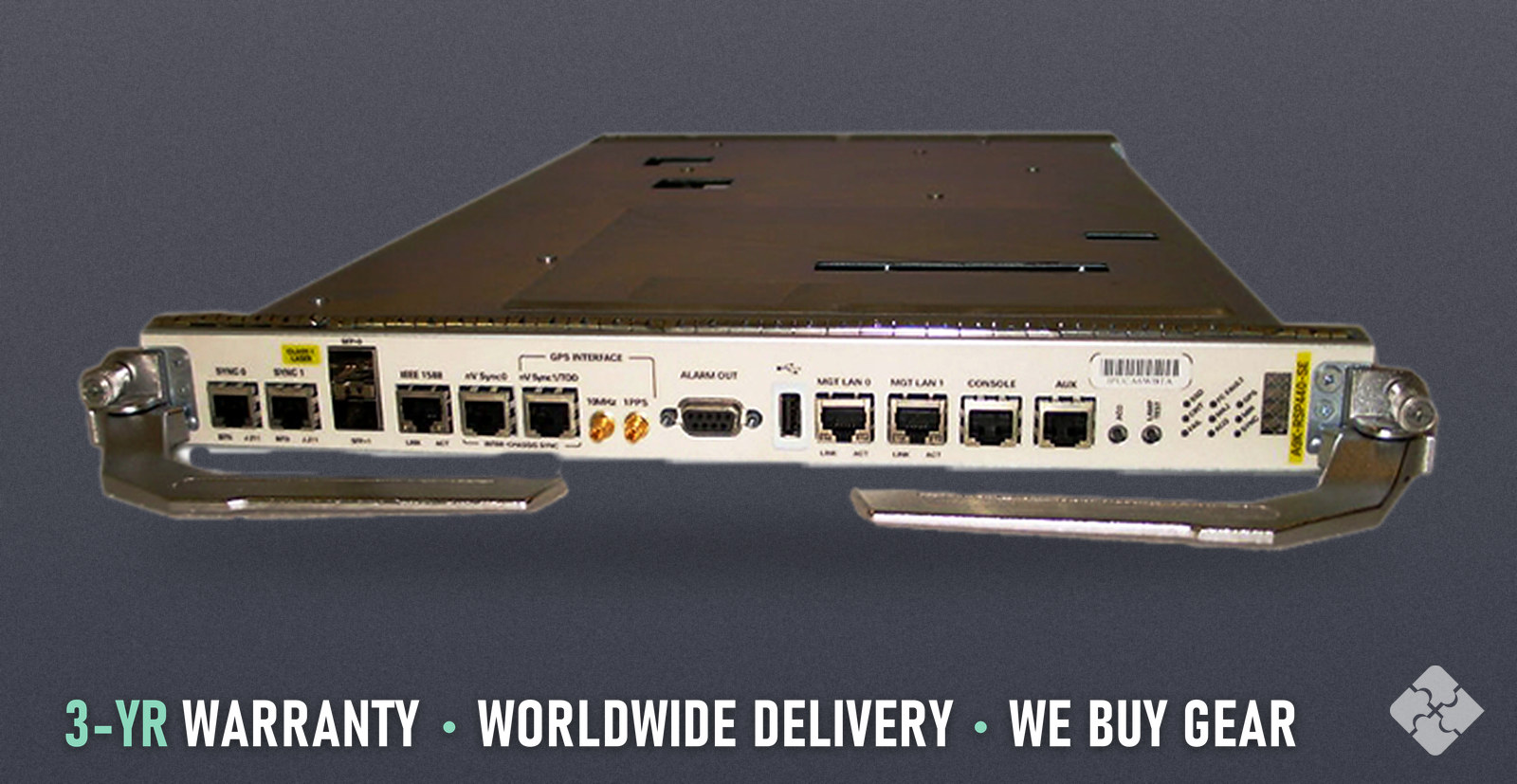

A9K-RSP880-TR Cisco Routing Engine, Refurbished, ASR 9000 Route Switch Processor 880, 16 GB DRAM

A9K-RSP880-TR Cisco Routing Engine, Refurbished, ASR 9000 Route Switch Processor 880, 16 GB DRAM

Condition
Refurbished, tested & guaranteed
WARRANTY & RETURNS
A9K-RSP880-TR has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability
In stock

$880

Free US ground shipping

Orders placed by 12pm ship the same day.

Request a quote415-626-4231

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Cisco A9K-RSP880-TR is a routing engine. It is a module that installs into a host chassis and does not run on its own. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. It ships as the module only.

Maker description
ASR 9000 Route Switch Processor 880 for Packet Transport 16G
Compatible with
ASR 9904, ASR 9006 and ASR 9010 chassis, in a 1+1 redundant pair where both route switch processors must be of the same kind. The RSP880-LT variants also cover the ASR 9910 and ASR 9906, which this packet transport RSP880 does not.
HOW IT DIFFERS
A9K-RSP880-TR is the later packet transport route switch processor in this pair, with 16 GB of ECC DRAM, two 32 GB SSDs and an 8 core 1.9 GHz processor. The data sheet lists its fabric at 880 non redundant or 440 redundant on the ASR 9904, 9010 and 9006, weighs it at 17.8 lb (8.07 kg), and starts it at IOS XR 5.3.0. Its sister A9K-RSP440-TR has 6 GB of DRAM and two 16 GB SSDs and works from IOS XR 4.2.0.
Model
A9K-RSP880-TR
Type
Routing Engine
Condition
Refurbished, tested & guaranteed

Technical details

BrandCisco
Product lineCisco ASR 9000 RSP880
Management portsTwo 100/1000BASE-T (RJ-45) LAN management ports
Throughput440 Gbps per slot with one RSP or 1+1 redundant; 880 Gbps per slot with dual active RSPs (non-redundant)
Memory (DRAM)16 GB ECC-protected
Flash storageTwo 32 GB SSDs; 8 GB embedded USB

Cisco datasheet

Testing process

End of sale and support

ModelAnnouncedEnd of saleEnd of supportReplacementNotice
Cisco ASR 9000 RSP880A9K-RSP5-TRCisco notice

Questions about the Cisco ASR 9000 family

What do TR and SE mean on an ASR 9000 RSP?
TR is Cisco's packet transport version and SE its service edge version. The SE versions carry more memory for large service deployments: 12 GB on the RSP440-SE against 6 GB on the RSP440-TR, and 32 GB on the RSP880-SE against 16 GB on the RSP880-TR.
What is the difference between the A9K-RSP440-TR and the A9K-RSP880-TR?
The RSP 880 is the later generation. Cisco's data sheets give the RSP440-TR 6 GB of ECC DRAM and 220 Gbps of fabric capacity per slot with one RSP, 440 Gbps with two; the RSP880-TR has 16 GB of ECC DRAM and Cisco rates its fabric at 880G non-redundant and 440G redundant. When Cisco ended sale of the RSP 440 it pointed customers to RSP 880 part numbers.
Are the RSP 440 and RSP 880 end of life?
Yes. The A9K-RSP440-TR reached end of sale on 30 August 2017 and its last date of support was 31 August 2022. The A9K-RSP880-TR reached end of sale on 1 August 2022 and its last date of support is 31 July 2027; Cisco named the A9K-RSP5-TR as its replacement.
Which ASR 9000 chassis take these route switch processors?
Cisco lists both the RSP 440 and the RSP 880 for the ASR 9904, ASR 9010 and ASR 9006 chassis. The ASR-9006-FAN is the fan tray for the ASR 9006 only.
What condition and warranty come with a Cisco ASR 9000 part from Townsend?
Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.

WHAT'S INCLUDED

One (1) Cisco A9K-RSP880-TR. Ships as the module only; it installs into a host chassis, so no rack kit, power cables or console cord are included.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed A9K-RSP880-TR was tested by Townsend Networks technicians before listing. The test process is on the testing process.
