What do TR and SE mean on an ASR 9000 RSP?

TR is Cisco's packet transport version and SE its service edge version. The SE versions carry more memory for large service deployments: 12 GB on the RSP440-SE against 6 GB on the RSP440-TR, and 32 GB on the RSP880-SE against 16 GB on the RSP880-TR.

Which ASR 9000 chassis take these route switch processors?

Cisco lists both the RSP 440 and the RSP 880 for the ASR 9904, ASR 9010 and ASR 9006 chassis. The ASR-9006-FAN is the fan tray for the ASR 9006 only.

What condition and warranty come with a Cisco ASR 9000 part from Townsend?

Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.

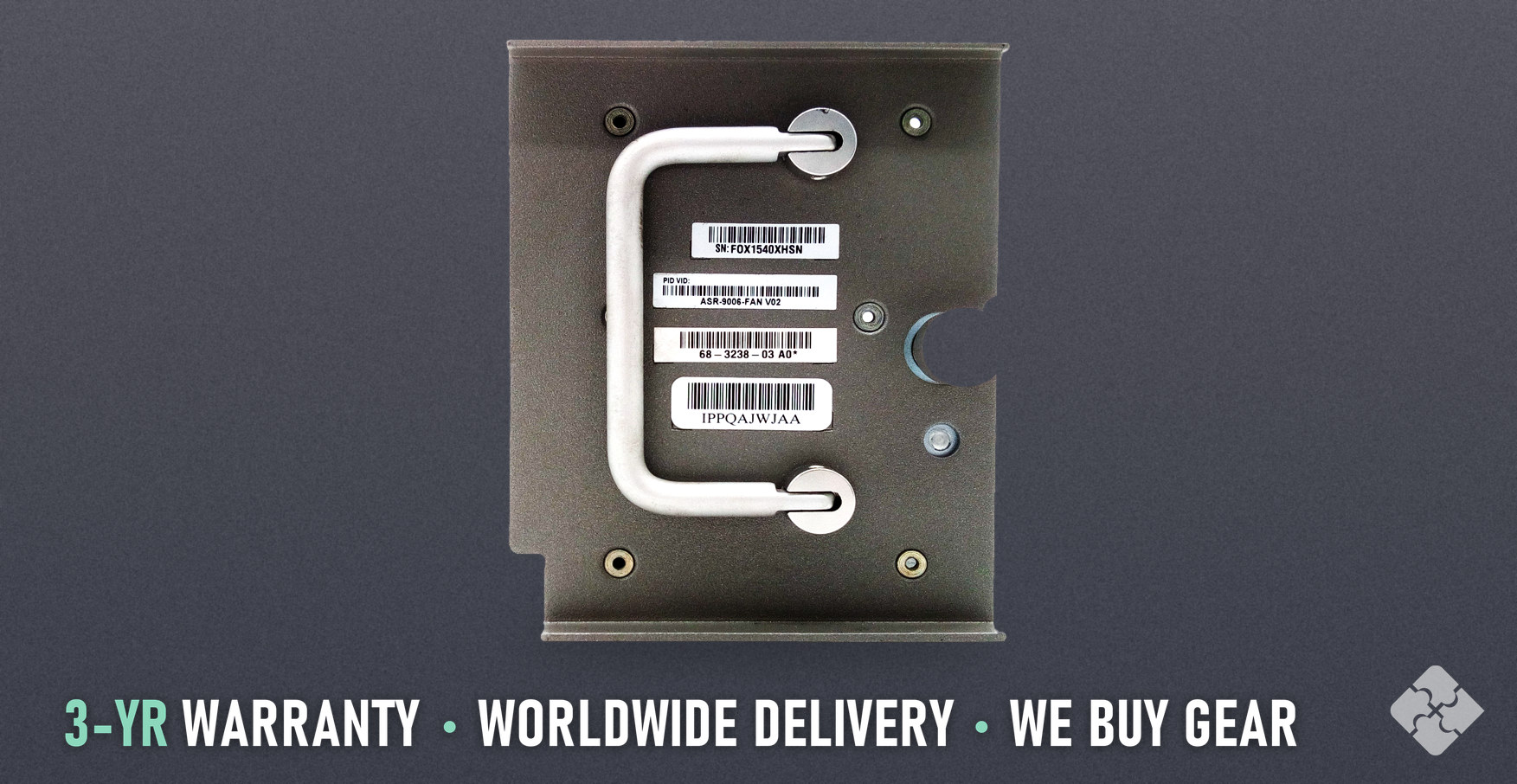

ASR-9006-FAN Cisco Fan Tray, Refurbished, ASR 9006 fan, 2 fan trays per chassis

Condition: Refurbished, tested & guaranteed
WARRANTY & RETURNS: ASR-9006-FAN has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on the warranty page and the refund policy.
Availability: In stock

$1,265

Orders placed by 12pm ship the same day.

A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.

The Cisco ASR-9006-FAN is a fan tray from the Cisco ASR9006 family. It is a hot-swappable field-replaceable unit with no firmware or configuration. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One unit per order.

HOW IT DIFFERS: ASR-9006-FAN is the version 1 fan tray of the Cisco ASR 9006. The router contains two fan trays for redundancy, each with six axial 92 mm fans and a side-to-top to rear cooling path, inlet at the right side and exhaust at the upper rear. Cisco ended sale of ASR-9006-FAN on September 22, 2017, named ASR-9006-FAN-V2, the ASR-9006 Fan Tray Version 2, as its replacement, and set the last date of support at September 30, 2022.
End of sale: September 22, 2017

Model: ASR-9006-FAN
Type: Fan Tray
Condition: Refurbished, tested & guaranteed

Technical details

Brand	Cisco
Family	ASR9006
Airflow	Right-to-back: intake at the right side of the chassis, exhaust at the upper rear
End of support	September 30, 2022
Replacement model	ASR-9006-FAN-V2

Cisco datasheet

Testing process

What buyers ask

Which chassis does the ASR-9006-FAN fit, and how many fans are in it?: It is the fan tray of the Cisco ASR 9006 Router. Cisco says the ASR 9006 contains two fan trays for redundancy, and each tray holds six axial 92 mm (3.62 in) fans with a fan control board at its back end that connects to the backplane.
Which way does the air flow through the ASR 9006 with this fan tray?: Cisco gives the ASR 9006 a side-to-top-to-rear cooling path: the inlet is at the right side of the chassis and the exhaust is at the upper rear. Cisco also says the fan trays provide full redundancy and maintain the required cooling if a single fan fails.
Can the ASR-9006-FAN be replaced while the router is running, and is there a newer version?: Cisco says a single ASR 9006 fan tray can be swapped while the system is operational, with no cables or fibers moved and no interruption of service. Cisco's end-of-sale notice lists the ASR-9006-FAN with an end-of-sale date of September 22, 2017, and gives the ASR-9006-FAN-V2, the version 2 fan tray, as its replacement.

Questions about the Cisco ASR 9000 family

What do TR and SE mean on an ASR 9000 RSP?: TR is Cisco's packet transport version and SE its service edge version. The SE versions carry more memory for large service deployments: 12 GB on the RSP440-SE against 6 GB on the RSP440-TR, and 32 GB on the RSP880-SE against 16 GB on the RSP880-TR.
Which ASR 9000 chassis take these route switch processors?: Cisco lists both the RSP 440 and the RSP 880 for the ASR 9904, ASR 9010 and ASR 9006 chassis. The ASR-9006-FAN is the fan tray for the ASR 9006 only.
What condition and warranty come with a Cisco ASR 9000 part from Townsend?: Each listing prints its own condition. Units sold as new, refurbished or used are bench tested before they are listed: every port and module slot is checked and the previous owner's configuration is erased. They are covered by the Townsend warranty from the date of delivery; if the hardware fails in normal use we repair it or replace it with a tested unit, and the length and terms are on our warranty page. Unused hardware can be returned within 30 days of delivery. Cisco software licences and support contracts are not part of our warranty.

Cisco ASR 9006 fan, 2 fan trays per chassis

WHAT'S INCLUDED

One (1) Cisco ASR-9006-FAN.

CONDITION & TESTING

Condition: Refurbished, Tested & Guaranteed ASR-9006-FAN was tested by Townsend Networks technicians before listing. The test process is on the testing process.

Selling your Cisco ASR-9006-FAN? We buy used network gear.

Questions about the ASR-9006-FAN? Call 415-626-4231 or email sales@townsendnetworks.com.
