Ruckus ICX 7550 Switches

The RUCKUS ICX 7550 are stackable switches. The ICX7550-24F-E2 has 24 1/10 Gbps SFP+ ports, 2 40/100 Gbps QSFP28 uplink and stacking ports and a modular slot, with 1080 Gbps of switching capacity and 803 Mpps, and comes with 2 400 W AC power supplies and 3 fans. The ICX7550-48ZP-E2 gives 1,020 Gbps and 759 Mpps. Up to 12 switches stack on the 100 Gbps QSFP ports, at distances up to 10 km.

Sources: RUCKUS ICX 7550 Switch Data Sheet, RUCKUS ICX 7550 Switches

Selling Ruckus ICX 7550 hardware? Get an offer

Ruckus ICX 7550 facts from the maker

ICX7550-24F-E2
24 x 1/10 Gbps SFP+ + 2 x 40/100 Gbps QSFP28 + 1 modular slot; 1080 Gbps; 803 Mpps Source: RUCKUS ICX 7550 Switch Data Sheet
Power supplies
2 x 400 W AC (ICX7550-24F-E2 bundle), hot-swap, load sharing Source: RUCKUS ICX 7550 Switch Data Sheet
Fans
3 hot-swap fans (N+1 redundancy); front to back airflow (ICX7550-24F-E2) Source: RUCKUS ICX 7550 Switch Data Sheet
Stacking
Up to 12 units; long distance stacking on 100 Gbps QSFP ports up to 10 km Source: RUCKUS ICX 7550 Switches
Power draw (ICX7550-24F-E2)
66.7 W at 10% traffic; 142.7 W at 100% traffic Source: RUCKUS ICX 7550 Switch Data Sheet

Updated

Guides on the Ruckus ICX 7550

Rangeto

Ruckus ICX 7550 Switches in the catalog

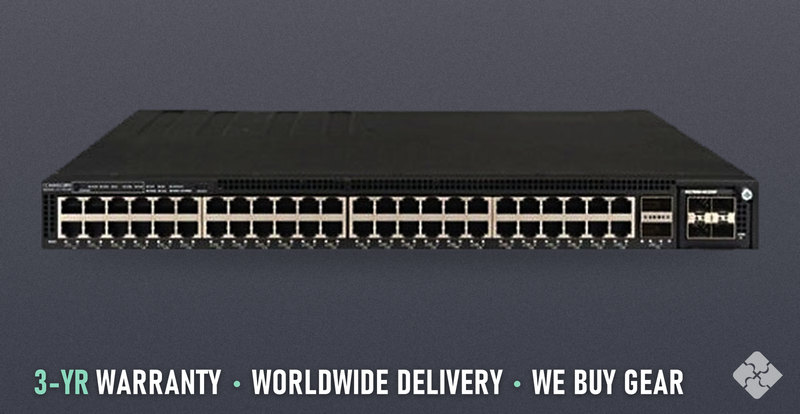

ICX7550-48ZP-E2 Ruckus Switch, 48x 2.5GbE PoE++ RJ45 (12 × 10GbE) and 2x 100GbE QSFP28

ICX7550-48ZP-E2

ICX7550-48ZP-E2 Ruckus Switch, 48x 2.5GbE PoE++ RJ45 (12 × 10GbE) and 2x 100GbE QSFP28

Refurbished, tested & guaranteed

In stock

$9,900Ships same day
ICX7550-24F-E2 Ruckus Switch, Front-to-Back, Refurbished, 24x 1/10GbE SFP+ and 2x 40/100GbE QSFP28

ICX7550-24F-E2

ICX7550-24F-E2 Ruckus Switch, Front-to-Back, Refurbished, 24x 1/10GbE SFP+ and 2x 40/100GbE QSFP28

In stock

$9,895Ships same day

Ruckus ICX 7550 part numbers

Part numberPortsAirflowPowerConditionPriceStock
ICX7550-48ZP-E248 × 2.5GbE (12 × 10GbE)Front-to-backDual load sharing power supplies for system power redundancyRefurbished, tested & guaranteed$9,900In stock
ICX7550-24F-E224 × 1/10GbEFront-to-back2 x 400 W AC (bundle), hot-swap, load sharingRefurbished, tested & guaranteed$9,895In stock

Questions about the Ruckus ICX 7550 family

How many ICX 7550 switches can be stacked?
Up to 12, with long distance stacking on the 100 Gbps QSFP ports up to 10 km.Source: RUCKUS ICX 7550 Switches
What comes with the ICX7550-24F-E2?
2 400 W AC power supplies and 3 fans with front to back airflow; port modules are sold separately.Source: RUCKUS ICX 7550 Switch Data Sheet
