ICX7550-48ZP-E2
ICX7550-48ZP-E2 Ruckus ICX7550 switch, 48x 2.5GbE PoE++ RJ45 (12 × 10GbE) and 2x 100GbE QSFP28
Refurbished, tested & guaranteedIn stock
Condition: Refurbished. Tested & Guaranteed
ICX7550-48ZP-E2, in stock, ships worldwide.
$9,900
Orders placed by 12pm ship the same day.
A firm price comes back, typically the same business day. Prefer a PO or wire? We take those too. Just ask.
- Model
- ICX7550-48ZP-E2
- Network Ports
- 48 × 2.5GbE (12 × 10GbE)
- Connectors
- RJ45, QSFP28
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Questions and answers
- What ports does the ICX7550-48ZP-E2 have?
- It has 48 × 2.5GbE (12 × 10GbE); uplinks: 2x 100GbE QSFP28. 50 data ports in all. Connectors: RJ45, QSFP28.
- What is the throughput of the ICX7550-48ZP-E2?
- Throughput is 1020 Gb/s switching capacity.
- Which way does the air flow on the ICX7550-48ZP-E2?
- Airflow is front-to-back.
- What power does the ICX7550-48ZP-E2 use?
- It uses AC, PoE budget 2000 W, 802.3bt.
- How much rack space does the ICX7550-48ZP-E2 take?
- It takes 1U of rack space.
- What software does the ICX7550-48ZP-E2 run?
- It runs RUCKUS FastIron.

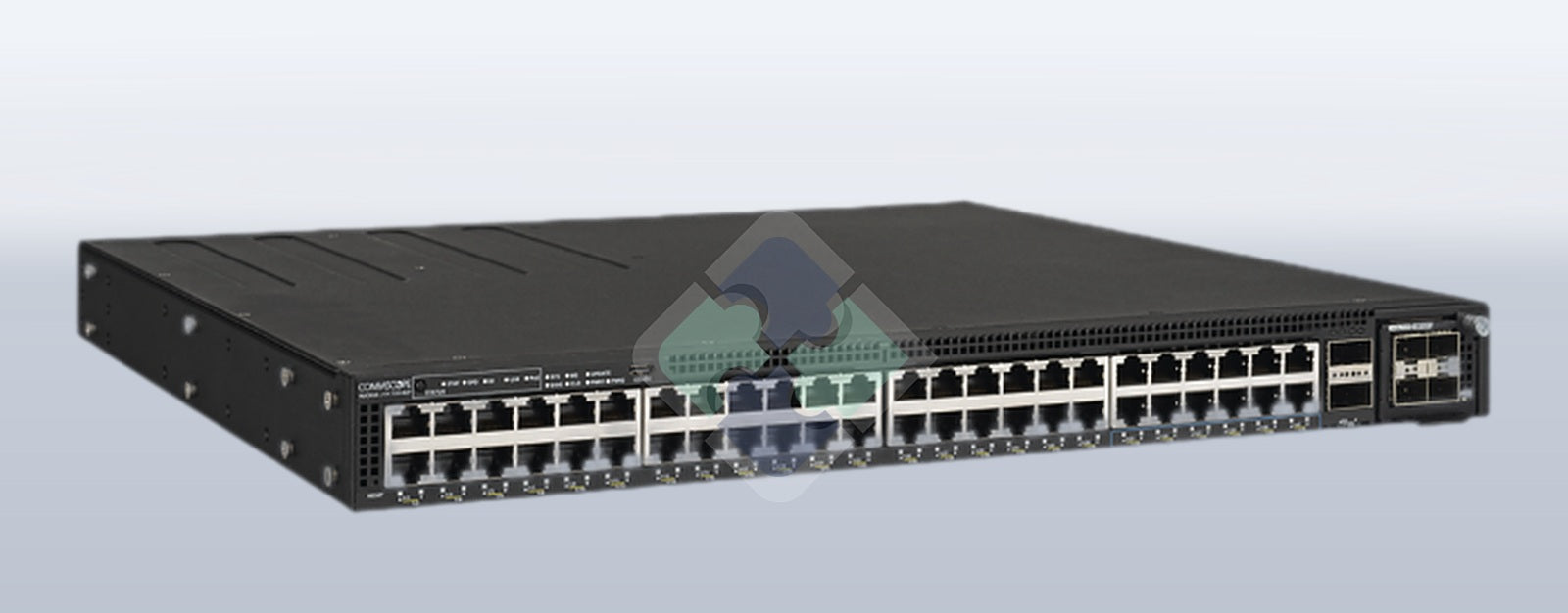

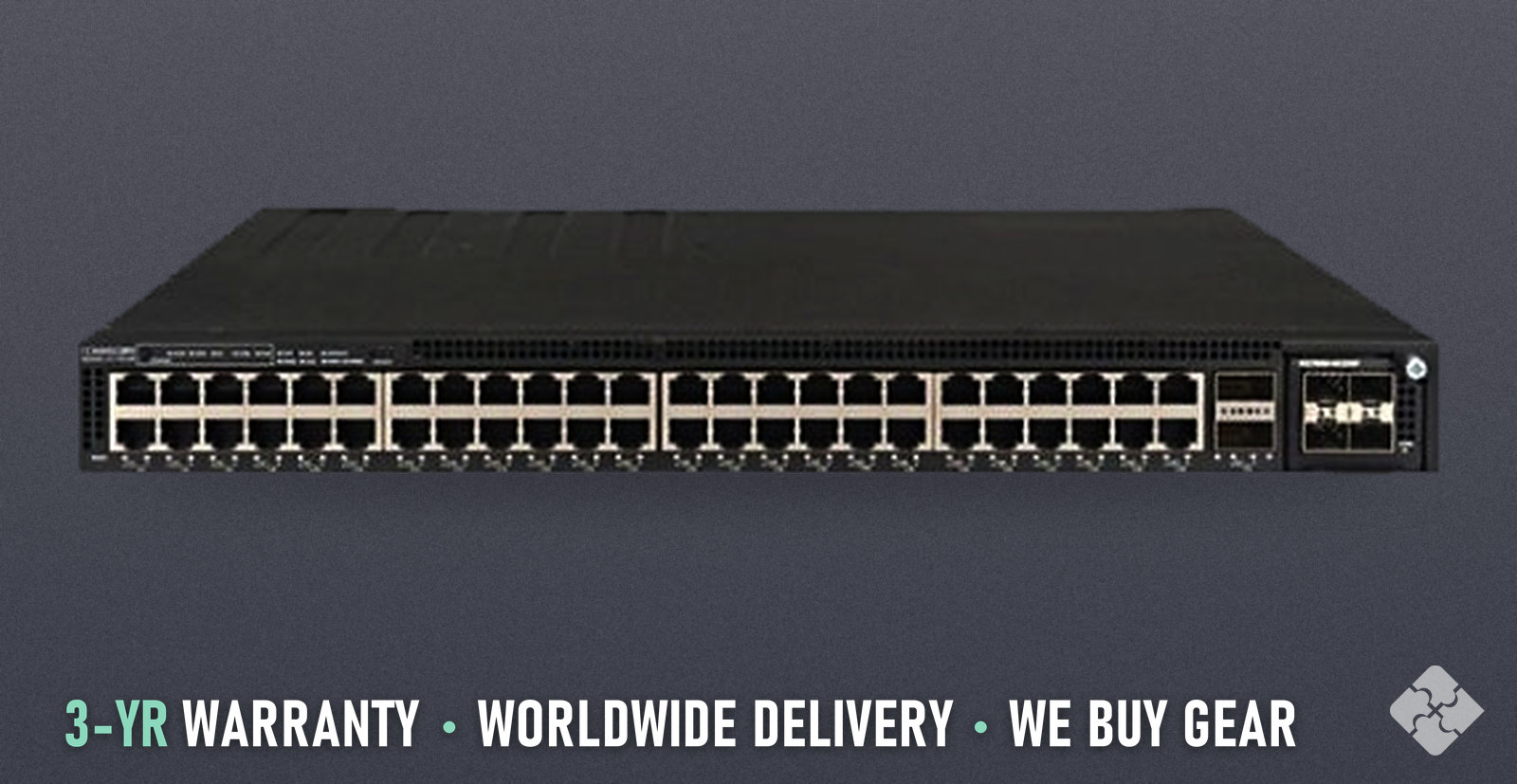

The Ruckus ICX7550-48ZP-E2 is a switch from the Ruckus ICX7550 family with 48 ports of 2.5GbE PoE++ RJ45 (12 × 10GbE) and 2 ports of 100GbE QSFP28. It runs RUCKUS FastIron, with a 1U rack-mount form factor and front-to-back airflow. This unit is refurbished: inspected, powered on and functionally tested by our technicians before listing. One switch per order, with a rack-mount kit and the power cables to match.
Ruckus ICX7550-48ZP-E2 / 36x 1/2.5GbE and 12x 1/2.5/5/10GbE multigigabit RJ-45 ports, 802.3bt PoE++ up to 90 W per port, 2000 W PoE budget, 2x 40/100GbE QSFP28 uplink/stacking ports, one modular expansion slot, 1020 Gb/s switching capacity, 2x 1200 W power supplies, front-to-back airflow, 1U
TECHNICAL DETAILS
Brand: Ruckus Family: ICX7550 Uplinks: 2x 100GbE QSFP28 Total ports: 50 Fastest port: 100GbE PoE: PoE+ (802.3at) PoE standard: 802.3bt PoE budget: 2000 W Operating system: RUCKUS FastIron Form factor: 1U rack-mount Rack units: 1U Airflow: Front-to-back Power input: AC Throughput: 1020 Gb/s switching capacity Power supplies: Dual load sharing power supplies for system power redundancy Stacking: Long distance stacking on 100 Gbps QSFP ports up to 10 km; up to 12 units Warranty: 3 years, Townsend Networks Returns: 30 days
WHAT'S INCLUDED
One (1) Ruckus ICX7550-48ZP-E2. Includes a rack-mount kit and the power cables to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed ICX7550-48ZP-E2 was tested by our technicians before listing. How we test is on /testing-process.
WARRANTY & RETURNS
ICX7550-48ZP-E2 has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
