DCS-7124SX-F

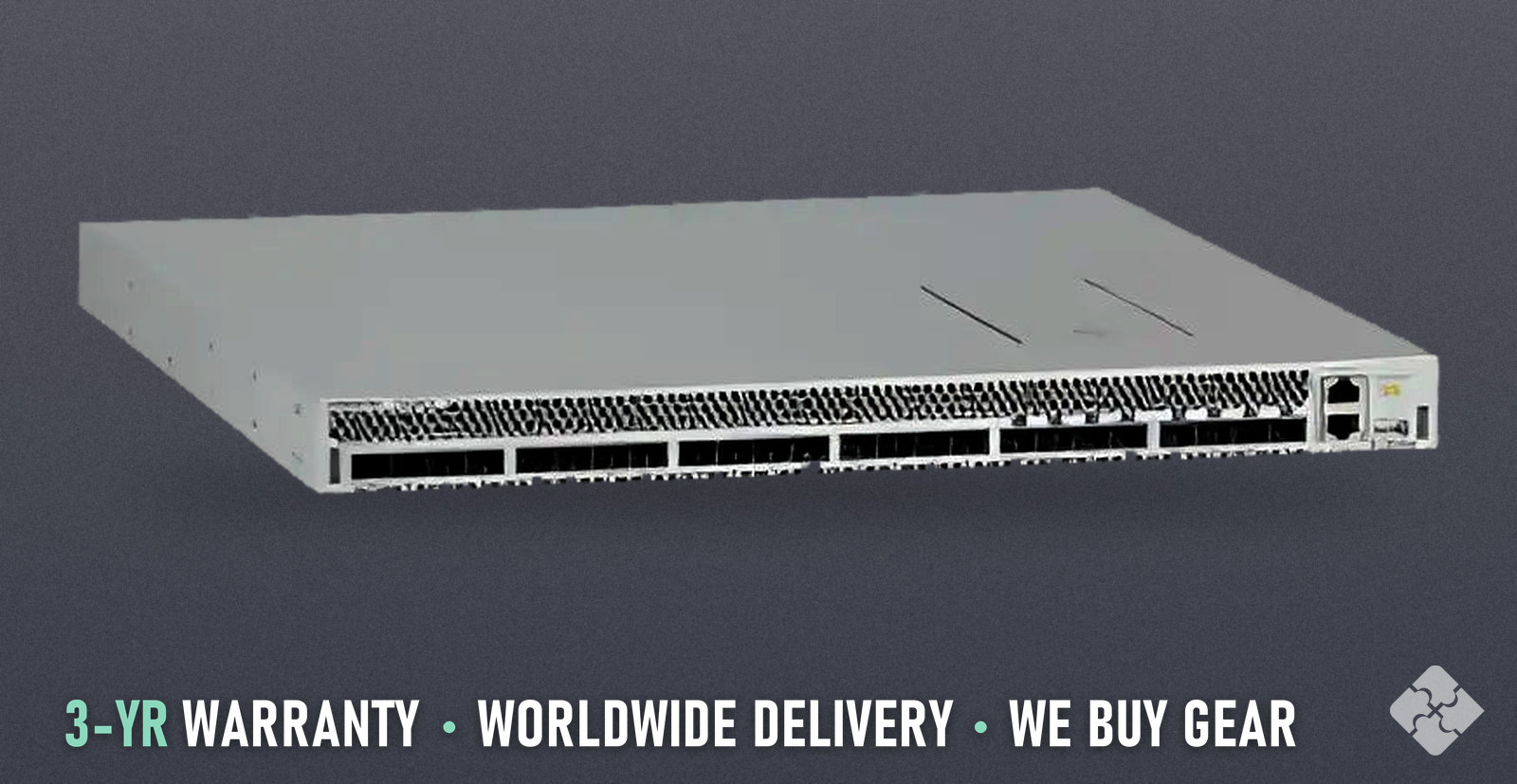

DCS-7124SX-F Arista Switch, Front-to-Back, AC Power, Used, 24x 10GbE SFP+
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
DCS-7124SX-F, in stock, ships worldwide.
$360
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- DCS-7124SX-F
- Network Ports
- 24 × 10GbE
- Connectors
- SFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Arista DCS-7124SX-F is a switch from the Arista 7124SX family with 24 ports of 10GbE SFP+, front-to-back airflow and AC power. It runs Arista EOS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
HOW IT DIFFERS
DCS-7124SX-F is the Arista 7124SX 24-port L2/L3 switch with front-to-rear airflow, 4 fans and 2 AC 460 W power supplies. Its sister DCS-7124SX-R has the same ports, fans and power supplies with rear-to-front airflow, and its sister DCS-7124S-F is the 7124S with 600 ns latency and 760 W AC supplies.
TECHNICAL DETAILS
Brand: Arista Family: 7124SX Maker description: Arista 7124SX, 24-port L2/L3 switch, front-to-rear airflow with 4 fans and 2 AC 460W power supplies End of sale: July 30, 2014 (last day to order) Management ports: 1 x 100/1000 Operating system: Arista EOS Rack units: 1U Airflow: Front-to-back Power input: AC Throughput: 480 Gbps switching, 360 Mpps forwarding Dimensions: 1.75 x 19 x 16 in (4.4 x 44.5 x 40.64 cm) Weight: 17 lb (7.71 kg) Fans: 4 hot-swappable, N+1 redundant Power supplies: 2 x 460 W AC, hot-swappable, 1+1 redundant Input voltage: 100-240 V AC Power draw (typical): 120 W Power draw (maximum): 210 W Operating temperature: 0 to 40 C Storage temperature: -40 to 70 C Operating humidity: 5 to 95% Operating altitude: 0 to 10,000 ft CPU: Dual-Core x86 Memory (DRAM): 4 GB Flash storage: 2 GB (50 GB SSD optional) Latency: 500 ns Console port: 1 x RS-232 (RJ-45) USB port: 1 End of support: July 30, 2017 (last day for 24x7 TAC support and hardware RMA) Replacement model: DCS-7150S-24-F
MAKER'S DOCUMENT
https://www.arista.com/assets/data/pdf/Datasheets/7124SX_Datasheet.pdf
WHAT'S INCLUDED
One (1) Arista DCS-7124SX-F. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed DCS-7124SX-F was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
DCS-7124SX-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
