BR-VDX6740-48-F
BR-VDX6740-48-F Brocade Switch, Front-to-Back, Refurbished, 48x 10GbE SFP+ and 4x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
BR-VDX6740-48-F, in stock, ships worldwide.
$295
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- BR-VDX6740-48-F
- Network Ports
- 48 × 10GbE
- Connectors
- SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade BR-VDX6740-48-F is a switch with 48 ports of 10GbE SFP+, 4 ports of 40GbE QSFP+, front-to-back airflow and AC power. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
HOW IT DIFFERS
BR-VDX6740-48-F is the front-to-rear airflow version of the SFP+ VDX 6740 at its 48-port tier. Extreme's installation guide says base models support 24 ports and that upgrade licenses bring the total to 48, which is the count in this part number. Power comes from two 250 W AC supplies with three integrated fans each, and a replacement unit must end in -F. The chassis weighs 8.66 kg. Its sister BR-VDX6740-48-R is the same switch with -R, rear-to-front, supplies and fans.
TECHNICAL DETAILS
Brand: Brocade Maker description: Brocade VDX 6740, 48P SFP+ ports only, no optics, AC, non-port-side exhaust airflow Uplinks: 4x 40GbE QSFP+ Total ports: 52 Fastest port: 40GbE Rack units: 1U Airflow: Front-to-back Power input: AC Dimensions: 1.75 x 17.32 x 16.14 in (4.32 x 43.99 x 40.99 cm) Weight: 8.66 kg (19.10 lb) with power supplies and fans, no transceivers Fans: 3 cooling fans integrated into the power supplies Power supplies: Two internal, redundant, field-replaceable, load-sharing AC or DC supplies Operating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 10% to 85% at 40°C (104°F), noncondensing Operating altitude: 0 to 3048 m (10,000 ft) Acoustic noise: 46.7 dB CPU: 1.5 GHz PowerPC Switching capacity: 1.28 Tbps (data rate, full duplex) Forwarding rate: 960 Mpps Latency: 850 ns port to port
MAKER'S DOCUMENT
https://web.archive.org/web/20160329041859/http://www.brocade.com/content/dam/common/documents/content-types/datasheet/brocade-vdx-6740-switches-ds.pdf
WHAT'S INCLUDED

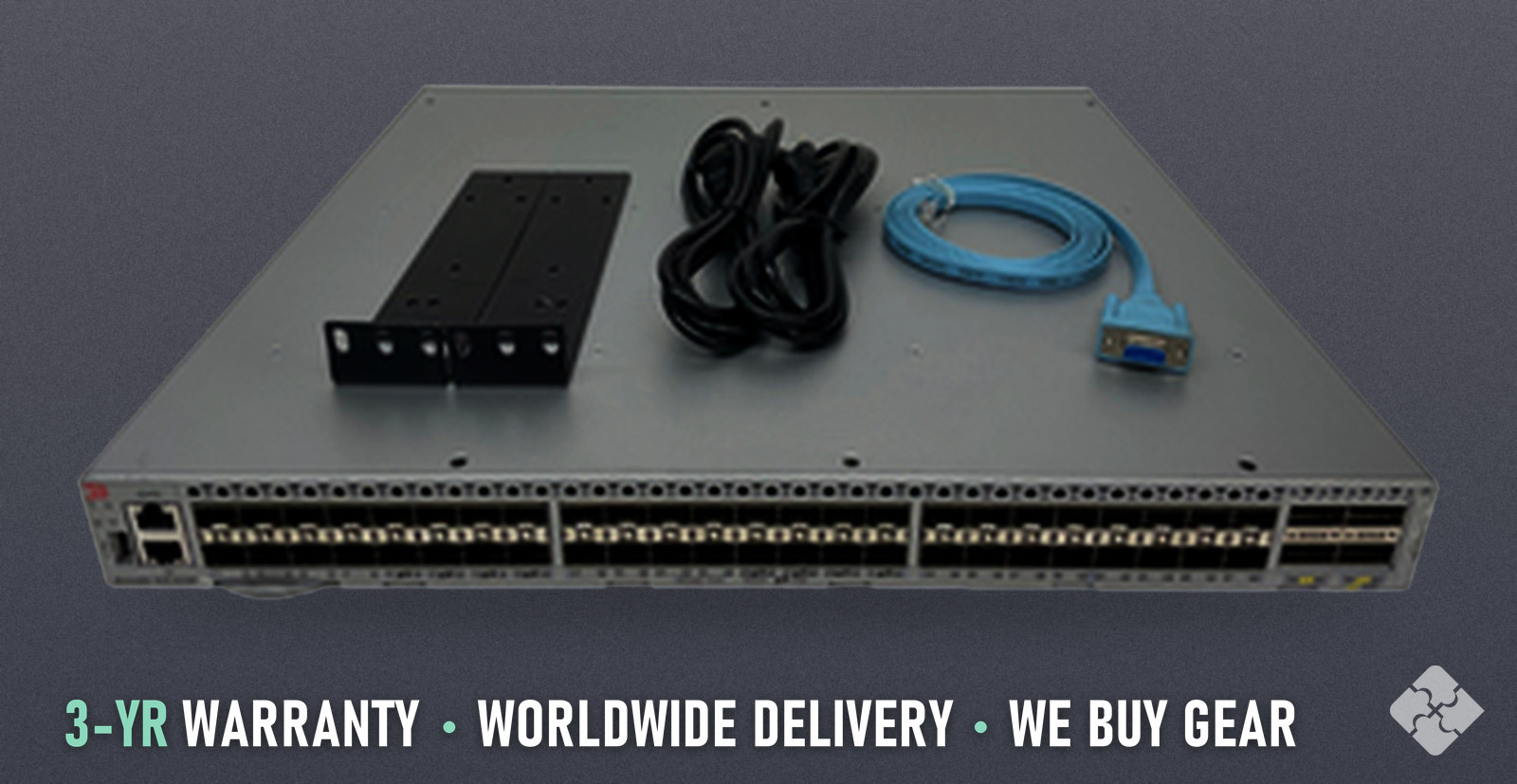

One (1) Brocade BR-VDX6740-48-F. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed BR-VDX6740-48-F was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
BR-VDX6740-48-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
WHAT BUYERS ASK
Can I get a price and the quantity available for the BR-VDX6740-48-F? Yes. Use Request a quote on this page with the part number BR-VDX6740-48-F and the quantity you need. A firm price and the quantity available come back, typically the same business day. Does the BR-VDX6740-48-F ship to my address? Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise. What condition is the BR-VDX6740-48-F in? The BR-VDX6740-48-F on this page is Refurbished, Tested & Guaranteed.
