BR-VDX6740-48-R

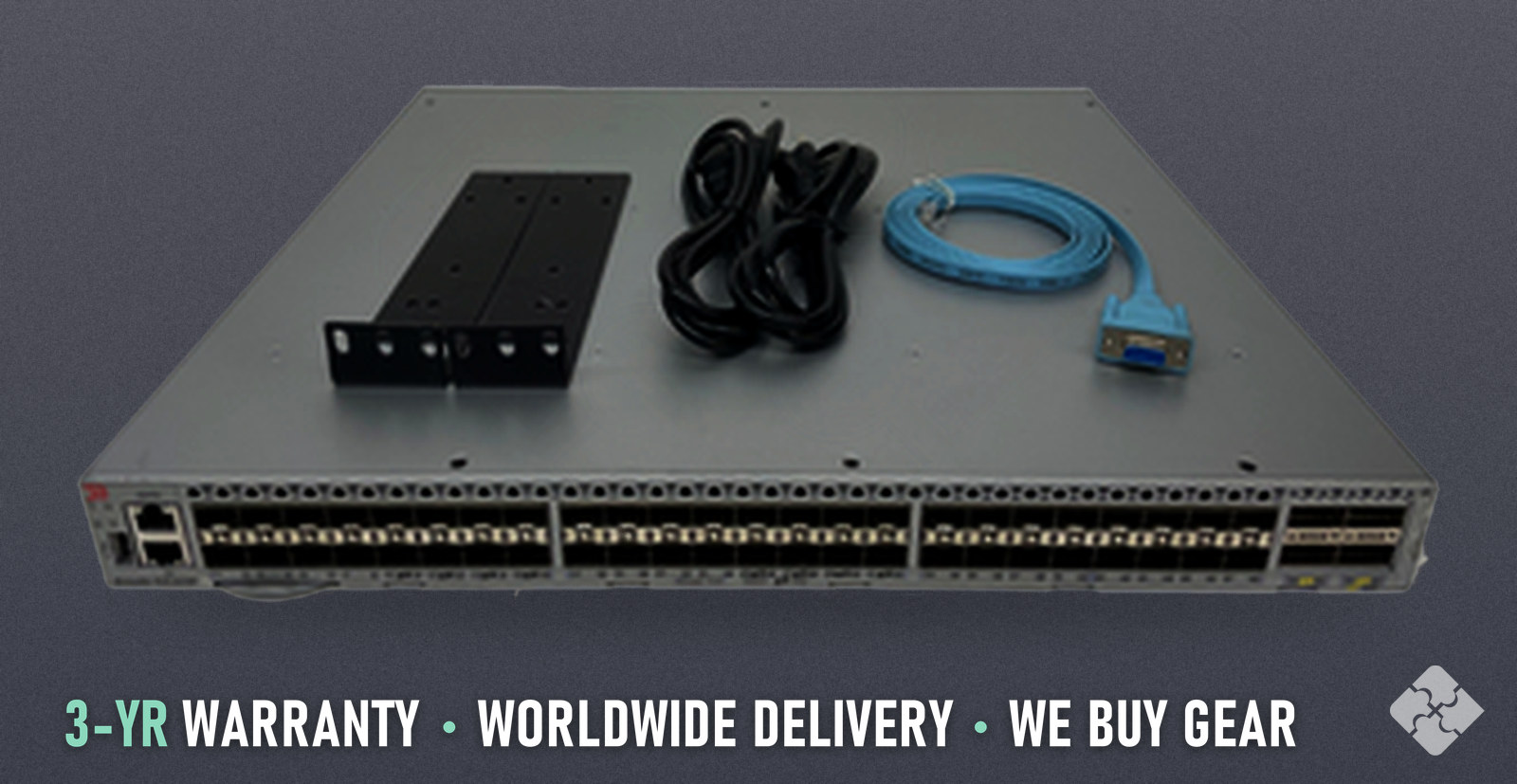

BR-VDX6740-48-R Brocade Switch, Back-to-Front, Refurbished, 48x 10GbE SFP+ and 4x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
BR-VDX6740-48-R, in stock, ships worldwide.
$390
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- BR-VDX6740-48-R
- Network Ports
- 48 × 10GbE
- Connectors
- SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade BR-VDX6740-48-R is a switch with 48 ports of 10GbE SFP+, 4 ports of 40GbE QSFP+, back-to-front airflow and AC power. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Brocade BR-VDX6740-48-R / VDX 6740 Switch, 48x 10GbE SFP+ + 4x 40GbE QSFP+ (each breakable to 4x10GbE), reverse (port-side exhaust) airflow
HOW IT DIFFERS
BR-VDX6740-48-R is the rear-to-front airflow version of the SFP+ VDX 6740 at its 48-port tier, with up to 48 1/10 GbE optical SFP+ ports once the 24 base ports are upgraded. Extreme says a part number ending in -R means rear-to-front airflow, and its two 250 W AC power supply and fan assemblies must be replaced with -R parts. Its sister BR-VDX6740-48-F keeps the ports and weight (8.66 kg) but moves air front-to-rear.
TECHNICAL DETAILS
Brand: Brocade Uplinks: 4x 40GbE QSFP+ Total ports: 52 Fastest port: 40GbE Airflow: Back-to-front: air in at the non-port side, out at the port side Power input: AC Power supplies: Dual hot-swappable 250 W AC supplies, 3 integrated fans each Input voltage: 100 to 240 V AC nominal (90 to 264 V AC range), 50/60 Hz Switching capacity: 1.28 Tbps (data rate, full duplex) Forwarding rate: 960 Mpps
MAKER'S DOCUMENT
https://web.archive.org/web/20160329041859/http://www.brocade.com/content/dam/common/documents/content-types/datasheet/brocade-vdx-6740-switches-ds.pdf
WHAT'S INCLUDED
One (1) Brocade BR-VDX6740-48-R. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed BR-VDX6740-48-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
BR-VDX6740-48-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
