BR-VDX6740-64-F
BR-VDX6740-64-F Brocade Switch, Front-to-Back, Used, 48x 1/10GbE SFP+ and 4x 40GbE QSFP+
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
BR-VDX6740-64-F, in stock, ships worldwide.
$690
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- BR-VDX6740-64-F
- Network Ports
- 48 × 1/10GbE
- Connectors
- SFP+, QSFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade BR-VDX6740-64-F is a switch with 48 ports of 1/10GbE SFP+, 4 ports of 40GbE QSFP+, front-to-back airflow and AC power. It has a 1U rack-mount form factor. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cables to match.
HOW IT DIFFERS
BR-VDX6740-64-F is the SFP+ VDX 6740 at its 64-port tier with front-to-rear airflow. Extreme counts 48 SFP+ ports plus 4 QSFP+ ports that can be split into 16 more 10 GbE ports, up to 64 1/10 GbE SFP+ ports depending on configuration. Its 40 GbE ports come from a 40G Port Upgrade license, which adds two or four. Its sister BR-VDX6740-64-R has the same port count with rear-to-front airflow and -R power supplies.
TECHNICAL DETAILS
Brand: Brocade Product line: Brocade VDX 6740 Maker description: Brocade VDX 6740, 64P SFP+ ports only, no optics, AC, non-port-side exhaust airflow Uplinks: 4x 40GbE QSFP+ Total ports: 52 Fastest port: 40GbE Form factor: 1U rack-mount Rack units: 1U Airflow: Non-port-side exhaust (port-side intake, front-to-back) Power input: AC Throughput: 1.28 Tbps switching bandwidth (full duplex), 960 Mpps Dimensions: 1.75 x 17.32 x 16.14 in (4.32 x 43.99 x 40.99 cm) Weight: 8.66 kg (19.10 lb) with power supplies and fans, no transceivers Fans: 3 cooling fans integrated into the power supplies Power supplies: Two internal, redundant, field-replaceable, load-sharing AC or DC supplies Operating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 10% to 85% at 40°C (104°F), noncondensing Operating altitude: 0 to 3048 m (10,000 ft) Acoustic noise: 46.7 dB CPU: 1.5 GHz PowerPC Latency: 850 ns port to port
MAKER'S DOCUMENT
https://web.archive.org/web/20160329041859/http://www.brocade.com/content/dam/common/documents/content-types/datasheet/brocade-vdx-6740-switches-ds.pdf
WHAT'S INCLUDED

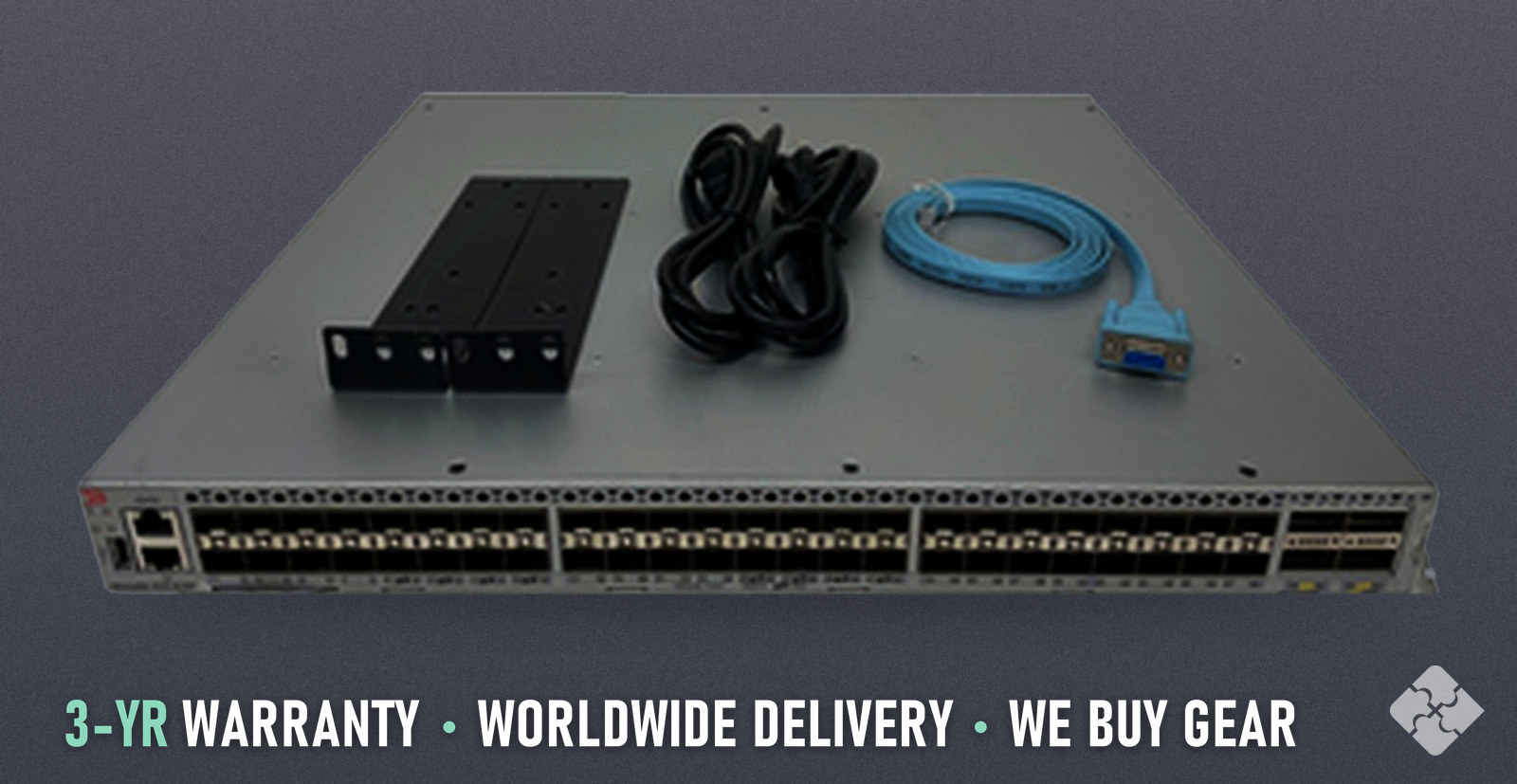

One (1) Brocade BR-VDX6740-64-F. Includes a rack-mount kit and the power cables to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed BR-VDX6740-64-F was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
BR-VDX6740-64-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
