BR-VDX6740T-48-F
BR-VDX6740T-48-F Brocade Switch, Front-to-Back, Refurbished, 48x 1/10GbE RJ45 and 4x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
BR-VDX6740T-48-F, in stock, ships worldwide.
$3,995
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- BR-VDX6740T-48-F
- Network Ports
- 48 × 1/10GbE
- Connectors
- RJ45, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade BR-VDX6740T-48-F is a switch with 48 ports of 1/10GbE RJ45, 4 ports of 40GbE QSFP+, front-to-back airflow and AC power. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.

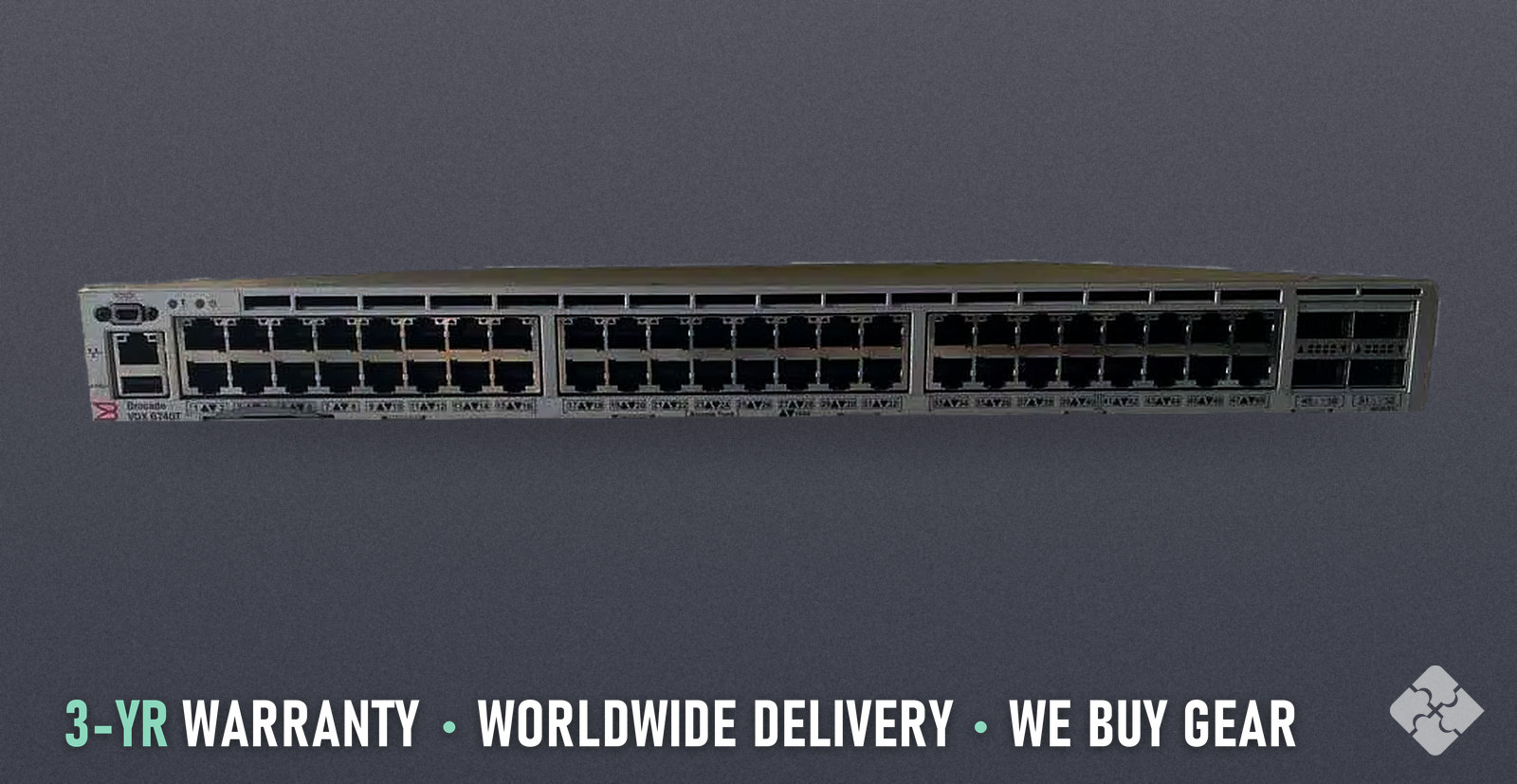

Brocade BR-VDX6740T-48-F / VDX 6740T Switch, 48x 10GBASE-T Copper Ports + 40GbE QSFP+ Uplinks, AC power, Standard Airflow (Non-Port-Side Exhaust)
HOW IT DIFFERS
BR-VDX6740T-48-F is the front-to-back VDX 6740T. In Extreme's installation guide a part with a number ending in -F carries the green E symbol: it pulls air in at the port side and exhausts it out the non-port side, and the 6740T supplies and fans can be ordered either way. Its sister BR-VDX6740T-48-R is the same 10GBASE-T switch with -R parts and the orange I symbol for rear-to-front airflow. A failed supply or fan has to be swapped for one of the same type, so this chassis takes -F parts.
TECHNICAL DETAILS
Brand: Brocade Compatible with: Front-to-back (-F, green E) power supplies and fan units only. Extreme warns that fitting a mismatched power supply or fan assembly raises a console warning, MISMATCH in FAN Air Flow direction, so a -R supply or fan does not belong in this -F switch. Uplinks: 4x 40GbE QSFP+ Total ports: 52 Fastest port: 40GbE Airflow: Front-to-back: air in at the port side, out at the non-port side Power input: AC Power supplies: Dual hot-swappable 500 W AC supplies; 5 separate hot-swap fans Input voltage: 100 to 240 V AC nominal (90 to 264 V AC range), 50/60 Hz
MAKER'S DOCUMENT
https://documentation.extremenetworks.com/networkos/HW/vdx6740-installguide.pdf
WHAT'S INCLUDED
One (1) Brocade BR-VDX6740T-48-F. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed BR-VDX6740T-48-F was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
BR-VDX6740T-48-F has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
