BR-VDX6940-144S-AC-R

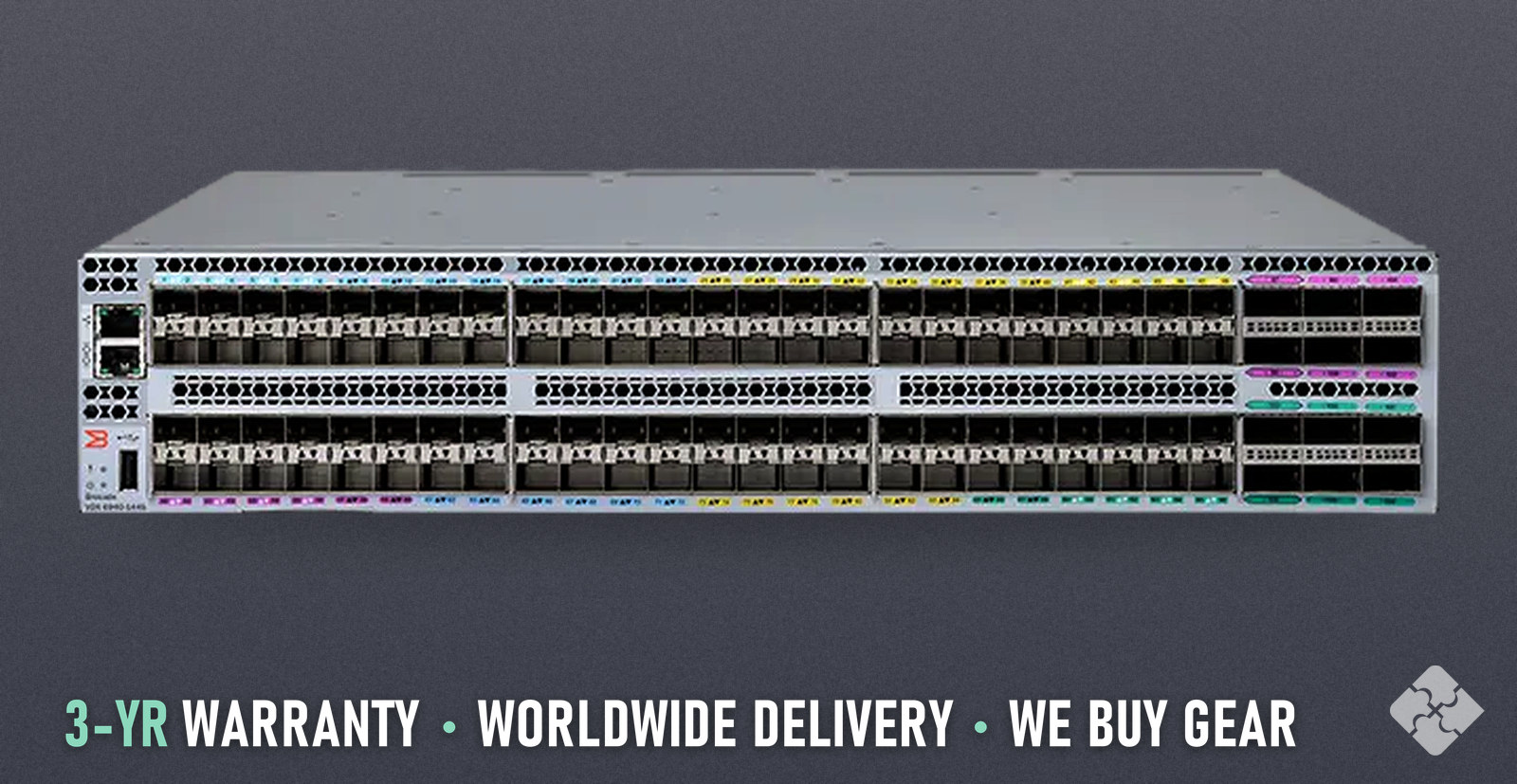

BR-VDX6940-144S-AC-R Brocade Switch, Refurbished, 96x 10GbE SFP+ and 12x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
BR-VDX6940-144S-AC-R, in stock, ships worldwide.
$1,695
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- BR-VDX6940-144S-AC-R
- Network Ports
- 96 × 10GbE
- Connectors
- SFP+, QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade BR-VDX6940-144S-AC-R is a switch with 96 ports of 10GbE SFP+, 12 ports of 40GbE QSFP+, back-to-front airflow and AC power. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Brocade BR-VDX6940-144S-AC-R / VDX 6940-144S Switch, 96x 10GbE SFP+ + 12x 40GbE QSFP+ (4 Convertible to 100GbE QSFP28), AC Power, Back-to-Front Airflow
HOW IT DIFFERS
BR-VDX6940-144S-AC-R is the rear-to-front VDX 6940-144S: air enters at the non-port side and leaves through the ports, which Extreme calls port-side exhaust. Its sister BR-VDX6940-144S-AC-F is the same 2U chassis with the airflow reversed. The specifications give the 144S four fan assemblies, a maximum airflow of 370 cmh (218 CFM) and a maximum noise of 87 dBA. Choose it when the power supplies face the cold aisle.
TECHNICAL DETAILS
Brand: Brocade Product line: VDX 6940 Series Compatible with: Rear-to-front power supplies and fans only. The 144S draws up to 3.288 A at 100 VAC per supply in the maker's maximum test, and its two supplies share the load while both keep their fans running. Uplinks: 12x 40GbE QSFP+ Total ports: 108 Fastest port: 40GbE Rack units: 2U Airflow: Back-to-front Power input: AC Throughput: 2.88 Tbps / 2.16 Bpps
MAKER'S DOCUMENT
https://documentation.extremenetworks.com/networkos/HW/vdx6940-technicalspecifications.pdf
WHAT'S INCLUDED
One (1) Brocade BR-VDX6940-144S-AC-R. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed BR-VDX6940-144S-AC-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
BR-VDX6940-144S-AC-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
