BR-VDX6940-36Q-AC-R

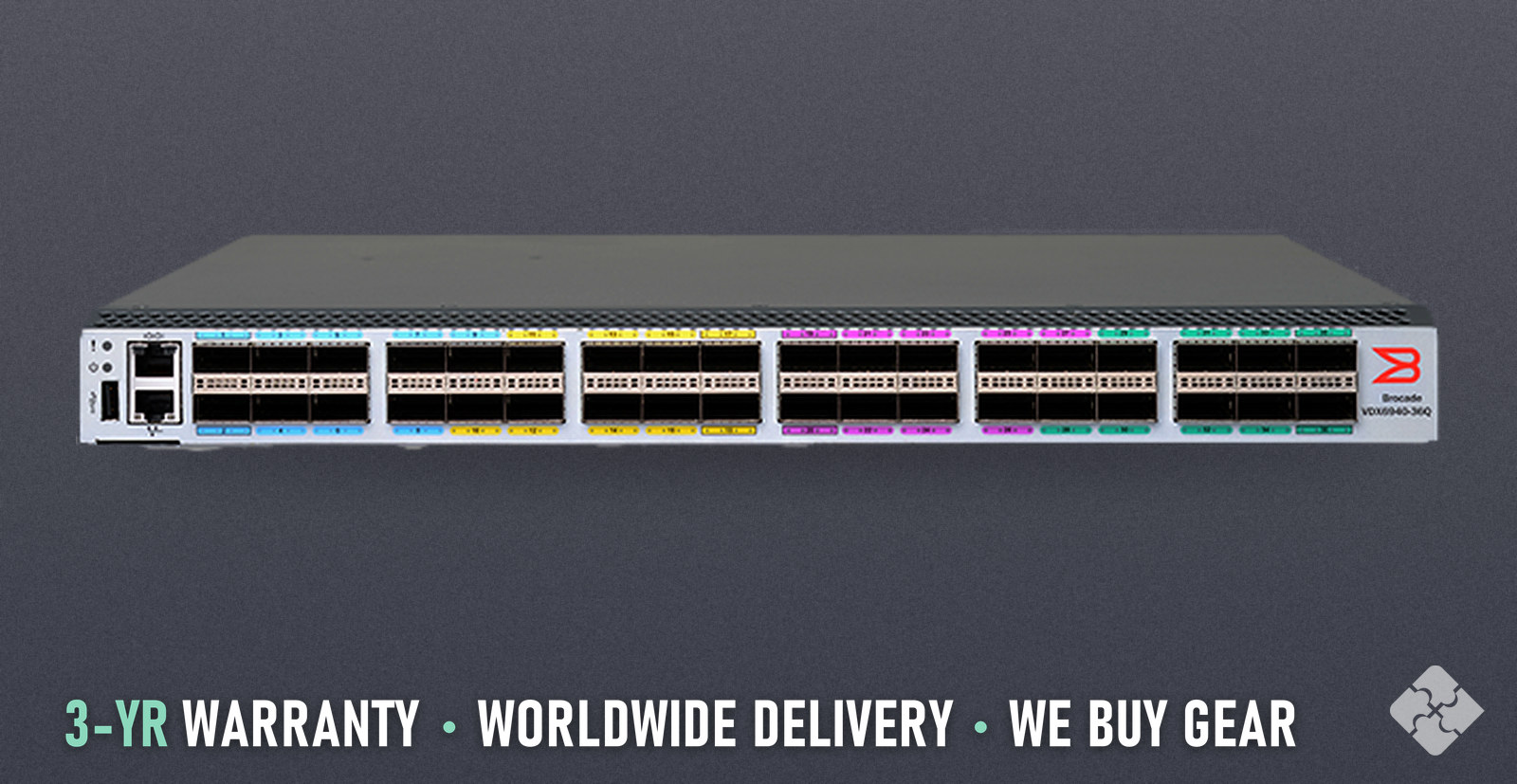

BR-VDX6940-36Q-AC-R Brocade Switch, Refurbished, 36x 40GbE QSFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
BR-VDX6940-36Q-AC-R, in stock, ships worldwide.
$1,600
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- BR-VDX6940-36Q-AC-R
- Network Ports
- 36 × 40GbE
- Connectors
- QSFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Brocade BR-VDX6940-36Q-AC-R is a switch with 36 ports of 40GbE QSFP+, back-to-front airflow and AC power. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cables to match.
Brocade BR-VDX6940-36Q-AC-R / VDX 6940-36Q Switch, 36x 40GbE QSFP+ Ports (breakout to up to 144x 10GbE), Dual 500W AC PSU (redundant), Port-Side Exhaust Airflow
HOW IT DIFFERS
BR-VDX6940-36Q-AC-R has back-to-front airflow; its sister BR-VDX6940-36Q-AC-F has front-to-back airflow.
TECHNICAL DETAILS
Brand: Brocade Product line: Brocade VDX 6940-36Q (ExtremeSwitching) Management ports: RJ-45 10/100/1000 Mbps Ethernet out-of-band management port Rack units: 1U Airflow: Port-side exhaust (rear-to-front) Power input: AC Dimensions: 4.4 cm / 1.73 in x 44 cm / 17.32 in x 43.8 cm / 17.22 in Weight: 8.9 kg / 19.6 lb empty; 10.1 kg / 22.3 lb fully loaded Fans: Five field-replaceable fan assemblies, each with two fans, 10 per system Power supplies: Two internal, redundant, field-replaceable, load-sharing AC or DC Input voltage: 100 - 240 VAC (nominal); 90 - 264 VAC (range) Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: -25°C to 70°C (-13°F to 158°F) Operating humidity: 10% to 85% at 40°C (104°F), non-condensing Operating altitude: 0 to 3000 m (9,842 ft.) Acoustic noise: Maximum: 88 dBA (8.8 Bels); Nominal: 71 dBA (7.1 Bels) CPU: 1.5 GHz P3041 Quad Core CPU Memory (DRAM): DDR3 SDRAM, 16 GB Flash storage: Boot Flash 4 MB; Compact Flash e-USB 16 GB Console port: One serial port used for console USB port: USB connector, used for data and firmware downloads Certifications: FCC Part 15, Subpart B (Class A); EN 55022 (CE mark) (Class A)
MAKER'S DOCUMENT
https://documentation.extremenetworks.com/networkos/HW/vdx6940-technicalspecifications.pdf
WHAT'S INCLUDED
One (1) Brocade BR-VDX6940-36Q-AC-R. Includes a rack-mount kit and the power cables to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed BR-VDX6940-36Q-AC-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
BR-VDX6940-36Q-AC-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
¿Tiene consultas? Llame al 415-626-4231 o escriba a sales@townsendnetworks.com. Le responderá una persona real que conoce el hardware, no un centro de llamadas.
