DCS-7050SX3-48C8-R
DCS-7050SX3-48C8-R Arista Switch, Back-to-Front, Used, 48x 1/10GbE SFP+ and 8x 100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
DCS-7050SX3-48C8-R, in stock, ships worldwide.
$6,295
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- DCS-7050SX3-48C8-R
- Network Ports
- 48 × 1/10GbE
- Connectors
- SFP+, QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

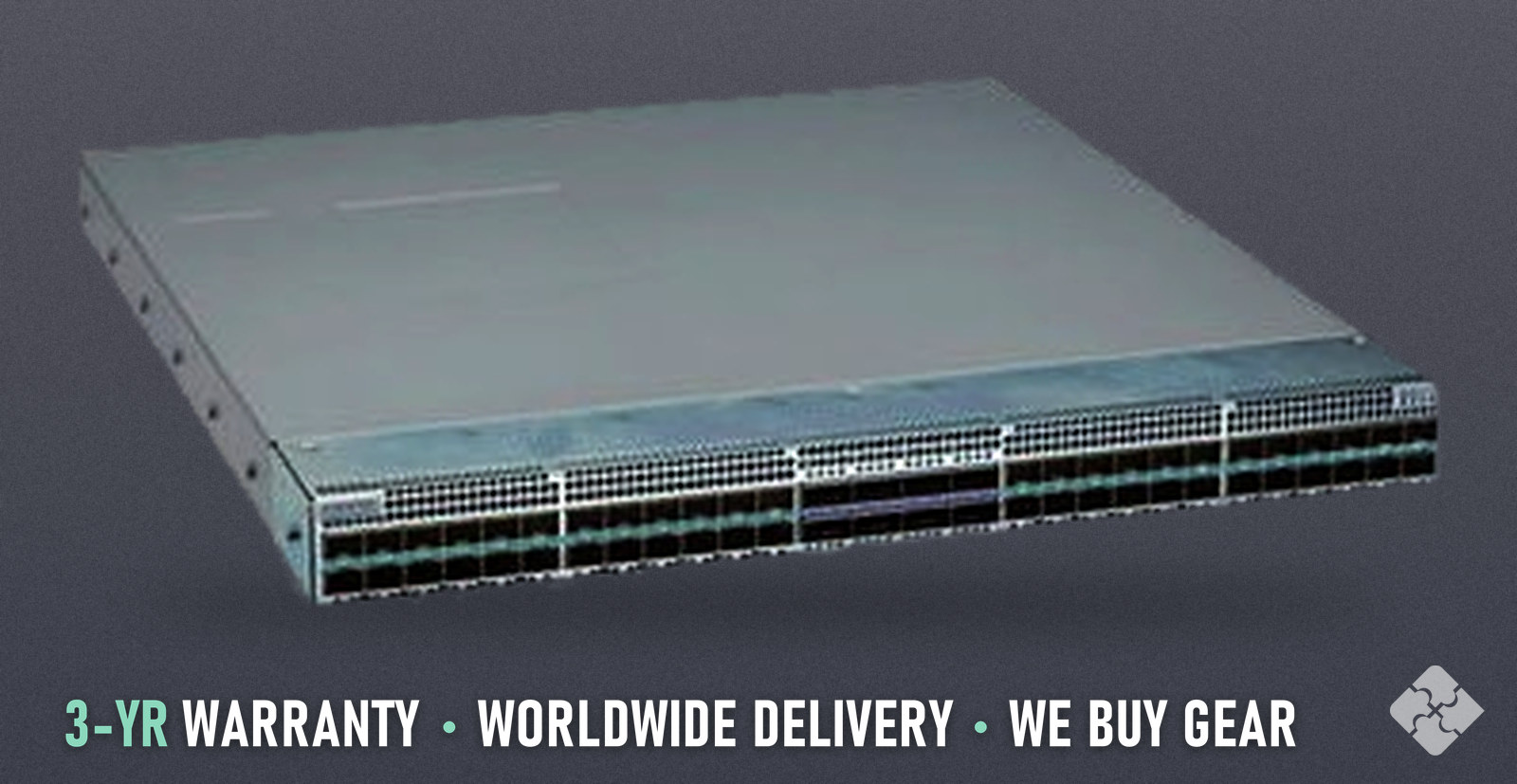

The Arista DCS-7050SX3-48C8-R is a switch from the Arista 7050SX3 family with 48 ports of 1/10GbE SFP+, 8 ports of 100GbE QSFP28, back-to-front airflow and AC power. It runs Arista EOS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Arista DCS-7050SX3-48C8-R / 7050X3 Series data center switch, 48x 1/10GbE SFP+ + 8x 40/100GbE QSFP28, rear-to-front (port-side exhaust) airflow, 2.56Tbps switching capacity, 1RU
HOW IT DIFFERS
DCS-7050SX3-48C8-R has back-to-front airflow; its sister DCS-7050SX3-48C8-F has front-to-back airflow.
TECHNICAL DETAILS
Brand: Arista Family: 7050SX3 Uplinks: 8x 40/100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Management ports: 1 Operating system: Arista EOS Rack units: 1RU Airflow: Back-to-front Power input: AC Throughput: 2.56 Tbps switching capacity Dimensions: 17.3 x 1.75 x 18.4 in (44 x 4.4 x 46.8 cm), W x H x D Weight: 21 lbs (9.45kgs) Fans: 2 (1+1 redundant) Power supplies: 2 (1+1 redundant) Power draw (typical): 106W Power draw (maximum): 285W Operating temperature: 0 to 40°C (32 to 104°F) Storage temperature: -40 to 70°C (-40 to 158°F) Operating humidity: 5 to 90% (listed as Relative Humidity) Operating altitude: 0 to 10,000 ft, (0-3,000m) CPU: Quad-Core x86 Memory (DRAM): 8 GB Flash storage: 8 GB MAC addresses: 288K MAC entries IPv4 routes: 360K IPv4 Routes VLANs: 4096 VLANs Jumbo frames: 9216 Bytes Packet buffer: 32 MB (Dynamic Buffer Allocation) Latency: 800 ns Console port: 1 (RJ-45) USB port: 1 Certifications: BSMI (Taiwan); FCC Class A (United States); ICES-003 (Canada); CE (European Union)
MAKER'S DOCUMENT
https://www.arista.com/assets/data/pdf/Datasheets/7050X3-Datasheet.pdf
WHAT'S INCLUDED
One (1) Arista DCS-7050SX3-48C8-R. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed DCS-7050SX3-48C8-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
DCS-7050SX3-48C8-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What ports does the DCS-7050SX3-48C8-R have? The DCS-7050SX3-48C8-R has 48 × 1/10GbE, with uplinks of 8x 40/100GbE QSFP28 and 56 data ports in all. What is the throughput of the DCS-7050SX3-48C8-R? The DCS-7050SX3-48C8-R has a throughput of 2.56 Tbps switching capacity. Which way does the air flow on the DCS-7050SX3-48C8-R? The airflow of the DCS-7050SX3-48C8-R is back-to-front. What power does the DCS-7050SX3-48C8-R use? The DCS-7050SX3-48C8-R uses AC. How much power does the DCS-7050SX3-48C8-R draw? The typical power draw of the DCS-7050SX3-48C8-R is 106W, and its maximum is 285W. What are the size and weight of the DCS-7050SX3-48C8-R? The DCS-7050SX3-48C8-R measures 17.3 x 1.75 x 18.4 in (44 x 4.4 x 46.8 cm), W x H x D and weighs 21 lbs (9.45kgs).
WHAT BUYERS ASK
Can I get a price and the quantity available for the DCS-7050SX3-48C8-R? Yes. Use Request a quote on this page with the part number DCS-7050SX3-48C8-R and the quantity you need. A firm price and the quantity available come back, typically the same business day. Does the DCS-7050SX3-48C8-R ship to my address? Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise. What condition is the DCS-7050SX3-48C8-R in? The DCS-7050SX3-48C8-R on this page is Used, Tested & Guaranteed.
