DCS-7050SX3-48YC8-R
DCS-7050SX3-48YC8-R Arista Switch, Back-to-Front, Used, 48x 1/10/25GbE SFP28 and 8x 100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
DCS-7050SX3-48YC8-R, in stock, ships worldwide.
$7,065
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- DCS-7050SX3-48YC8-R
- Network Ports
- 48 × 1/10/25GbE
- Connectors
- SFP28, QSFP28
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

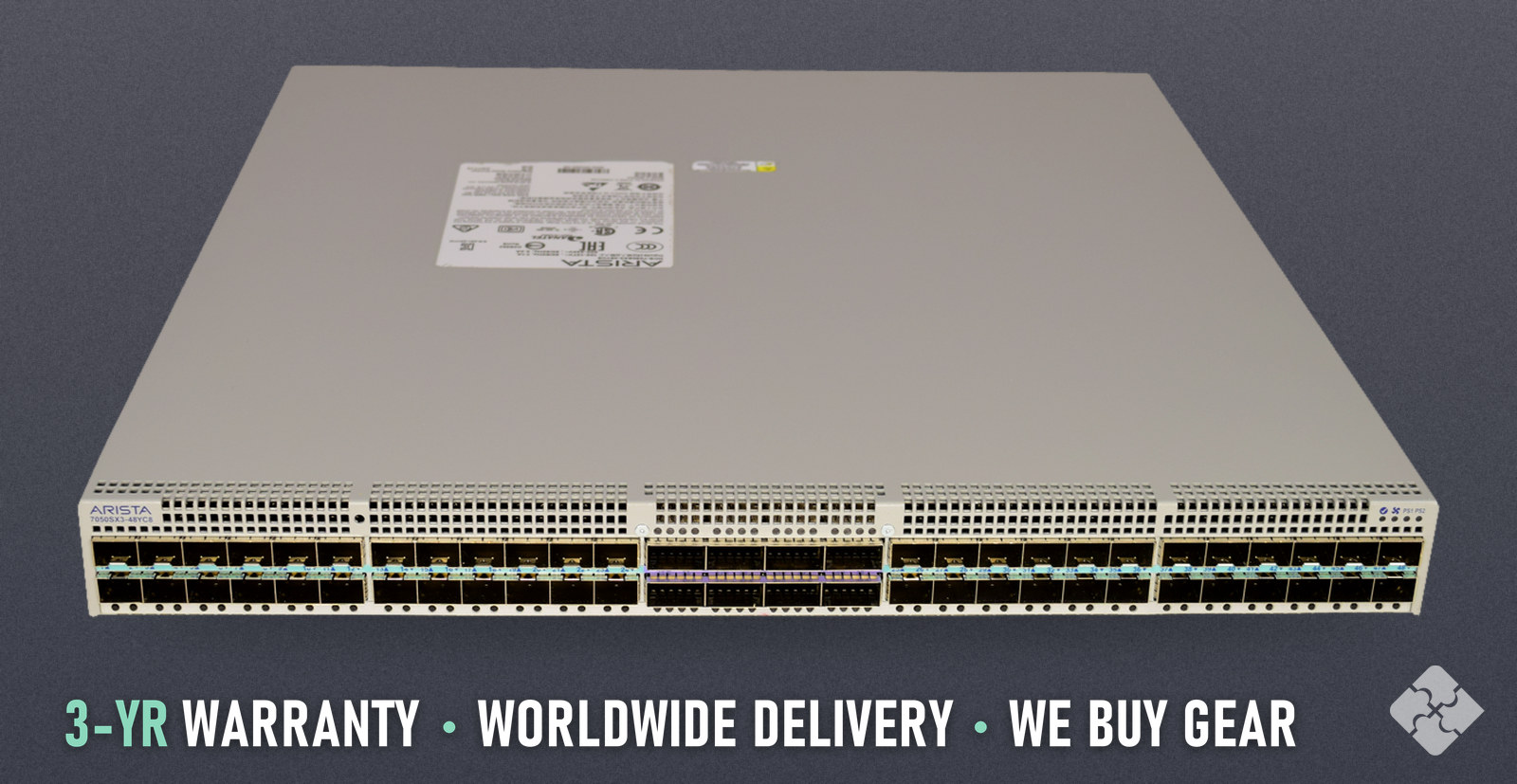

The Arista DCS-7050SX3-48YC8-R is a switch with 48 ports of 1/10/25GbE SFP28, 8 ports of 100GbE QSFP28, back-to-front airflow and AC power. It runs Arista EOS, with a 1U rack-mount form factor. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Arista DCS-7050SX3-48YC8-R / 7050X3, 48x25GbE SFP plus 8x100GbE QSFP100 switch, rear to front air, 2x AC, 4 Tbps, 1U
HOW IT DIFFERS
This DCS-7050SX3-48YC8-R listing is a used unit. The other DCS-7050SX3-48YC8-R listing is a new open box unit. DCS-7050SX3-48YC8-R is the 7050X3 with 48 25GbE SFP ports and 8 100GbE QSFP100 ports, ordered for rear-to-front airflow with 2 AC power supplies. Its spare parts take R codes: FAN-7000H-R for the fan module and PWR-500AC-R for the 500 W AC supply. Arista rates this model at 124 W typical and 301 W maximum, a little above the 7050SX3-48YC8C. Its sister DCS-7050SX3-48YC8-F is the front-to-rear version.
TECHNICAL DETAILS
Brand: Arista Product line: Arista 7050X3 Uplinks: 8x 100GbE QSFP28 Total ports: 56 Fastest port: 100GbE Management ports: 1 Operating system: Arista EOS Form factor: 1U rack-mount Rack units: 1RU Airflow: Back-to-front Power input: dual AC Throughput: 4.0 Tbps non-blocking, 1 Bpps, 800 ns cut-through Dimensions: 17.3 x 1.75 x 18.4 in (44 x 4.4 x 46.8 cm), W x H x D Weight: 21 lbs (9.45kgs) Fans: 2 (1+1 redundant) Power supplies: 2 (1+1 redundant) Power draw (typical): 124W Power draw (maximum): 301W Operating temperature: 0 to 40˚C (32 to 104˚F) Storage temperature: -40 to 70˚C (-40 to 158˚F) Operating humidity: 5 to 90% (listed as Relative Humidity) Operating altitude: 0 to 10,000 ft, (0-3,000m) CPU: Quad-Core x86 Memory (DRAM): 8 GB Flash storage: 8 GB MAC addresses: 288K MAC entries IPv4 routes: 360K IPv4 Routes VLANs: 4096 VLANs Jumbo frames: 9216 Bytes Packet buffer: 32 MB (Dynamic Buffer Allocation) Latency: 800 ns Console port: 1 (RJ-45) USB port: 1 Certifications: BSMI (Taiwan); FCC Class A (United States); ICES-003 (Canada); CE (European Union)
MAKER'S DOCUMENT
https://www.arista.com/assets/data/pdf/Datasheets/7050X3-Datasheet.pdf
WHAT'S INCLUDED
One (1) Arista DCS-7050SX3-48YC8-R. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed DCS-7050SX3-48YC8-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
DCS-7050SX3-48YC8-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What ports does the DCS-7050SX3-48YC8-R have? The DCS-7050SX3-48YC8-R has 48 × 1/10/25GbE, with uplinks of 8x 100GbE QSFP28 and 56 data ports in all. What is the throughput of the DCS-7050SX3-48YC8-R? The DCS-7050SX3-48YC8-R has a throughput of 4.0 Tbps non-blocking, 1 Bpps, 800 ns cut-through. Which way does the air flow on the DCS-7050SX3-48YC8-R? The airflow of the DCS-7050SX3-48YC8-R is back-to-front. What power does the DCS-7050SX3-48YC8-R use? The DCS-7050SX3-48YC8-R uses dual AC. How much power does the DCS-7050SX3-48YC8-R draw? The typical power draw of the DCS-7050SX3-48YC8-R is 124W, and its maximum is 301W. What are the size and weight of the DCS-7050SX3-48YC8-R? The DCS-7050SX3-48YC8-R measures 17.3 x 1.75 x 18.4 in (44 x 4.4 x 46.8 cm), W x H x D and weighs 21 lbs (9.45kgs).
WHAT BUYERS ASK
Can I get a price and the quantity available for the DCS-7050SX3-48YC8-R? Yes. Use Request a quote on this page with the part number DCS-7050SX3-48YC8-R and the quantity you need. A firm price and the quantity available come back, typically the same business day. Pages never print a unit count. Does the DCS-7050SX3-48YC8-R ship to my address? Ground shipping within the US is free. Faster services, including overnight, are charged at the carrier's rate, shown at checkout before payment. Worldwide delivery is available on request, and international buyers cover import duties and taxes unless quoted otherwise. What condition is the DCS-7050SX3-48YC8-R in? The DCS-7050SX3-48YC8-R on this page is Used, Tested & Guaranteed.
