DCS-7260CX3-64-R

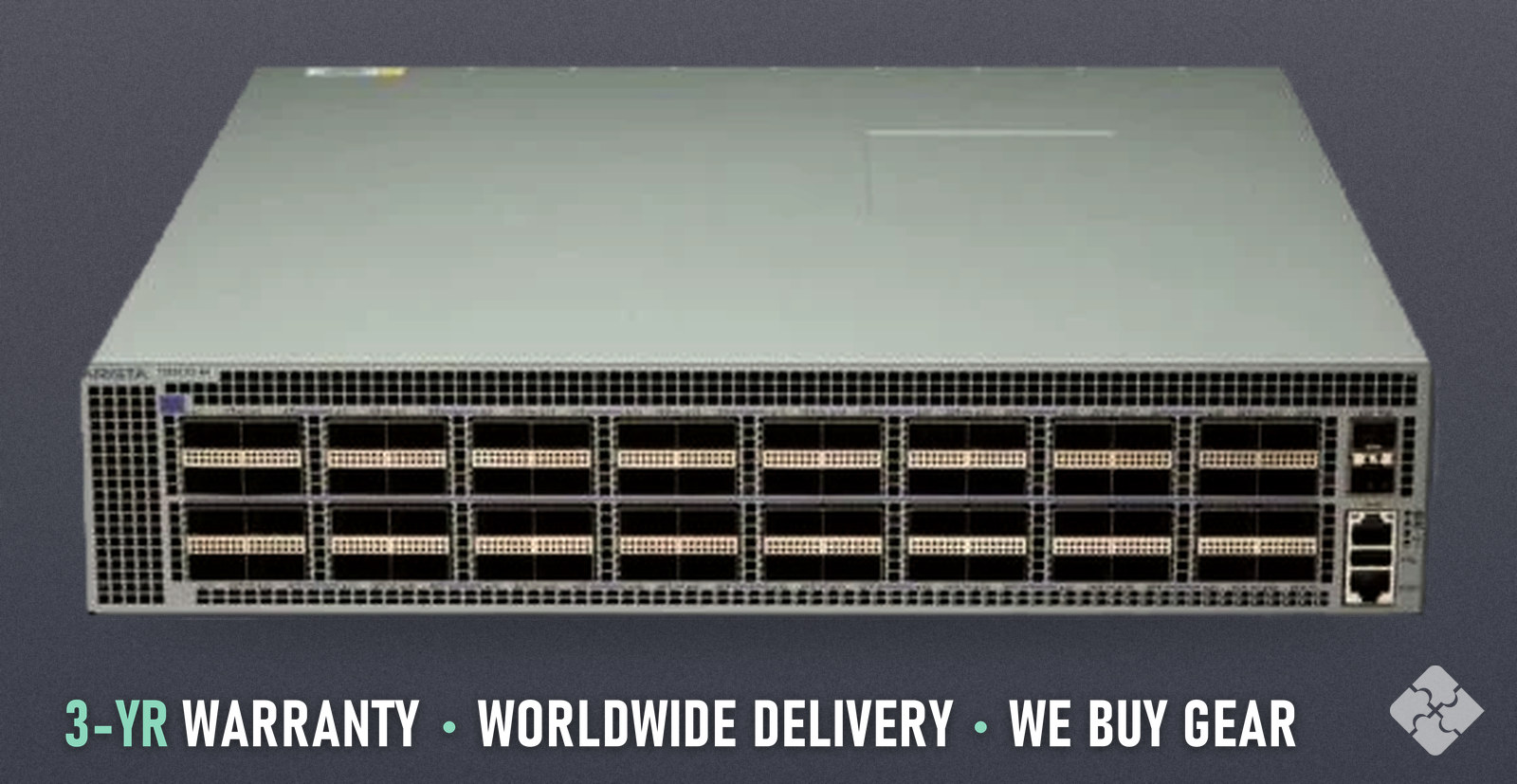

DCS-7260CX3-64-R Arista Switch, Back-to-Front, Used, 64x 40/100GbE QSFP28
Used, tested & guaranteedEn existencia
Condition: Used, Tested & Guaranteed
DCS-7260CX3-64-R, in stock, ships worldwide.
$9,995
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- DCS-7260CX3-64-R
- Network Ports
- 64 × 40/100GbE
- Connectors
- QSFP28, SFP+
- Type
- Switch
- Condition
- Used, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía
The Arista DCS-7260CX3-64-R is a switch from the Arista 7260CX3 family with 64 ports of 40/100GbE QSFP28 and back-to-front airflow. A separate 2x 1/10GbE SFP+ port is for management. It is a Layer 3 managed platform that runs Arista EOS. This unit is used: inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
DCS-7260CX3-64-R 64x 100GB QSFP28 2x 10GB SFP+ B-F Airflow Switch
HOW IT DIFFERS
DCS-7260CX3-64-R is the 2RU 7260X3 with 64 100GbE QSFP ports and 2 SFP+ ports, ordered for rear-to-front air with 2 AC supplies. The rear-to-front spares are FAN-7002-R for the fan module and PWR-1900AC-R for the 1900 Watt AC power supply. Its sister DCS-7260CX3-64-F moves air front-to-rear.
TECHNICAL DETAILS
Brand: Arista Family: 7260CX3 Management ports: 1 x 10/100/1000 management port Layer: Layer 3 (managed) Operating system: Arista EOS Rack units: 2 RU Airflow: Rear-to-front: intake at the power-supply/fan side, exhaust at the port side (blue PSU and fan handles) Power input: 2x PWR-745AC-R 745W AC, 1+1 redundant hot-swap, included; switch draws 314W typical / 616W max Throughput: 12.8 Tbps full duplex (6.4 Tbps) / 4.2 Bpps, 450 ns latency, 42 MB dynamic packet buffer Dimensions: 19 x 3.5 x 18 inches (48.3 x 8.8 x45.7 cm), W x H x D Weight: 34lbs (15.6kg) Fans: 4 (N+1 redundant), hot-swappable; fan tray FAN-7002-F/R Power supplies: 2 (1+1 redundant), hot-swap; PWR-745AC-F/R or PWR-1900-DC-F/R Power draw (typical): 314 W (measured at 25C ambient with 50% load and DAC cables) Power draw (maximum): 616 W (measured at 40C with 100% load and maximum power optical transceivers) Operating temperature: 0 to 40°C (32 to 104°F) Storage temperature: -40 to 70°C (-40 to 158°F) Operating altitude: 0 to 10,000 ft, (0-3,000m) CPU: Dual-Core x86 Memory (DRAM): 8 Gigabytes (System Memory) Flash storage: 30 Gigabytes MAC addresses: 264K MAC entries IPv4 routes: 180K IPv4 Routes; 200K IPv4 Host Routes Jumbo frames: 9216 Bytes Packet buffer: 42 MB (Dynamic Buffer Allocation) Latency: 450 ns Console port: 1 x RS-232 serial (RJ-45) USB port: 1
MAKER'S DOCUMENT
https://www.arista.com/assets/data/pdf/Datasheets/7260X3_Datasheet.pdf
WHAT'S INCLUDED
One (1) Arista DCS-7260CX3-64-R. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Used, Tested & Guaranteed DCS-7260CX3-64-R was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
DCS-7260CX3-64-R has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
WHAT BUYERS ASK
Can I get a price and the quantity available for the DCS-7260CX3-64-R? Yes. Use Request a quote on this page with the part number DCS-7260CX3-64-R and the quantity you need. A firm price and the quantity available come back, typically the same business day. Does the DCS-7260CX3-64-R ship to my address? Yes. Orders ship within the US, and worldwide on request. International buyers cover import duties and taxes unless quoted otherwise. What condition is the DCS-7260CX3-64-R in? The DCS-7260CX3-64-R on this page is Used, Tested & Guaranteed.
