EX2300-48MP
EX2300-48MP Juniper Switch, Refurbished, 48x 1GbE PoE+ RJ45 (16 × 2.5GbE) and 6x 10GbE SFP+
Refurbished, tested & guaranteedEn existencia
Condition: Refurbished, Tested & Guaranteed
EX2300-48MP, in stock, ships worldwide.
$1,875
¿Prefiere orden de compra o transferencia bancaria? También las aceptamos. Solo pídalo.
- Model
- EX2300-48MP
- Network Ports
- 48 × 1GbE (16 × 2.5GbE)
- Connectors
- RJ45, SFP+
- Type
- Switch
- Condition
- Refurbished, tested & guaranteed
Probado en nuestras instalaciones por técnicos certificados antes de enviarse. Términos de la garantía

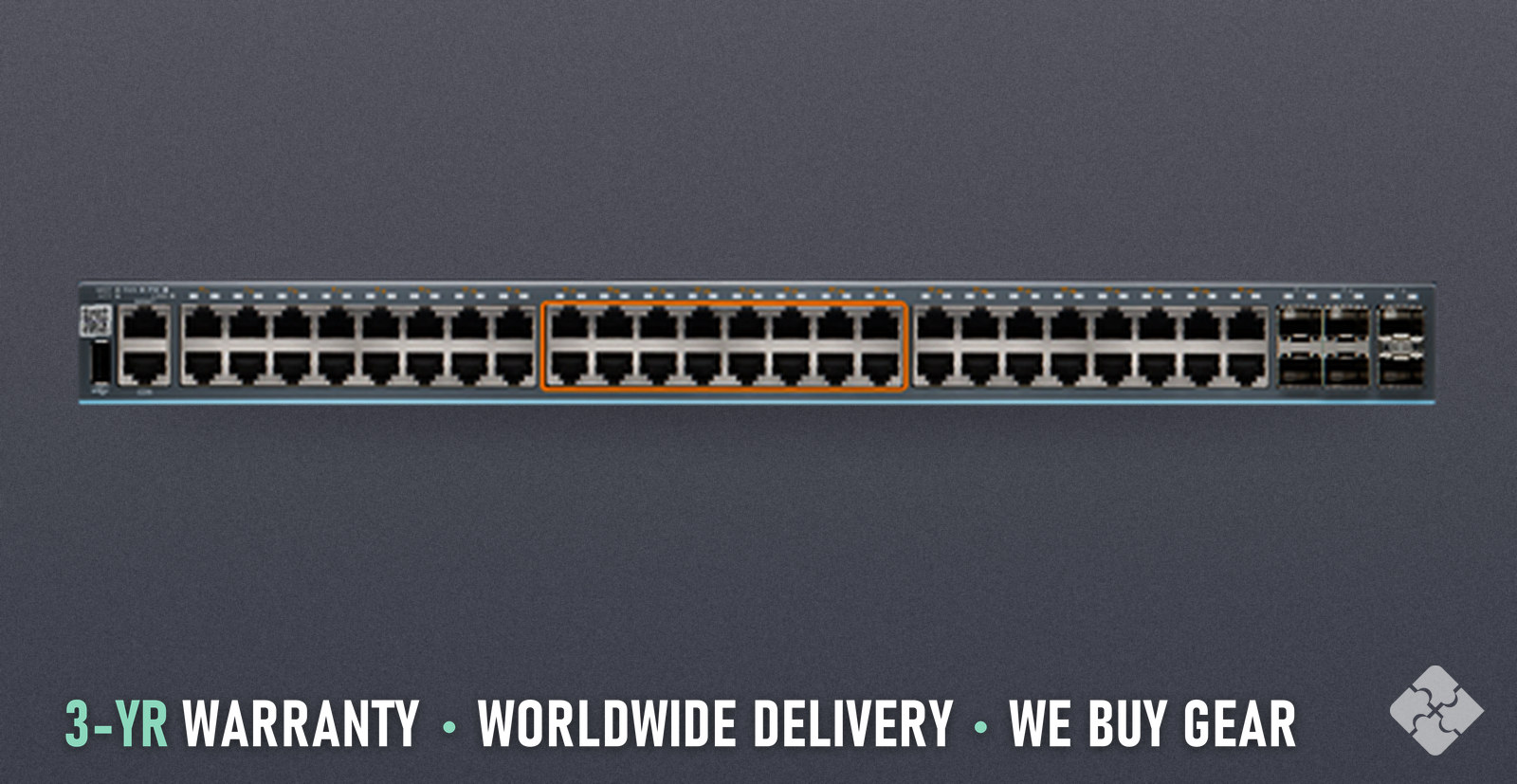

The Juniper EX2300-48MP is a switch from the Juniper EX2300 family with 48 ports of 1GbE PoE+ RJ45 (16 × 2.5GbE) and 6 ports of 10GbE SFP+. It runs Junos OS. This unit is refurbished (used): inspected, powered on and functionally tested by Townsend Networks technicians before listing. One switch per order, with a rack-mount kit and the power cable(s) to match.
Juniper EX2300-48MP / 48-Port PoE+ Multigigabit Switch, 32x 1GbE RJ45 + 16x 100M/1G/2.5GbE RJ45, 6x 1/10GbE SFP/SFP+ uplinks, 750W PoE budget
TECHNICAL DETAILS
Brand: Juniper Family: EX2300 Uplinks: 6x 1/10GbE SFP+ Total ports: 54 Fastest port: 10GbE Management ports: Out-of-band Ethernet management port PoE: Yes PoE standard: 802.3at PoE budget: 750 W Operating system: Junos OS Rack units: 1U Airflow: Side-to-side: four fans along the right side panel Dimensions: H 1.75 in (4.45 cm) x W 17.4 in (44.19 cm) x D 14.5 in (36.83 cm) Weight: 14.33 lb (6.5 kg) Power supplies: Built in along the rear panel, with an AC power cord inlet Input voltage: 100 through 240 V AC, 50/60 Hz nominal Power draw (maximum): 90 W AC (input power without PoE) Operating temperature: 32° to 113° F (0° to 45° C) Storage temperature: -40° to 158° F (-40° to 70° C) Operating humidity: 10% to 85% (noncondensing) Operating altitude: up to 13,000 ft (3962 m) at 40° C according to GR-63 Acoustic noise: 45.8 dB CPU: 1.25GHz ARM CPU Flash storage: 8 GB Switching capacity: 132 Gbps (unidirectional)/264 Gbps (bidirectional) Forwarding rate: 130 Mpps (wire speed) MAC addresses: 16,000 (in hardware) IPv4 routes: 512 prefixes; 4,096 host routes (unicast, in hardware) IPv6 routes: 512 prefixes; 2,048 host routes (unicast, in hardware) VLANs: 4093 (2044 active VLAN) Jumbo frames: 9216 bytes Stacking: Virtual Chassis, up to four switches, 80 Gbps interconnect Console port: RJ-45 serial console port USB port: rear panel USB port Certifications: FCC 47CFR Part 15 Class A; EN 55022 Class A; ICES-003 Class A; VCCI Class A
MAKER'S DOCUMENT
https://www.juniper.net/gb/en/products/switches/ex-series/ex2300-ethernet-switch-datasheet.html
WHAT'S INCLUDED
One (1) Juniper EX2300-48MP. Includes a rack-mount kit and the power cable(s) to match the switch.
CONDITION & TESTING
Condition: Refurbished, Tested & Guaranteed EX2300-48MP was tested by Townsend Networks technicians before listing. The test process is on /testing-process.
WARRANTY & RETURNS
EX2300-48MP has a 3-year warranty and a 30-day return policy. DOA units are replaced or refunded. Full terms are on /warranty and /legal/refunds.
QUESTIONS AND ANSWERS
What power does the EX2300-48MP use? The EX2300-48MP uses a PoE budget of 750 W and 802.3at. What software does the EX2300-48MP run? The EX2300-48MP runs Junos OS. What ports does the EX2300-48MP have? The EX2300-48MP has 48 × 1GbE (16 × 2.5GbE), with uplinks of 6x 1/10GbE SFP+ and 54 data ports in all. Which way does the air flow on the EX2300-48MP? The airflow of the EX2300-48MP is side-to-side: four fans along the right side panel. How much power does the EX2300-48MP draw? The maximum power draw of the EX2300-48MP is 90 W AC (input power without PoE). What are the size and weight of the EX2300-48MP? The EX2300-48MP measures H 1.75 in (4.45 cm) x W 17.4 in (44.19 cm) x D 14.5 in (36.83 cm) and weighs 14.33 lb (6.5 kg).
